KA2156 datasheet, PDF - EEWORLD Datasheet

KA2156: DescriptionLINEAR INTEGRATED CIRCUIT; CategoryOther integrated circuit (IC) Consumption circuit; File Size292KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KA2156 Overview

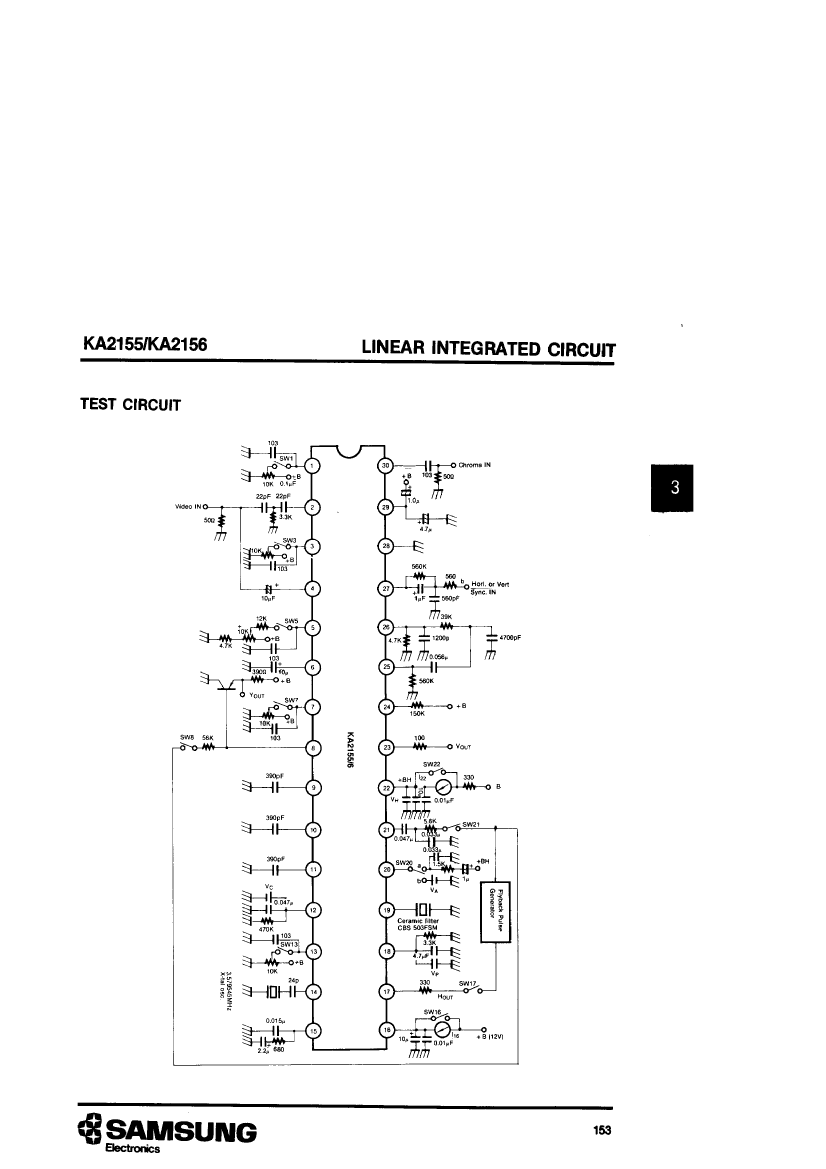

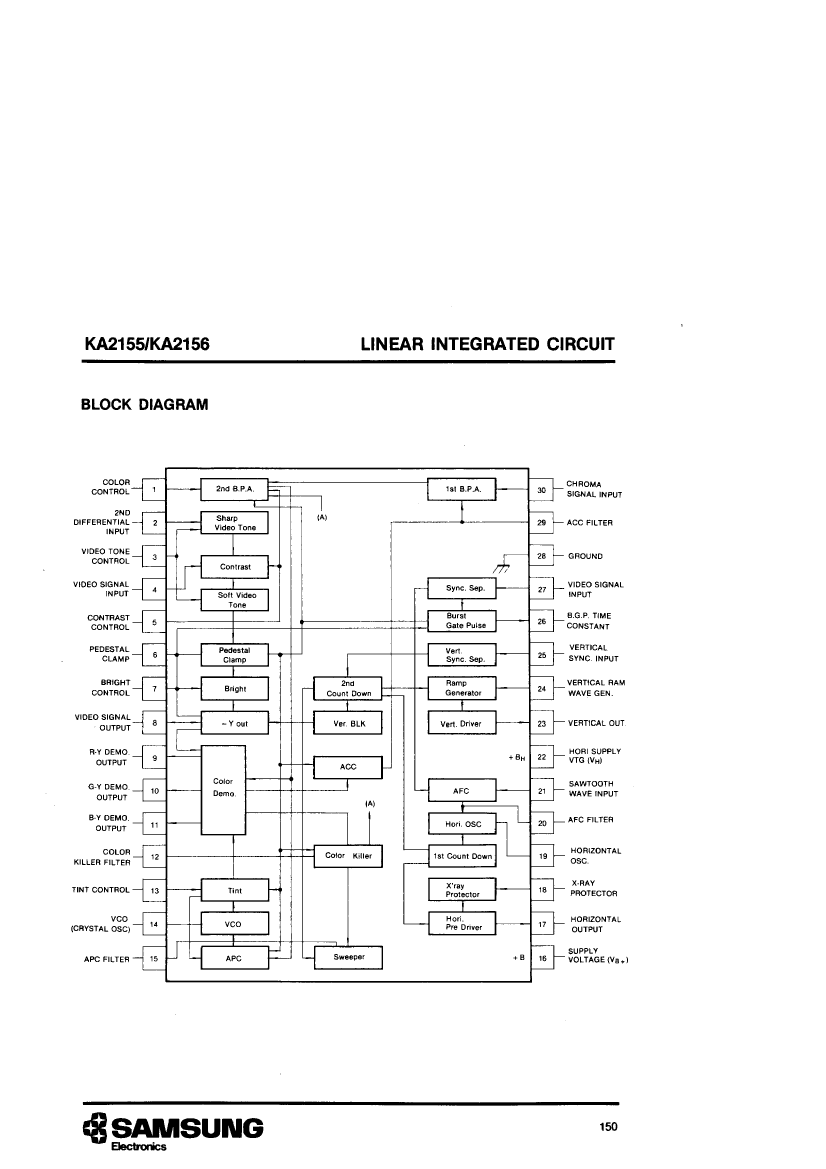

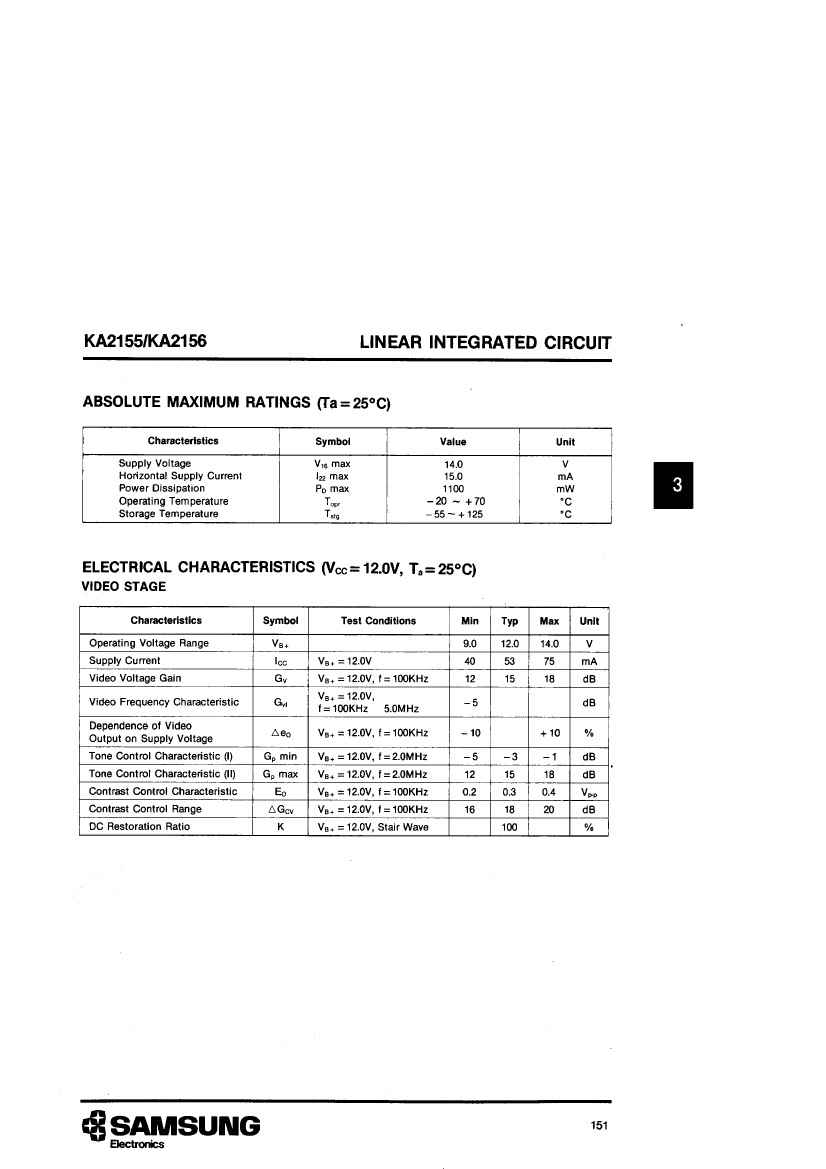

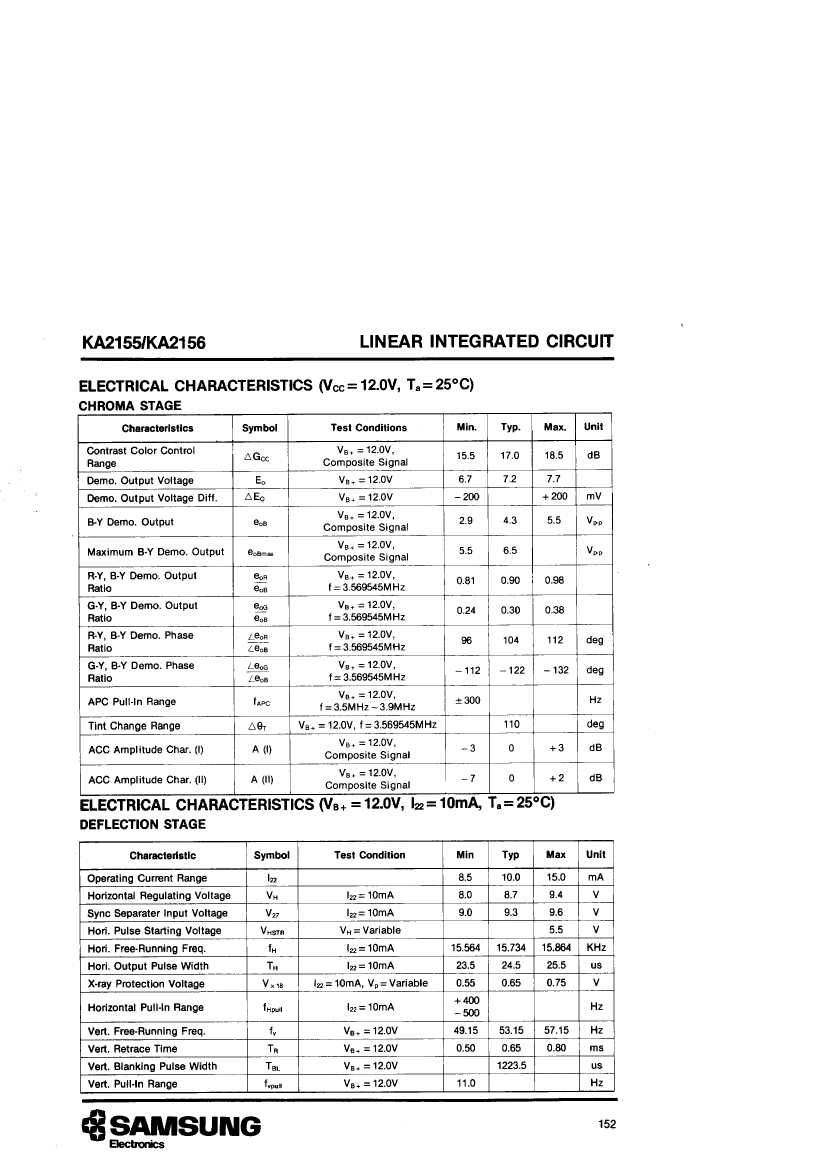

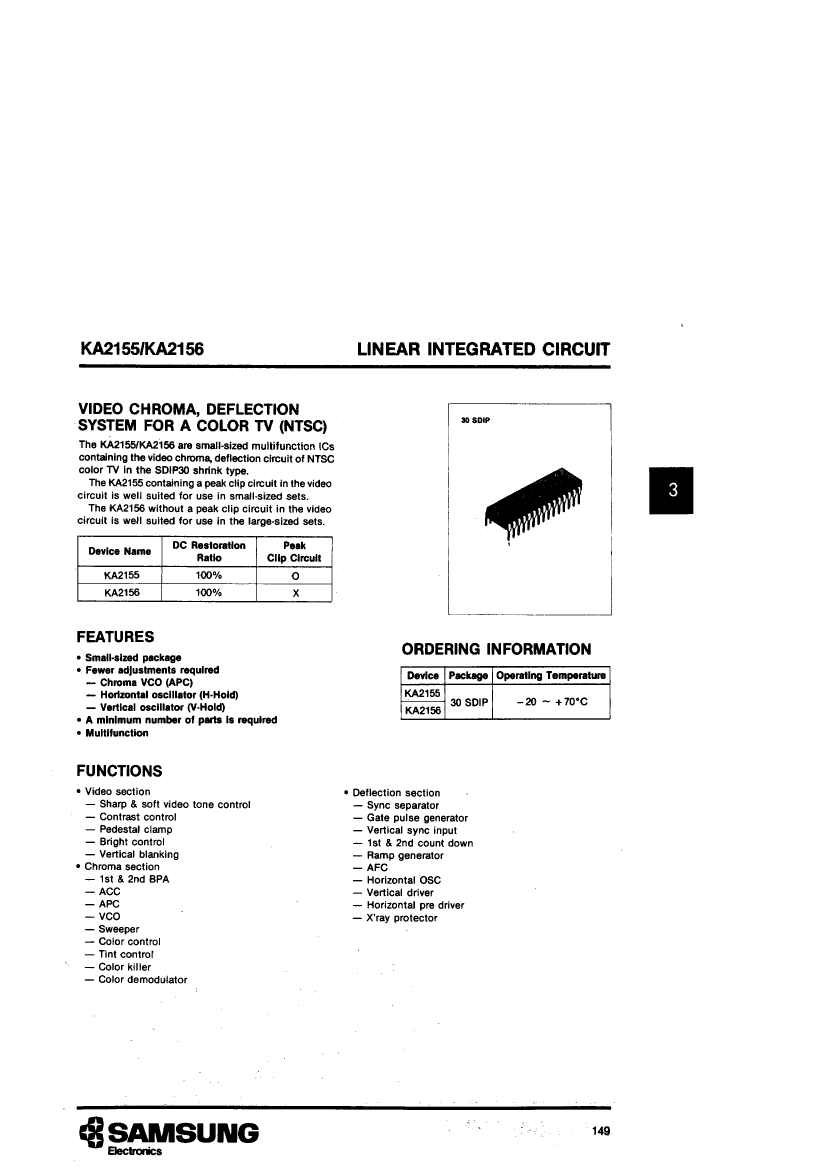

LINEAR INTEGRATED CIRCUIT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	SDIP, SDIP30,.4
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T30
JESD-609 code	e0
Number of terminals	30
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP30,.4
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	12 V
Certification status	Not Qualified
Maximum slew rate	75 mA
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL

	KA2156	KA2155
Description	LINEAR INTEGRATED CIRCUIT	LINEAR INTEGRATED CIRCUIT
Is it Rohs certified?	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG
package instruction	SDIP, SDIP30,.4	SDIP, SDIP30,.4
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T30	R-PDIP-T30
JESD-609 code	e0	e0
Number of terminals	30	30
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP
Encapsulate equivalent code	SDIP30,.4	SDIP30,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
power supply	12 V	12 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	75 mA	75 mA
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.78 mm	1.78 mm
Terminal location	DUAL	DUAL
