Plug - PP-H 2,5/ 1 - 3209866
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Push-in connection, Number of positions: 1, Cross section: 0.14 mm² - 4 mm²,
AWG: 26 - 12, Width: 5.2 mm, Height: 40.2 mm, Color: gray
Product Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
3.6 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
1
2.5 mm²
gray
PA
V0
Railway industry
Mechanical engineering
Plant engineering
Rated surge voltage
6 kV
12/15/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/3209866
Plug - PP-H 2,5/ 1 - 3209866
Technical data
General
Pollution degree
Overvoltage category
Insulating material group
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
3
III
I
IEC 61984
24 A (with 4 mm² conductor cross section)
24 A
500 V
nein
1
Dimensions
Width
Length
Height
5.2 mm
15.8 mm
40.2 mm
24.00 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Push-in connection
IEC 61984
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
8 mm ... 10 mm
A3
Standards and Regulations
Connection in acc. with standard
CSA
IEC 61984
12/15/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/3209866
Plug - PP-H 2,5/ 1 - 3209866
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / LR / GL / RS / ABS / NK / UL Recognized / cUL Recognized / BV / cUL Recognized / UL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
12/15/2015 Page 3 / 5
https://www.phoenixcontact.com/us/products/3209866
Plug - PP-H 2,5/ 1 - 3209866
Approvals
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
LR
GL
RS
ABS
NK
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
BV
12/15/2015 Page 4 / 5
https://www.phoenixcontact.com/us/products/3209866
Plug - PP-H 2,5/ 1 - 3209866
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
EAC
EAC
cULus Recognized

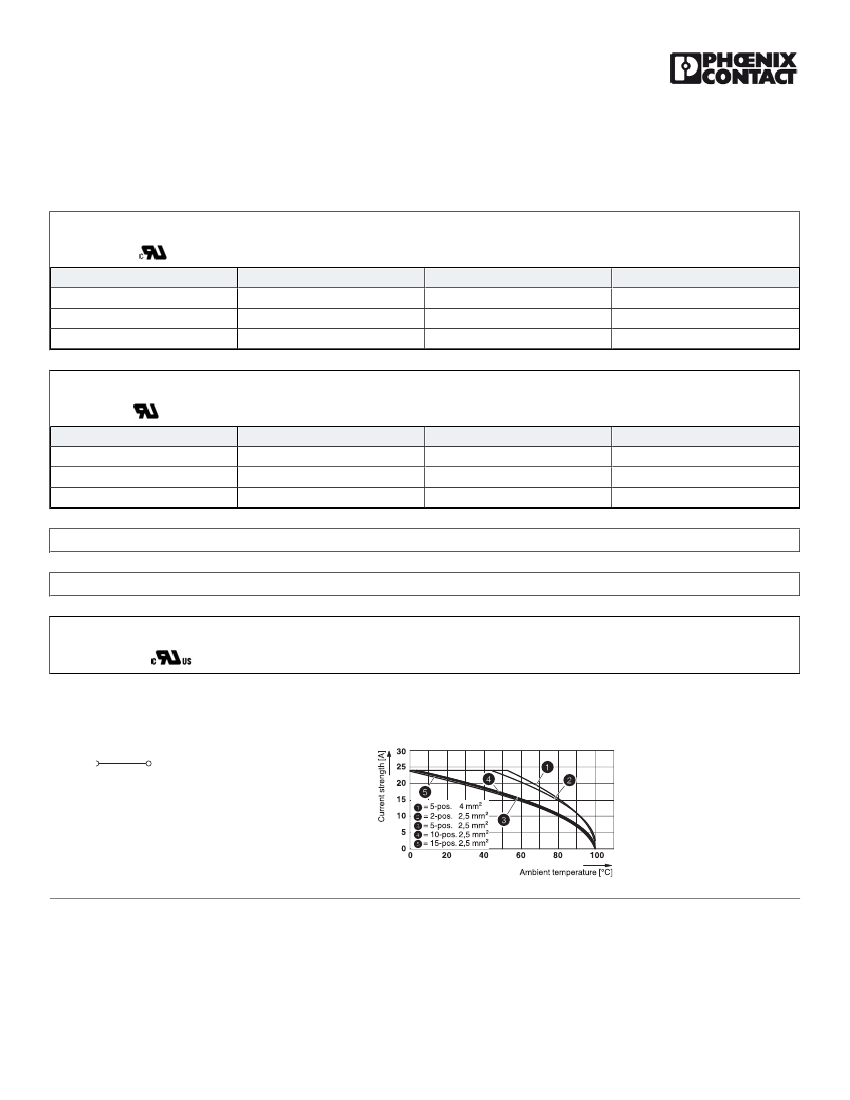

Drawings
Circuit diagram
Diagram
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
12/15/2015 Page 5 / 5
