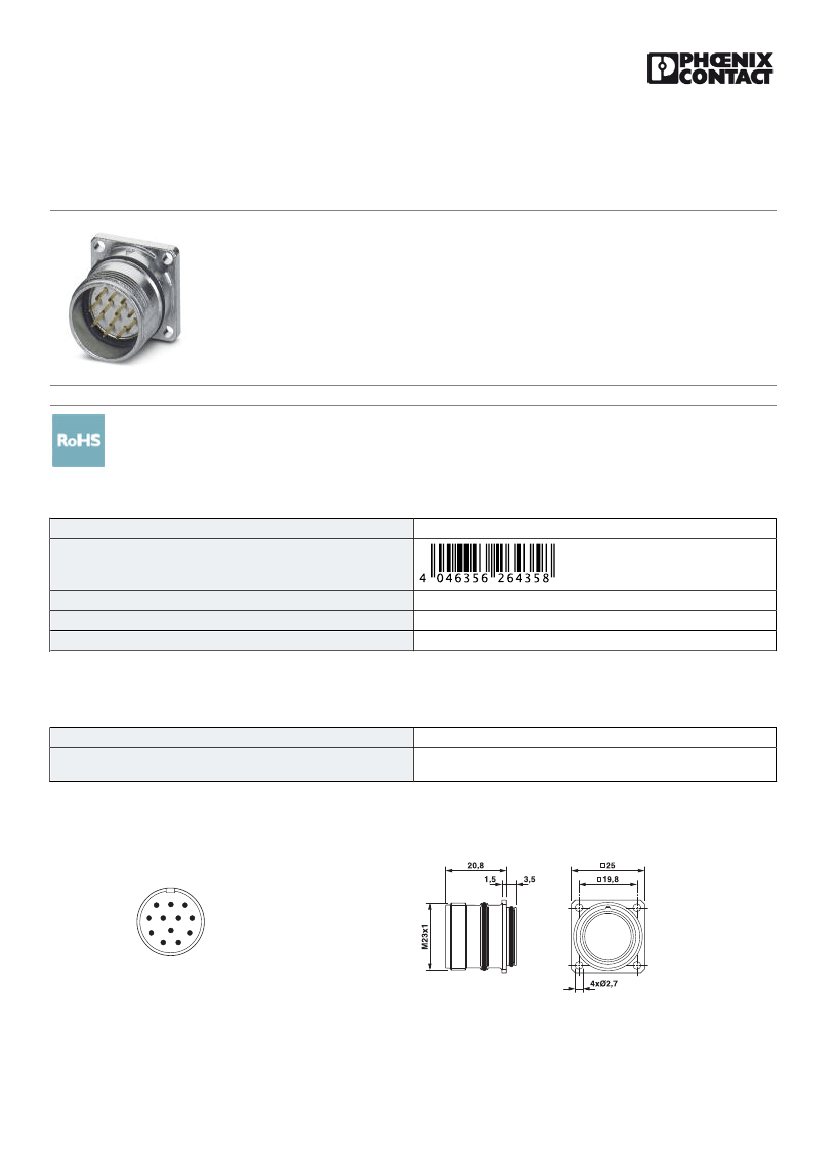

Device connector, front mounting - RC-12P1N8DWQ00 - 1610720
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Device connector for front wall, straight, shielded: yes, Screw locking, M23, Number of positions: 12, Type of
contact: Male connector, Crimp connection, Radial O-ring, 4xØ2,7, Panel thickness min.: 3 mm
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356264358
85366990
Made to Order (non-returnable)
40 STK
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
N
8
7
6
5
9
12 10
PO
11
4
3
1
2
Dimensional drawing
11/14/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1610720
Device connector, front mounting - RC-12P1N8DWQ00 - 1610720
Dimensional drawing
19,8±0,1
Ø2,7
1x15°
min. 3mm
Ø20+0,1
Installation dimensions
Flat gasket, radial O-ring
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
