System connectors - FLKM 4X14-PA-MA12/S100 - 2288464
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Front adapter, for Siemens SIMATIC® S5-95U and S5-100U I/O card 6ES5 482-8MA13 and S5-100U I/O card
6ES5 422-8MA11, 4 x 8 channels can be connected
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
117.8 GRM
85369010
Germany
1 pc
Technical data
General
Nominal voltage U
N
Max. perm. current (per branch)
Max. perm. current (separate power supply)
Channels which can be connected
Connection type, connector
Number of connectors
No. of positions, connector
Number of positions
Standards/regulations
< 50 V AC
60 V DC
0.5 A
4 A (per slip-on connection (L+n+1, L+n, M))
32
Flat-ribbon cable connector in acc. with IEC 60603-13
4
14
40
IEC 60664
IEC 60664 A
DIN VDE 0110
DIN VDE 0160 (in parts)
09/03/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2288464
System connectors - FLKM 4X14-PA-MA12/S100 - 2288464
Technical data
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27250313
27250313
27250313
27250313
27242208
27242208
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001423
EC001423
EC001423
EC001423
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
09/03/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2288464
System connectors - FLKM 4X14-PA-MA12/S100 - 2288464
Approvals
Approval details
UL Recognized
cUL Recognized
GOST
cULus Recognized
Drawings
09/03/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/2288464
System connectors - FLKM 4X14-PA-MA12/S100 - 2288464

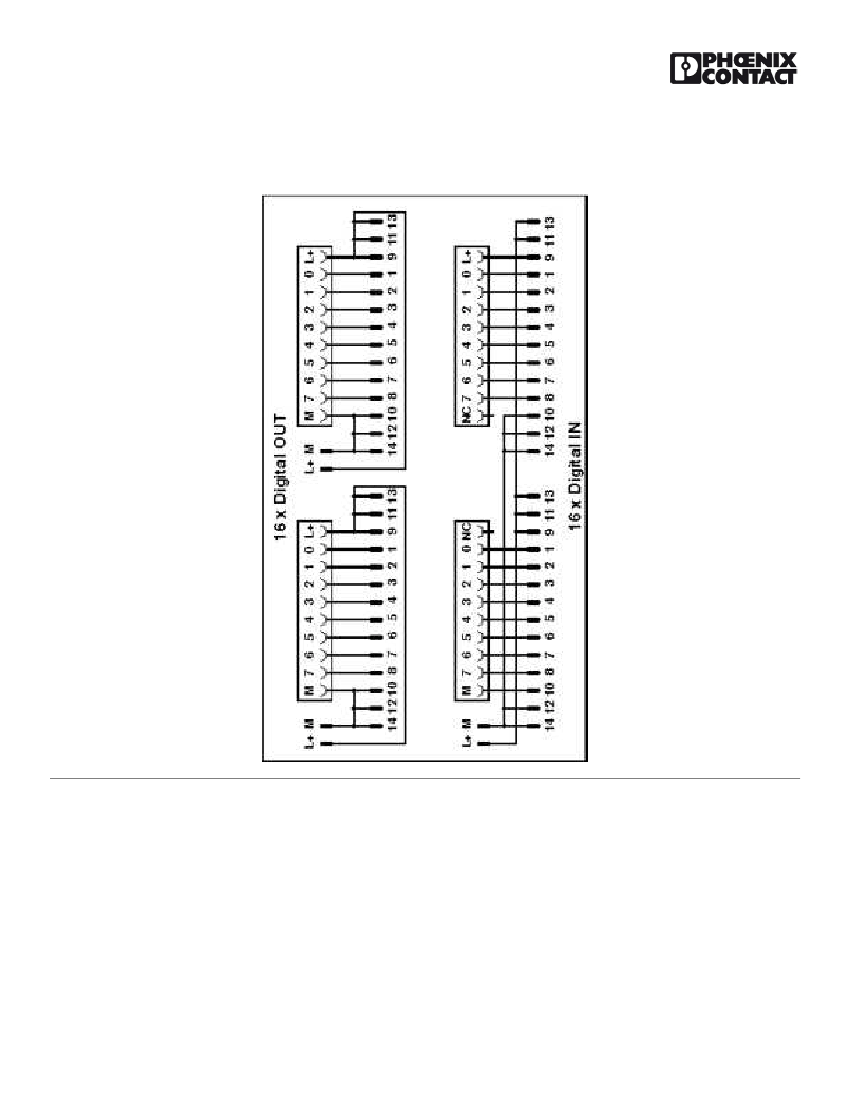

Circuit diagram
Phoenix Contact 2014 © - all rights reserved
