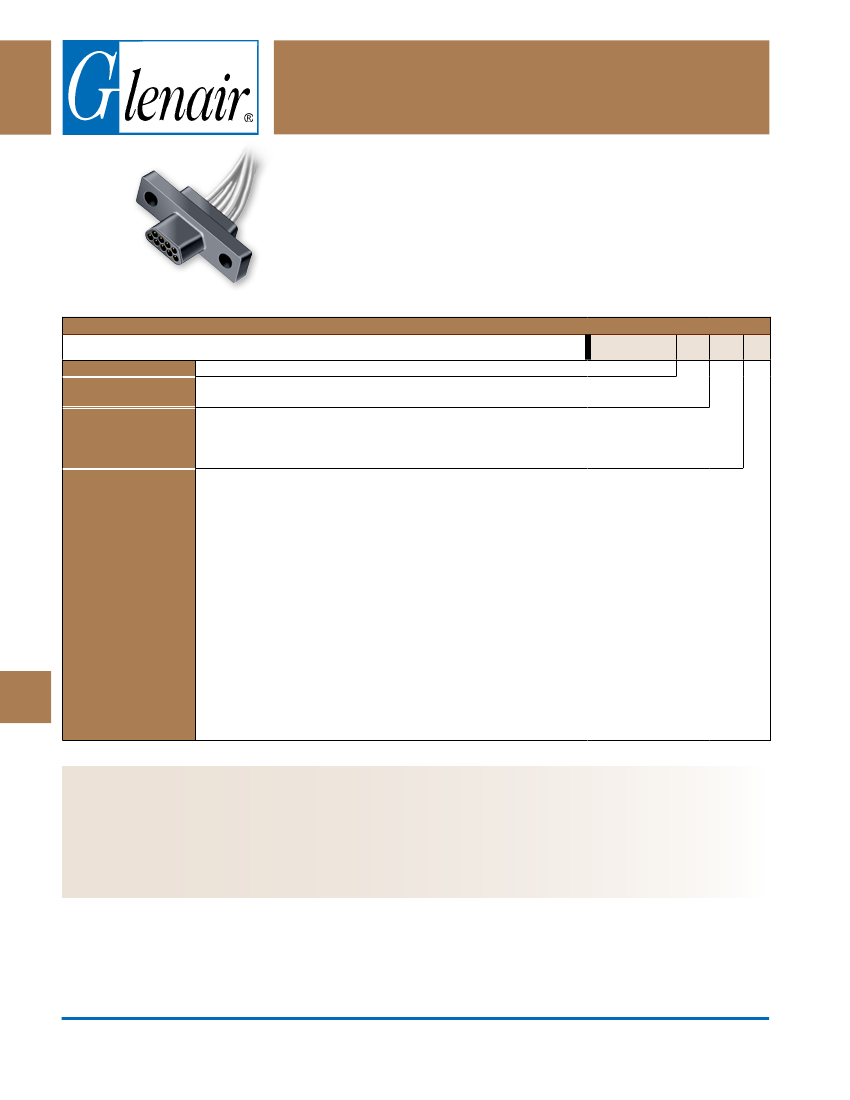

MIL-DTL-83513/08 & /09 Micro-D
Pre-Wired Crimp Terminated, Plastic Shell Connector
Micro-D Pre-Wired Pigtails
These connectors feature gold-plated TwistPin contacts and mil spec
crimp termination. 100% tested and backpotted, ready for use.
Choose the Wire Type To Fit Your Application
For lightest weight and smallest diameter, select M22759/33 space
grade insulated wire.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
© 2013 Glenair, Inc.
Wire Type
How To Order MIL-DTL-83513 Pre-Wired Plastic Shell Micro-D Connectors
Sample Part Number
Base Part Number
Slash Number
m83513/
M83513
/08
Pin Connector (Plug)
/09
Socket Connector (Receptacle)
A, B, C, D, E, F, G
(See Table I)
Codes A - H specify the shell size.
The number of contacts is shown below for reference.
A
-9
B
- 15
C
- 21
D
- 25
E
- 31
F
- 37
M22759/11-26 Teflon®-Insulated Hookup Wire
01
- 18 Inches (457mm), White
02
- 36 Inches (914mm), White
03
- 18 Inches (457mm), 10 Color Repeating
04
- 36 Inches (914mm), 10 Color Repeating
13
- 72 Inches (1829mm), White
14
- 72 Inches (1829mm), 10 Color Repeating
M22759/33-26 Irradiated Tefzel® Insulated Hookup Wire
09
- 18 Inches (457mm), White
10
- 36 Inches (914mm), White
11
- 18 Inches (457mm), 10 Color Repeating
12
- 36 Inches (914mm), 10 Color Repeating
15
- 72 Inches (1829mm), White
16
- 72 Inches (1829mm), 10 Color Repeating
25 AWG Single Strand Uninsulated Wire
05
- .500 Inch (12.7mm), Gold Plated
06
- 1.000 Inch (25.4mm), Gold Plated
07
- .500 Inch (12.7mm), Tin-Lead Plated(2)
08
- 1.000 Inch (25.4mm), Tin-Lead Plated(2)
09
-g
12
Shell Size
G
- 51
Application Notes
1. Intermatability: M83513 plastic shell connectors are not intermateable with metal shell M83513 connectors.
2. Tin-Plated Wire: Glenair M83513 connectors do not contain any components exceeding 97% tin.
3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to cause corrosion to
metal parts when stored in a sealed environment. This corrosion has been observed on M83513 connectors. Glenair has implemented a packaging
procedure to minimize or eliminate this problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper
envelope. M22759/33 continues to be the preferred wire for space applications.
