Part Number

Search

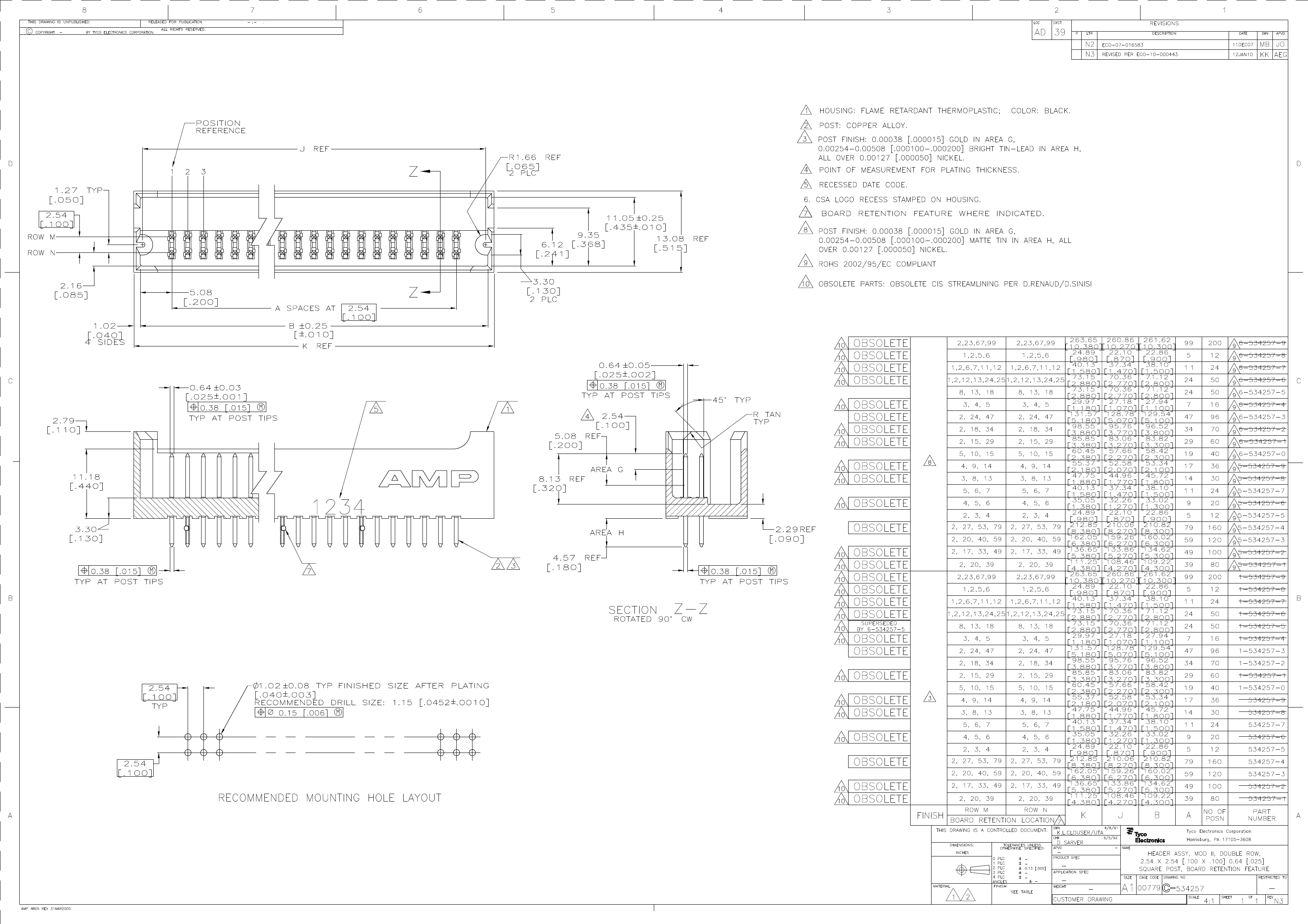

534257-7

Description
24 MODII 2PC SHRD HDR W/HLDWN
CategoryThe connector    The connector
File Size260KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

534257-7 Online Shopping

Suppliers Part Number Price MOQ In stock
534257-7 - - View Buy Now

534257-7 Overview

24 MODII 2PC SHRD HDR W/HLDWN

534257-7 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Other featuresAMPMODU, ACTION PIN
body width0.515 inch
subject depth0.55 inch
body length1.58 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability75 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.112 N
Insulation resistance103000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number534257
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness15u inch
polarization keyHOUSING SIDE
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.18 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts24
UL Flammability Code94V-0
Evacuation force-minimum value.2085 N
Base Number Matches1
