233-104-07NF15-35SN-02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 233-104-07NF15-35SN-02

233-104-07NF15-35SN-02: DescriptionCircular MIL Spec Connector; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

233-104-07NF15-35SN-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	233-104-07NF15-35SN-02	-	-	View	Buy Now

233-104-07NF15-35SN-02 Overview

Circular MIL Spec Connector

233-104-07NF15-35SN-02 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	13 weeks
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Connector type	CIRCULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	233-104-07
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

Bulkhead

Feed-Thrus

Connector Series

231

D38999 Series I Type

Shell Style

- Jam Nut Mount

Shell Size

Connector Type

104

Env. Bulkhead Feed-Thru

SHELL

SIZE

A THREAD

CLASS 2A

.688-24 UNEF

.813-20 UNEF

1.000-20 UNEF

1.125-18 UNEF

1.250-18 UNEF

1.375-18 UNEF

1.500-18 UNEF

1.625-18 UNEF

1.750-18 UNS

B DIA

MAX

.573(14.6)

.701(17.8)

.851(21.6)

.976(24.8)

1.101(28.0)

1.208(30.7)

1.333(33.9)

1.458(37.0)

1.583(40.2)

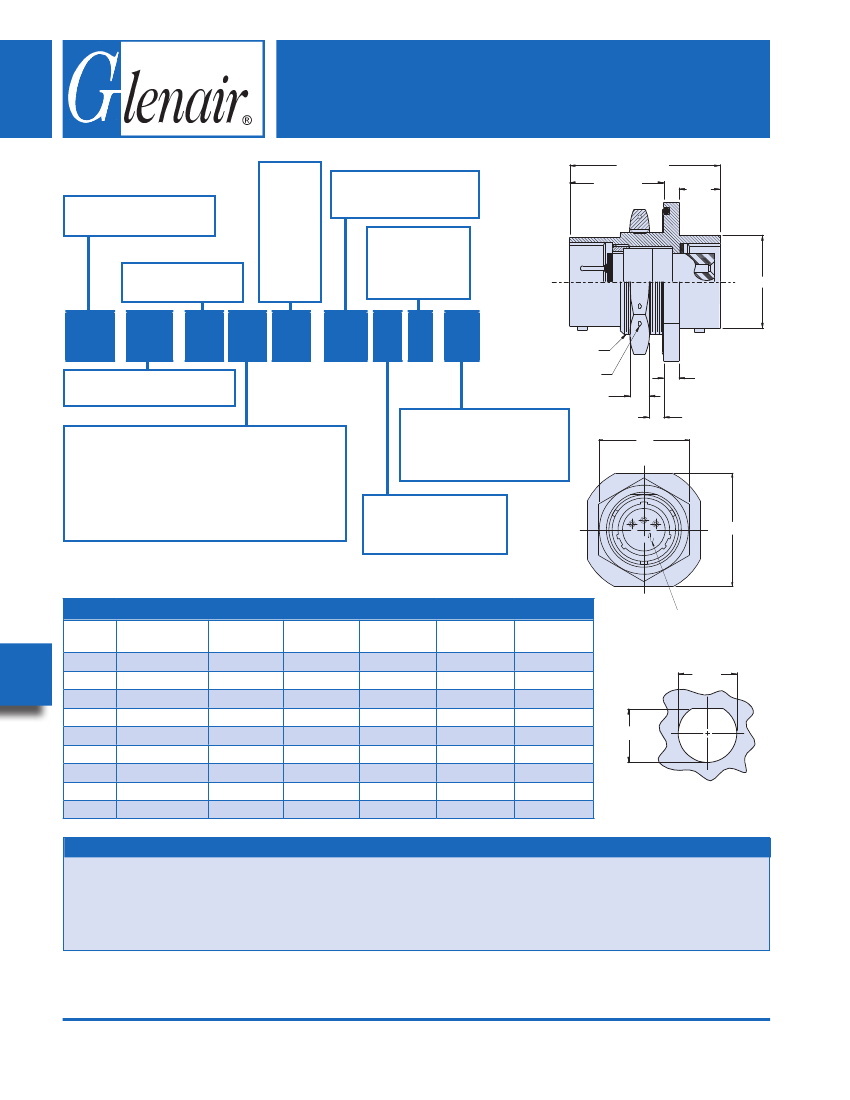

231-104-07

Jam Nut Environmental Bulkhead Feed-Thru

MIL-DTL-38999 Series I Type

2.540 Max

Insert Arrangement

Per MIL-DTL-38999 Series I

MIL-STD-1560

Alternate Key

Position

A, B, C, D

(N = Normal)

1.810 Max

.585

Ref

231

104

07 M 11

35 P N

A Thread

Hole for .032 Dia

Safety Wire, 3 Equally

Spaced

.125

.150 Max

Connector Material and Finish

- Aluminum / Electroless Nickel

- Aluminum / Zinc-Cobalt

- Cad / O.D. Over Electroless Nickel (1000hr Salt Spray)

- Aluminum Zinc-Nickel Olive Drab

- Aluminum / Ni-PTFE 1000 Hour Grey

- Aluminum / Pure Electrodeposited Aluminum

Panel Accomodation

- .0625″ (Min) .125″ (Max)

- .0625″ (Min) .250″ (Max)

- .0625″ (Min) .500″ (Max)

Panel

Accomodation

Contact Termination

- Pin on Jam Nut Side

- Socket on Jam Nut Side

TABLE I: CONNECTOR DIMENSIONS

HEX

.875(22.2)

1.000(25.4)

1.188(30.2)

1.312(33.3)

1.438(36.5)

1.562(39.7)

1.688(42.9)

1.812(46.0)

2.000(50.8)

FLATS

1.062(27.0)

1.250(31.8)

1.375(34.9)

1.500(38.1)

1.625(41.3)

1.812(46.0)

1.938(49.2)

2.062(52.4)

2.188(55.6)

E DIA

±.005(0.1)

.678(17.7)

.830(21.1)

1.015(25.8)

1.140(29.0)

1.265(32.1)

1.390(35.3)

1.515(38.5)

1.640(41.7)

1.765(44.8)

F +.000-.002

(0-.06)

.657(16.70)

.771(19.59)

.955(24.26)

1.085(27.56)

1.210(30.73)

1.335(33.91)

1.460(37.08)

1.585(40.26)

1.710(43.43)

Insert arrangement, per

MIL-C-38999, Series l

MIL-STD-1560

Dia

Recommended Panel Cut-Out

APPLICATION NOTES

Power to a given contact on one end will result in power to contact

directly opposite regardless of identification letter

Metric Dimensions (mm) are indicated in parentheses

Material/finish:

Shell, lockring, jam nut—Al alloy, See Table II Page D-5

Contacts—Copper alloy/gold plate

Insulators—High grade rigid dielectric/N.A.

Bayonet Pins—CRES/passivate

Seals—silicone/N.A.

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

F-4

233-104-07NF15-35SN-02 Related Products

	233-104-07NF15-35SN-02	233-104-07NF13-35PN-01	233-104-07M11-35SN-03	233-104-07NF17-08SN-03	231-104-07NF11-35SA-02
Description	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector JAM NUT ENV BLKHD FEEDTHRU SKT
Reach Compliance Code	not_compliant	not_compliant	compliant	-	not_compliant
Factory Lead Time	13 weeks	17 weeks 1 day	13 weeks	-	14 weeks
Other features	STANDARD: MIL-DTL-38999, POLARIZED	STANDARD: MIL-DTL-38999, POLARIZED	STANDARD: MIL-DTL-38999, POLARIZED	-	STANDARD: MIL-DTL-38999
Connector type	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	-	CIRCULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-MALE	MALE-MALE	FEMALE-MALE	-	FEMALE-FEMALE
Coupling type	THREADED	THREADED	THREADED	-	BAYONET
DIN compliance	NO	NO	NO	-	NO
empty shell	NO	NO	NO	-	NO
Filter function	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	-	NO
MIL compliance	YES	YES	YES	-	YES
Manufacturer's serial number	233-104-07	233-104-07	233-104-07	-	231-104-07
Mixed contacts	NO	NO	NO	-	NO
Installation type	PANEL	PANEL	PANEL	-	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	NICKEL	-	CADMIUM
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	-	ALUMINUM ALLOY
Total number of contacts	37	22	13	-	13
Base Number Matches	1	1	1	-	1
