2007883-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2007883-3

2007883-3: DescriptionIMP100S,H,V6P10C,UG,REW46,5.5; CategoryThe connector; File Size294KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2007883-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2007883-3	-	-	View	Buy Now

2007883-3 Overview

IMP100S,H,V6P10C,UG,REW46,5.5

2007883-3 Parametric

Parameter Name	Attribute value
Connector System	Board to Board
Line spacing	1.35 mm [ 0.053 in ]
Connector type	plug
with hood	Partially hooded
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Connector type	head
Signal arrangement	difference
Make first/break last	no
Number of signal positions	120
Stackable	no
Number of pairs	60
Number of Positions	180
Rows	18
Number of columns	10
Board-to-board configuration	vertical, right angle
PCB mounting direction	vertical
boot position	No boot
Number of grounding locations	60
Impedance (Ω)	100
Operating voltage (VDC)	30
Operating voltage (VAC)	30
Data rate (Gb/s)	20 – 25
Number of differential pairs per column	6
Terminal base material	copper alloy
Terminal base material	nickel
Terminal length	5.5 mm [ .217 in ]
Contact Current Rating (Max) (A)	.75
PCB terminal termination area plating material surface coating	matte
Terminal contact plating thickness	.76 µm [ 29.92 µin ]
Terminal termination area plating material	tin
Terminal design	double beam
Terminal contact plating material	gold
Terminal layout	Direct plug-in
Terminal type	Press fit
PCB terminal termination area plating thickness	.76 – 1.52 µm [ 30 – 60 µin ]
Terminal conduction (typ.)	signal (data)
Base plate material thickness	1.27 µm [ 50 µin ]
Terminal type	Pin
PCB Termination Methods	Through hole - solderless connection
PCB mounting fixation type	Function/Standard-compliant tail
PCB installation and fixation	with
rail hardware	Without
joint alignment	with
Joint alignment type	polarization
Connector mounting type	board mounting
joint fixation	Without
Centerline (Pitch)	1.9 mm [ .075 in ]
End wall position	right
Shell color	black
Shell material	LCP - GF (Liquid Crystal Polymer)
PCB Hole Diameter	.46 mm [ .018 in ]
length	20.3 mm [ .799 in ]
tail length	1.4 mm [ .055 in ]
width	28.9 mm [ 1.138 in ]
PCB thickness (recommended) (mm)	1
high	11.95 mm [ .47 in ]
Working group temperature range	-55 – 85 °C [ -67 – 185 °F ]
Circuit Application	Signal
Applicable to	Female components
Obtain CSA certification	yes
UL rating	Recognized
UL file number	E28476
UL flammability rating	UL 94V-0
Encapsulation method	box and tube, tube

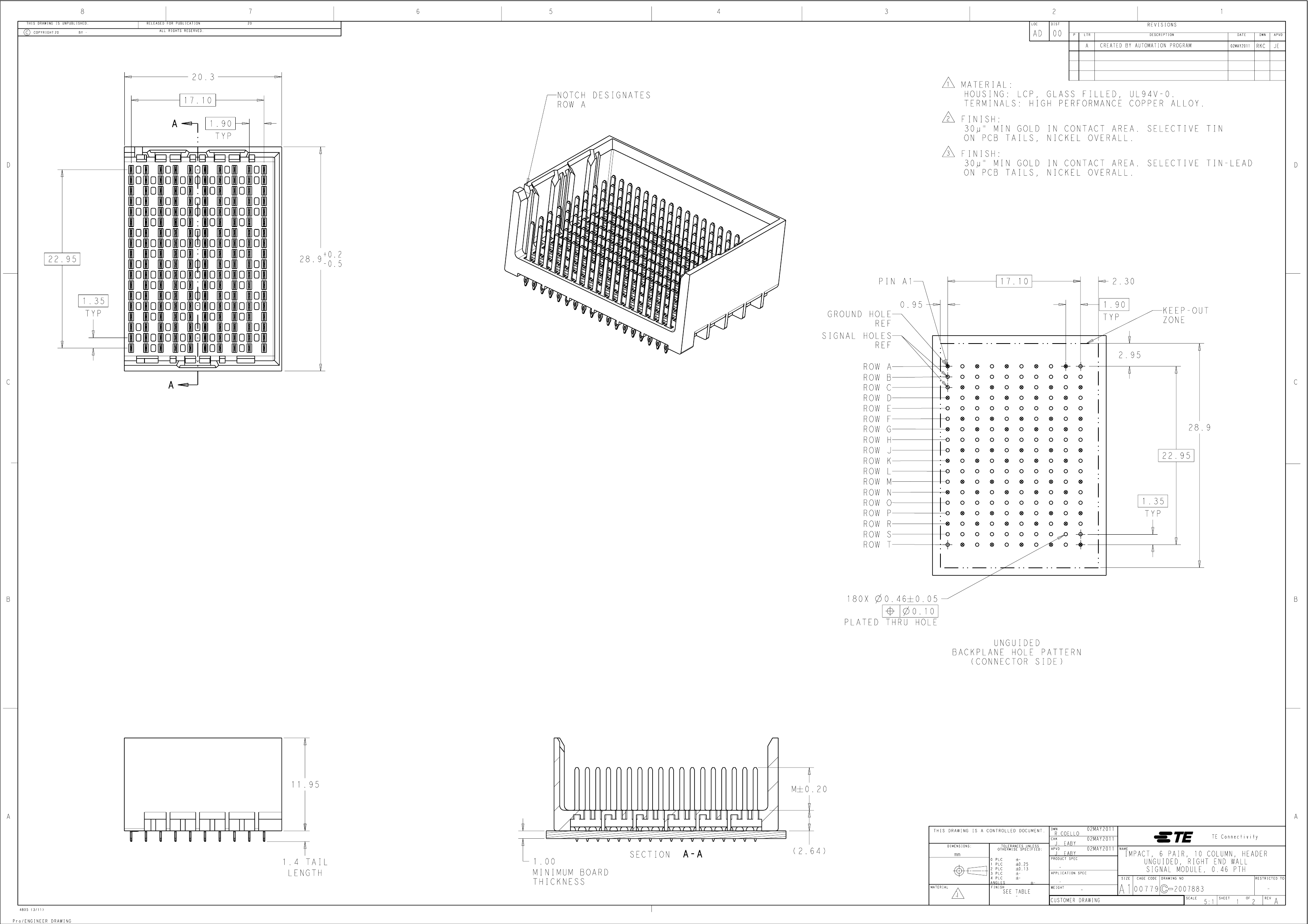

Preview

Download Datasheet

View All
