505278-2633

Description
Board to Board u0026 Mezzanine Connectors 70P RECPT 3.0 STK HT W/O METAL FITTING
CategoryThe connector
File Size40KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

505278-2633 Online Shopping

Suppliers Part Number Price MOQ In stock
505278-2633 - - View Buy Now

505278-2633 Overview

Board to Board u0026 Mezzanine Connectors 70P RECPT 3.0 STK HT W/O METAL FITTING

505278-2633 Parametric

Parameter NameAttribute value
Product CategoryFFC & FPC Connectors
ManufacturerMolex
RoHSDetails
ProductConnectors
Number of Positions26 Position
Pitch0.5 mm
Termination StyleSMD
Mounting AngleRight Angle
Contact LocationBottom Contact
Contact PlatingTin
Current Rating500 mA
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
PackagingCut Tape
PackagingReel
Actuation TypeZIF
Contact MaterialPhosphor Bronze
Gender-
Housing MaterialLiquid Crystal Polymer (LCP)
Mounting Style-
Factory Pack Quantity3000
Voltage Rating50 V
Unit Weight0.007459 oz

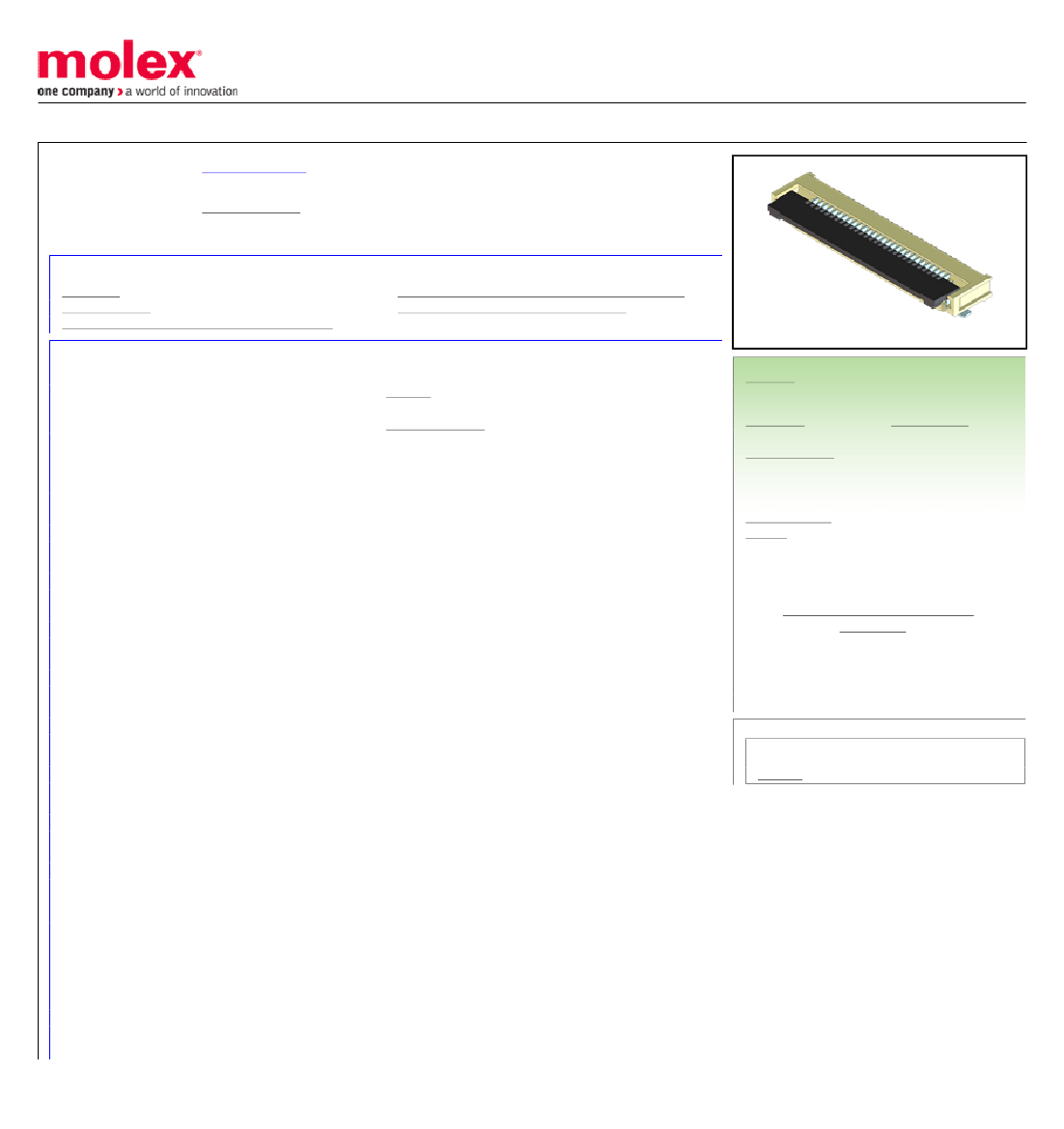

This document was generated on 10/10/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5052782633
Active
FFC-FPC (SMT)
0.50mm Pitch Easy-On Type FFC/FPC Connector, 1.90mm Height, Single Bottom
Contact (FS19), Right Angle, Surface Mount, ZIF, 26 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 5052780000-000 (PDF)
General
Product Family
Series
Comments
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification 5052789200-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
FFC/FPC Connectors
505278
Black Actuator
FFC-FPC (SMT)
Easy-On
889056034289
26
Beige
Bottom
20
90° Angle
1.90mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
Liquid Crystal Polymer
211.470/mg
1
Right Angle
No
Yes
Embossed Tape on Reel
0.50mm
0.50mm
1.016µm
1.016µm
Yes
No
-40°C to +85°C
Surface Mount
FFC/FPC
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
505278 Series
5052789200-200
5052780000-000
5052780000-000, 5052781000-000
