3601-2-07-01-00-00-08-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 3601-2-07-01-00-00-08-0

3601-2-07-01-00-00-08-0: DescriptionIC u0026 Component Sockets PIN CRIMP # 20 Sn/Pb over Ni; CategoryThe connector terminals; File Size415KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

3601-2-07-01-00-00-08-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3601-2-07-01-00-00-08-0	-	-	View	Buy Now

3601-2-07-01-00-00-08-0 Overview

IC u0026 Component Sockets PIN CRIMP # 20 Sn/Pb over Ni

3601-2-07-01-00-00-08-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3601
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

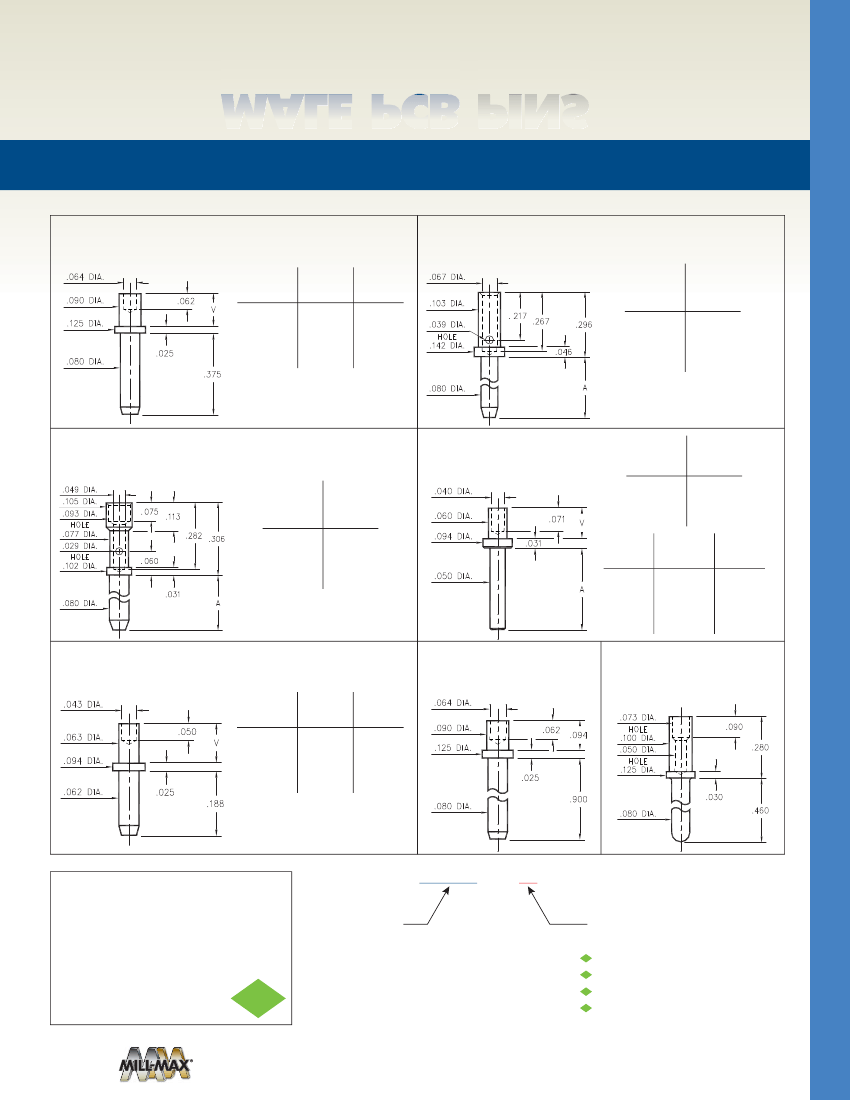

MALE PCB

PINS

PRINTED CIRCUIT PINS

3231

3231-X-00-XX-00-00-08-0

Swage mount in .094 hole

3609

Basic Part

Number

Board

Thickness

Length

3609-X-07-XX-00-00-08-0

Wire crimp termination. Accepts wire

sizes 16 AWG Max. / 20 AWG Min.

Basic Part

Number

Length

3231-2

3231-3

3231-4

.062

.094

.125

.094

.125

.156

3609-1

3609-2

3609-3

.200

.375

.500

3601

3601-X-07-XX-00-00-08-0

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

3133/3138/3152

31XX-X-00-XX-00-00-08-0

Specify board thickness

Swage mount in .064 hole

Basic Part

Number

Length

Basic Part

Number

Length

3152-X

3133-X

3138-X

-X-

.094

.219

.282

Length

3601-1

3601-2

3601-3

.200

.375

.500

Board

Thickness

.031

.062

.094

.125

.063

.094

.125

.156

3144

3144-X-00-XX-00-00-08-0

Swage mount in .067 hole

3233

Basic Part

Number

Board

Thickness

Length

3233-2-00-XX-00-00-08-0

Swage mount in .094 hole

For a .062 thick board

0520

0520-0-00-XX-00-00-03-0

Annealed

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

3144-1

3144-2

3144-3

.031

.062

.094

.053

.084

.115

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except swage pins which are annealed )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 0X -

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

200

”

TIN/LEAD OVER NICKEL

200

”

TIN OVER NICKEL (RoHS)

”

GOLD OVER NICKEL (RoHS)

”

GOLD OVER NICKEL (RoHS)

”

GOLD OVER NICKEL (RoHS)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 223 | MALE PCB PINS
