51089-2005: DescriptionHeaders u0026 Wire Housings 20 POS. REC; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51089-2005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51089-2005	-	-	View	Buy Now

51089-2005 Overview

Headers u0026 Wire Housings 20 POS. REC

51089-2005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: 50212-8000; 50212-8100
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	CRIMP
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

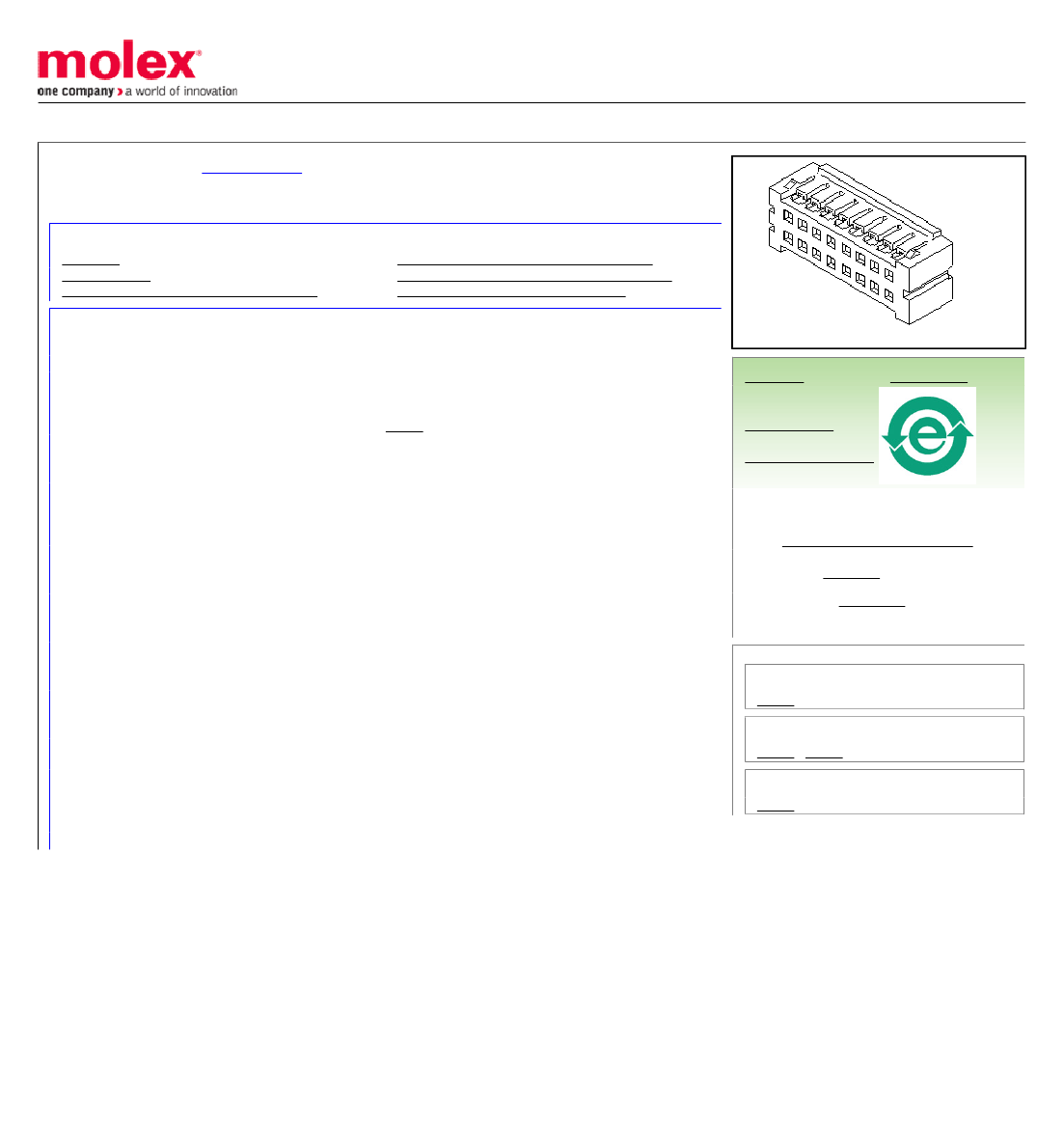

Preview

Download Datasheet

View All

This document was generated on 09/05/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

51089-2005

Active

2.00mm Pitch Mi II™ System Wire-to-Board Crimp Housing, Dual Row, 20 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51089-001 (PDF)

Product Specification PS-51089-005 (PDF)

Application Specification AS-52484-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

UPC

Crimp Housings

51089

Signal, Wire-to-Board

Mi II™

800753760028

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Gray

94V-0

Female

Yes

Polyester

839.000/mg

Bag

2.00mm

-40°C to +105°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

51089Series

Mates With

53313 , 53314

Use With

50212 Crimp Terminals

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-52484-001

PS-51089-001, PS-51089-005, RPS-51089-005

SD-51089-**05

This document was generated on 09/05/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
