22-18-2151 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-18-2151

22-18-2151: DescriptionHeaders u0026 Wire Housings 15C HEADER; CategoryThe connector The connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-18-2151 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-18-2151	-	-	View	Buy Now

22-18-2151 Overview

Headers u0026 Wire Housings 15C HEADER

22-18-2151 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TOP ENTRY
Board mount options	PCB EDGE LOCKING HOOK
body width	0.318 inch
subject depth	0.31 inch
body length	1.496 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Insulation resistance	500000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.133 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.834 N

Preview

Download Datasheet

View All

This document was generated on 12/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

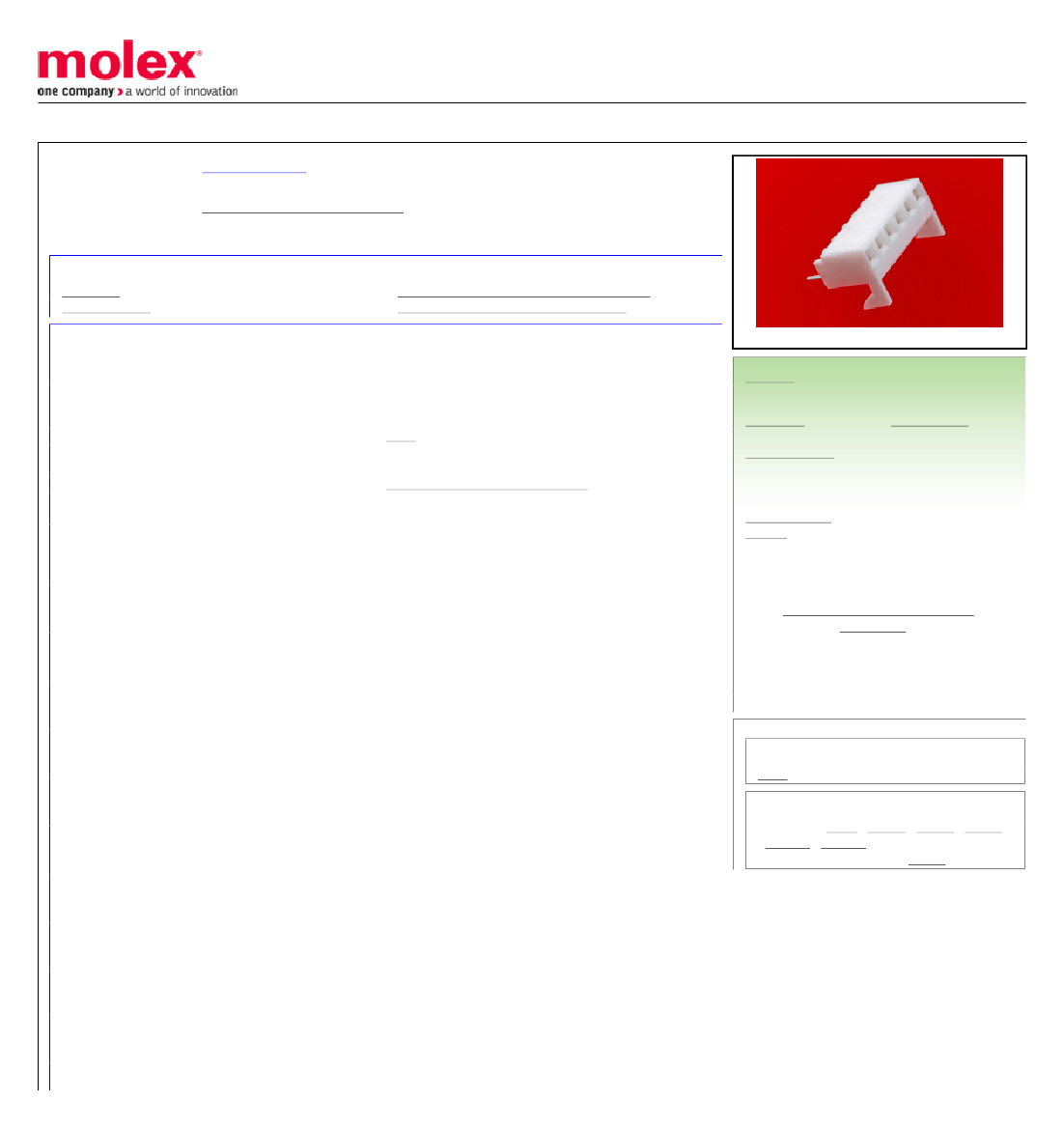

0022182151

Active

KK® Interconnect System - Molex

KK 254 PC Board Connector, Top Entry, with Cat Ear Terminal, 0.38µm Gold (Au), 15

Circuits, with Hooks

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

Solder Process Data

Product Specification PS-10-07-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Receptacles

4455

Board-to-Board, Signal

With Hooks

KK® Interconnect System - Molex

KK 254

800754205061

Natural (White)

94V-0

None

Gold

Tin

Nylon

1.567/g

Vertical

3.35mm

None

1.60mm

Tray

2.54mm

0.381µm

2.540µm

See Product Specification

Through Hole

2.5A

500V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

4455 Series

Mates With

KK Header 4094 , 42376 , 42375 , 42377

, 171856 , 171857 <br>SL Insulation

Displacement Connector 70475
