0.635mm Pitch Interface Connector
CONNECTOR
MB-0286-1
November 2014
DZ02 Series
RoHS Compliant

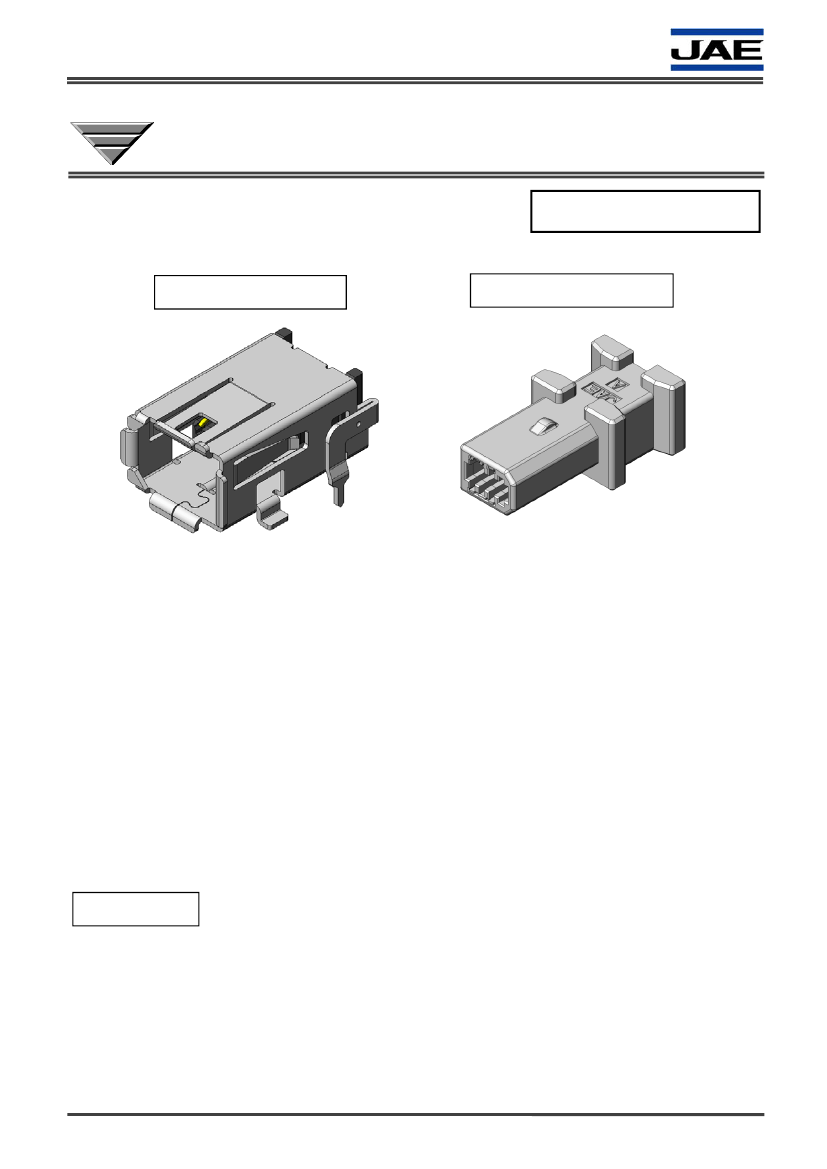

Short-circuit Plug
Receptacle
<<Outline>>
JAE has developed the "DZ02 Series" I/O connector for industrial apparatus.
The DZ02 Series is a 0.635mm pitch compact connector with a superior lock
structure resistant to vibration and is suitable for use under harsh
environmental conditions.
It can be used as an I/O connector for systems compatible with the product
standard IEC/EN 61800-5-2 of the international standard IEC 61508 for
functional safety.
<<Application>>
Servo amplifiers, motion controllers, PLC (Programmable Logic Controller),
and other industrial machinery apparatuses.
Features
■Compact
(0.635mm pitch).
■Lock
structure with superior vibration resistance.
■Structure
that prevents solder flux scattering by covering bottom surface of
contact area with an outer shell.
■Supports
SMT mounting with excellent coplanarity.
■Supports
automated mounting with an embossed tape for receptacle.
JAE PMK Div. Proprietary. Copyright © 2014, Japan Aviation Electronics Industry, Ltd.
1/5
MB-0286-1
General Specifications
Specification
Rated Current
Rated Voltage
Contact Resistance
Insulation Resistance
Dielectric Withstanding Voltage
Operating Temperature
Description
0.5A/ 1 contact
30V
Receptacle: 40mΩ max.
Short-circuit Plug: 80mΩ max.
500MΩ min. (Individual connector)
AC250Vr.m.s (Individual connector)
-40 Deg. C ~ +85 Deg. C
Line-up
Component
Receptacle
Short-circuit Plug
Part Number
DZ02R008NC1
DZ02B008DC1
Materials and Finishes
Component
Receptacle
Part
Insulator
Shell
Contact
Short-circuit Plug
Insulator
Contact
Material and Finish
Synthetic Resin
Copper alloy / Sn plating
Copper alloy / Au plating (contact area)
Synthetic Resin
Copper alloy / Au plating (contact area)
JAE PMK Div. Proprietary. Copyright © 2014, Japan Aviation Electronics Industry, Ltd.
2/5

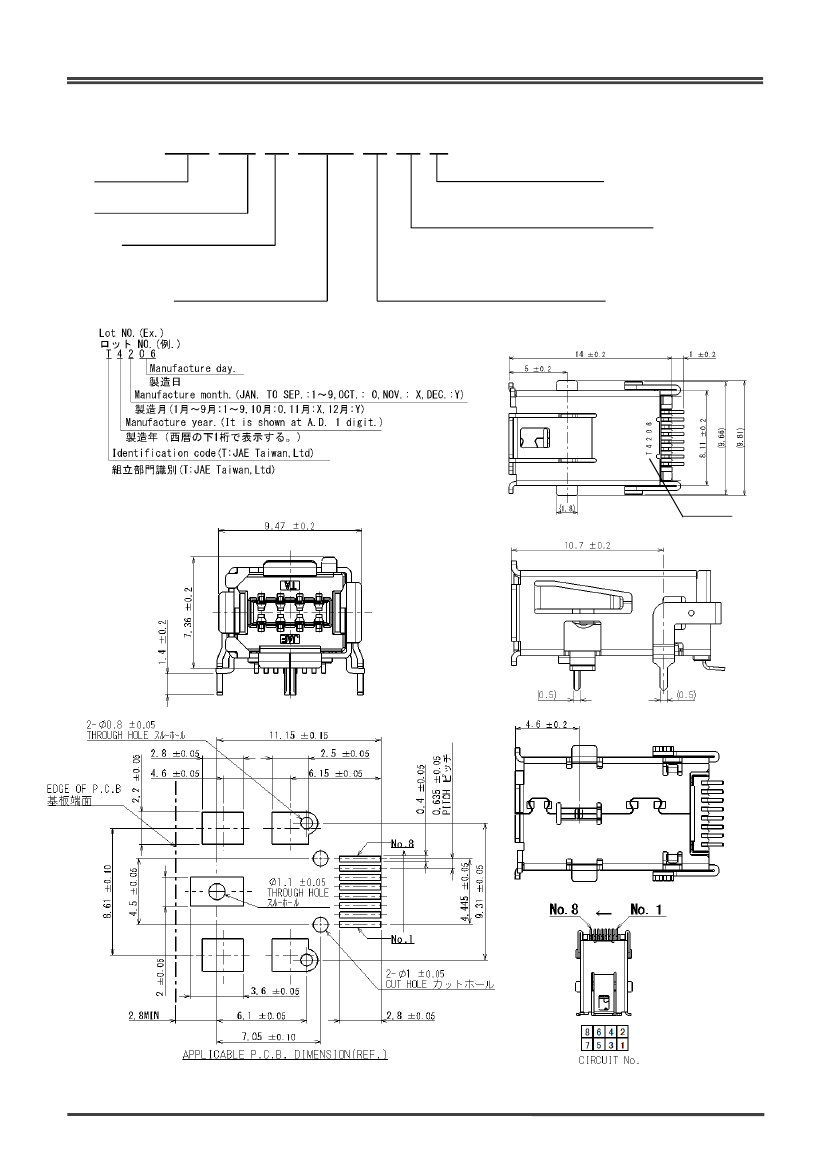

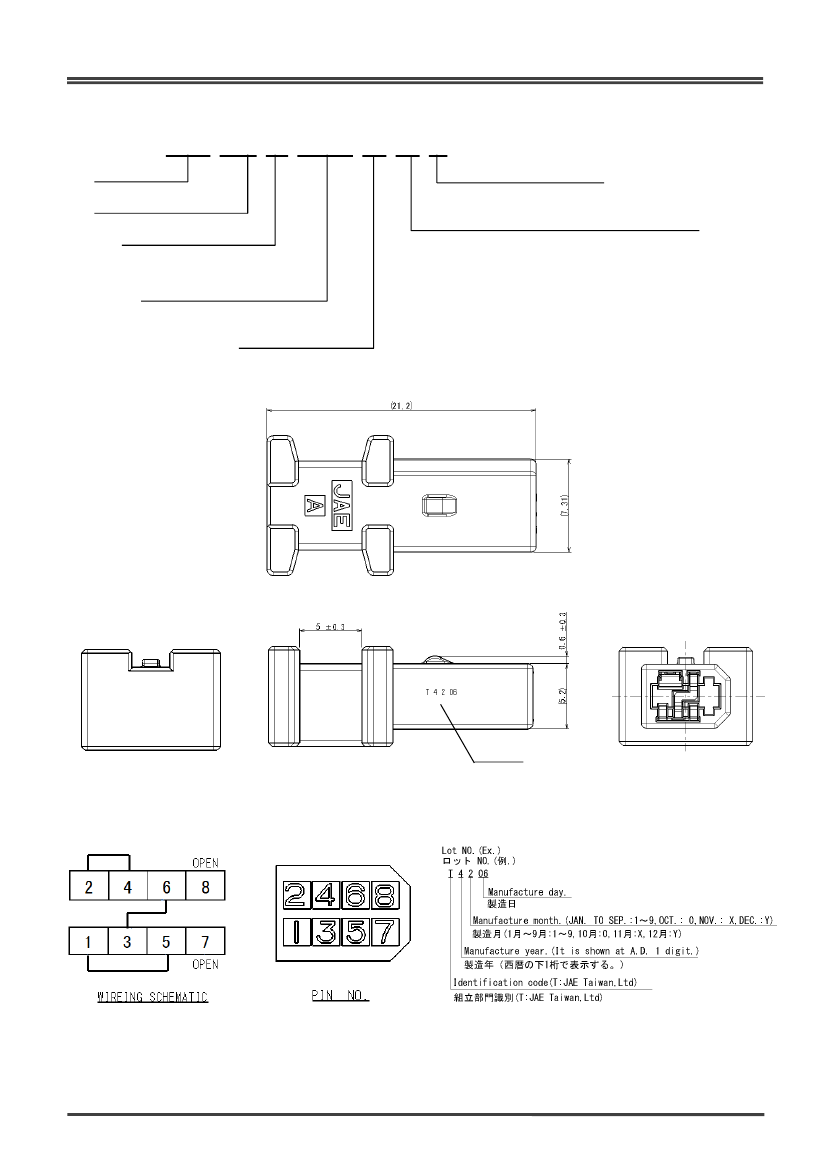

MB-0286-1
Technical Documents
Document Number (Content of Document)
Specification
Handling Instruction
JACS-30337
―
Notice:
1. The values specified in this brochure are only for reference. The products and their specifications are subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
For purchase, a product specification must be agreed upon.
2. Users are requested to provide protection circuits and redundancy circuits to ensure safety of the equipment, and sufficiently review the
suitability of JAE's products to the equipment.
3. The products presented in this brochure are designed for the uses recommended below.
We strongly suggest you contact our sales staff when considering use of any of the products in any other way than the recommended
applications or for a specific use that requires an extremely high reliability.
(1) Applications that require consultation:
(i) Please contact us if you are considering use involving a quality assurance program that you specify or that is peculiar to the industry,
such as:
Automotive electrical components, train control, telecommunications devices (mainline), traffic light control, electric power, combustion
control, fire prevention or security systems, disaster prevention equipment, etc.
(ii) We may separately give you our support with a quality assurance program that
you specify, when you think of a use such as :
Aviation or space equipment, submarine repeaters, nuclear power control systems, medical equipment for life support, etc.
(2) Recommended applications include:
Computers, office appliances, telecommunications devices (terminals, mobile units), measuring equipment, audiovisual equipment, home
electric appliances, factory automation equipment, etc
Product Marketing Division
Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539
Phone: +81-3-3780-2882 FAX: +81-3-3780-2946
* The specifications in this brochure are subject to change without notice. Please contact JAE for information.
JAE PMK Div. Proprietary. Copyright © 2014, Japan Aviation Electronics Industry, Ltd.
5/5
