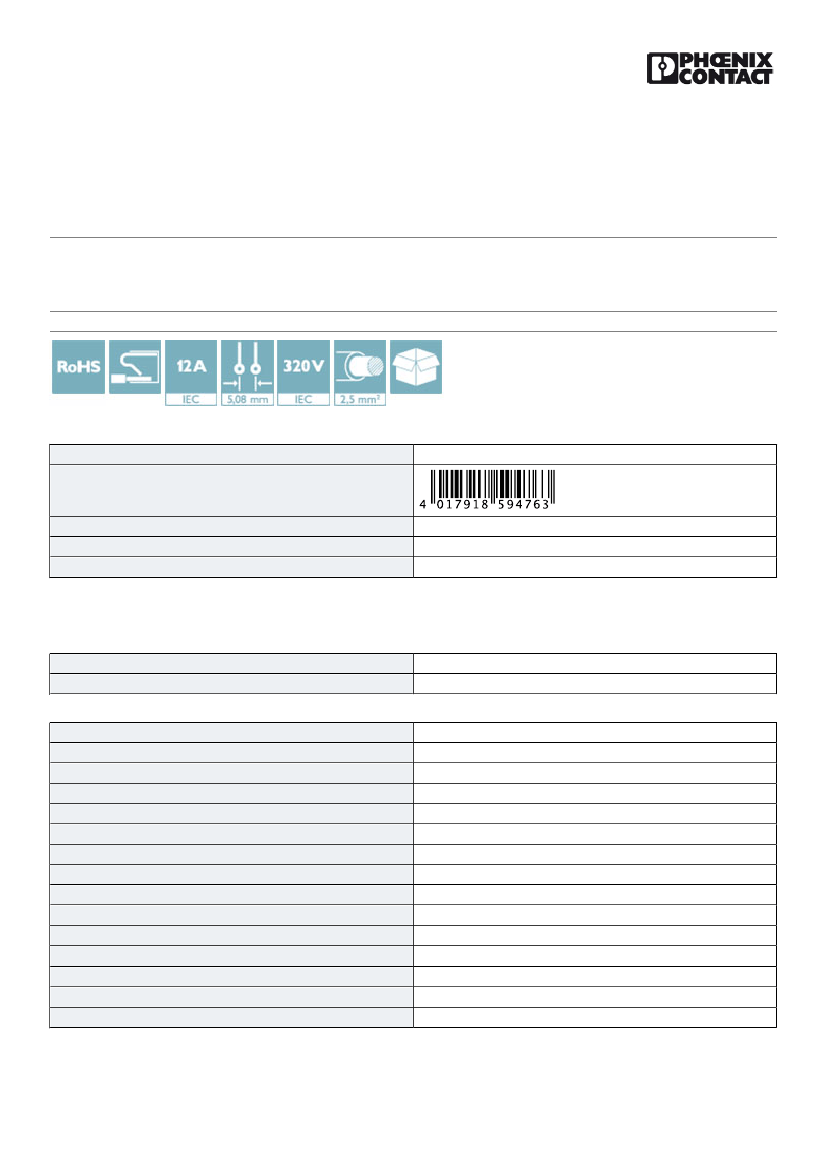

Printed-circuit board connector - FKC 2,5/16-STF-5,08 BU
BD:1-16 - 1925595
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5.08 mm,
Connection method: Push-in spring connection, Color: blue, Contact surface: Tin
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918594763
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Pitch
Dimension a
5.08 mm
76.2 mm
General
Range of articles
Type of contact
Number of positions
Connection method
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Internal cylindrical gage
Stripping length
FKC 2,5/..-STF
Female connector
16
Push-in spring connection
4 kV
4 kV
4 kV
320 V
320 V
630 V
EN-VDE
12 A
2.5 mm²
A2
10 mm
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1925595
Printed-circuit board connector - FKC 2,5/16-STF-5,08 BU
BD:1-16 - 1925595
Technical data
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
2.5 mm²
24
12
0.5 mm²
1 mm²
26
12
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / cULus Recognized / EAC / IECEE CB Scheme
Ex Approvals
Approval details
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1925595
Printed-circuit board connector - FKC 2,5/16-STF-5,08 BU
BD:1-16 - 1925595
Approvals
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40004701
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
0.2-2.5
12 A
250 V
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
10 A
300 V
D
26-12
10 A
300 V
EAC B.01742
IECEE CB Scheme http://www.iecee.org/ DE1-56062-M1-B1B2
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-2.5
12 A
250 V
Phoenix Contact 2016 © - all rights reserved
