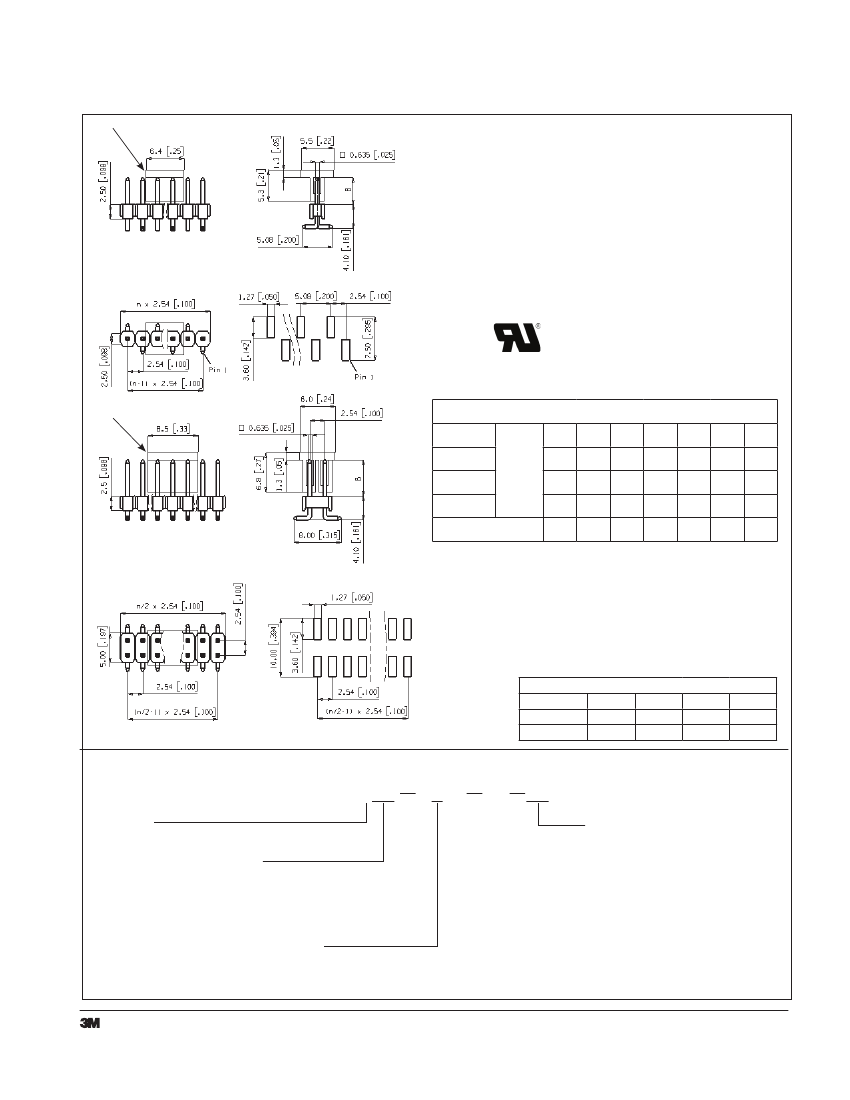

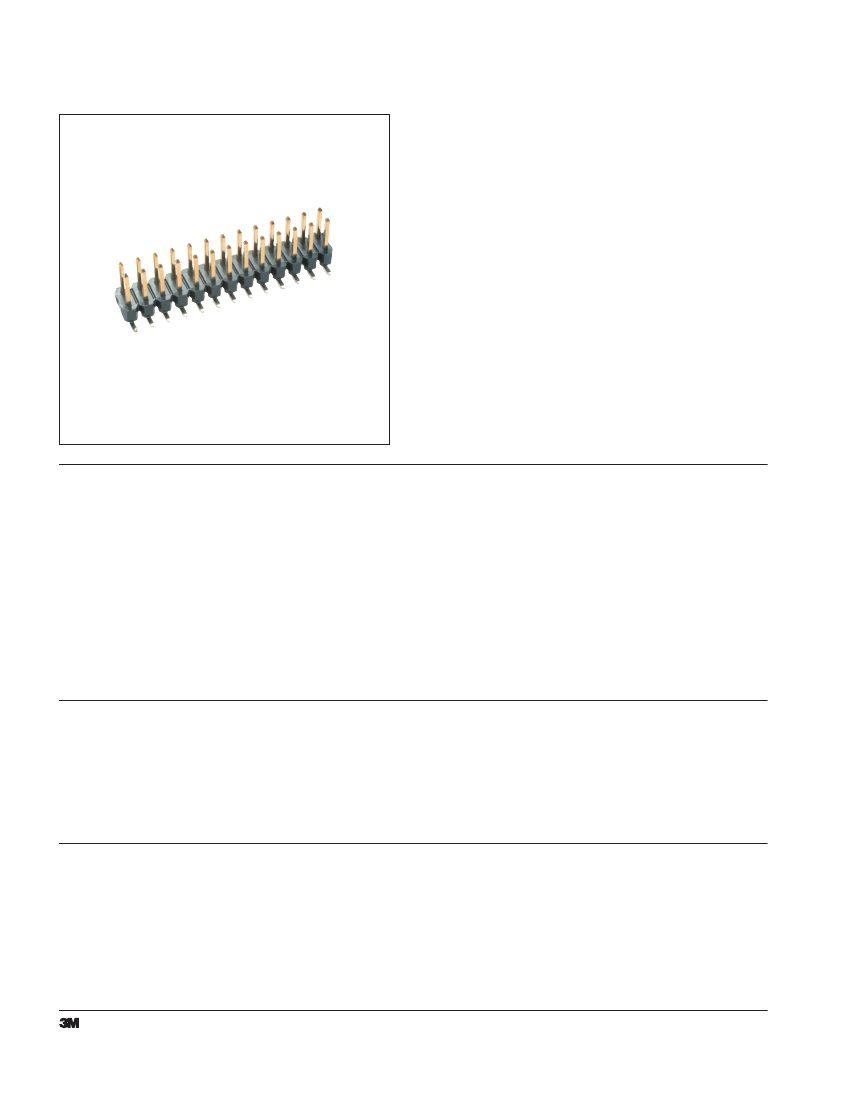

2.54 mm and 2.54 mm x 2.54 mm, Straight, Surface Mount
961 Series
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
End stackable feature
•
Single- and dual row version
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 26, 2012
TS-2183-D
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [50–100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
3M
™
Pin Strip Header
PP - Pad (optional)
2.54 mm and 2.54 mm x 2.54 mm, Straight, Surface Mount
961 Series
PCB Layout
PP - Pad (optional)
Tape & Reel Option
9611xx-6300
(1 Row)
9611xx-6700
(1 Row)
Contact
9612xx-6300
Quantity
(2 Row)
9612xx-6700
(2 Row)
Tape Width
[mm]
5
5
10
6–8
6–7
9–12 13–17 18–22 23–28 29–30
8–12 13–16 17–21 22–28 29–30
12–14 16–24 26–32 34–42 44–56 58–60
10–14 16–22 24–32 34–42 44–54 56–60
24
32
44
56
72
88
104
PCB Layout
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
03–30 Pins / 1 Row
04–60 Pins / 2 Row
961XXX
6X00
AR
XX
(RIA E1 & C1 Apply)
Packaging:
TP = Tube without Pad
PT = Tube with Pad
PR = Tape & Reel with Pad
Note: Pad options
1 Row – 5 to 30 pos.
2 Row – 10 to 60 pos.
Mating Pin Length:
Dim ‘B’
3 = 5.3 mm [.21]
7 = 6.6 mm [.26]
TS-2183-D
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
