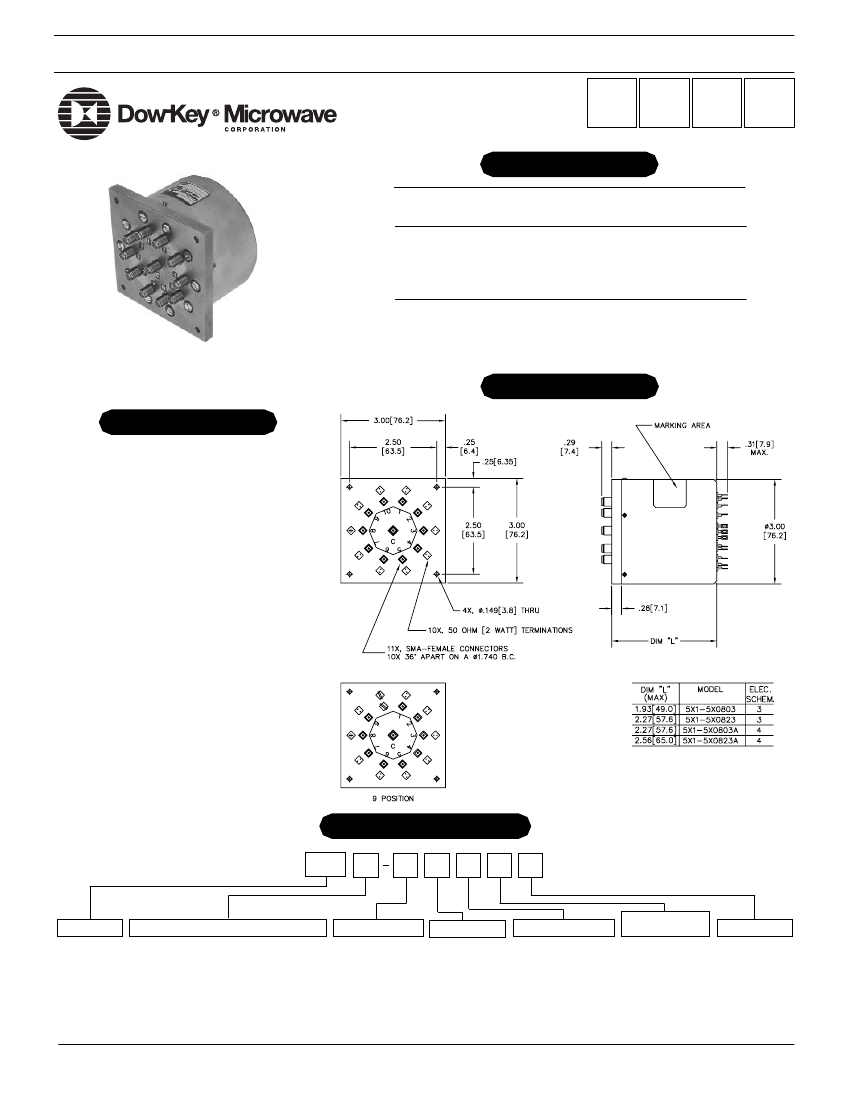

591-5A1 Series Normally Open Terminated
SMA
C M A
Commercial
Military
Avionics
S
Space
RF Characteristics
Frequency
GHz
DC-4
4-8
*8-12.4
*12.4-18
VSWR
(max)
1.20
1.30
1.40
1.60
Isolation
dB (min)
70
65
60
55
Ins. Loss
dB (max)
0.20
0.30
0.40
0.60
Note: RF Power for the terminated port is limited by the termination.
* “K” option only
5A1 Normally Open
Terminated, SMA
Specifications
Operating Voltage:
(across temperature range)
12 Vdc (11-14 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max @ nom.Vdc & 20°C):
12 Vdc 550 mA
28 Vdc 240 mA
Switching Time:
20 mS maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended “T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10 G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50 G, 1/2 Sine, 11 mS
Nominal Weight:
17.5 oz., (496g.)
Mechanical
5A1-530823 Shown
Part Number Selection
5A1
J
5
2
08
03
A
For Electrical Schematic
see page # 3-9
Family
Special Options
Actuator
Coil Voltage
Connectors
Indicators/
Terminations
Circuit Options
591
= SP9T
5A1
= SP10T
J
= 15 or 25 Pin 'D'
Connector
R
= (-) Com
S
= Epoxy Seal
T
= -55º to +85º C
5
= Normally Open
2
= 12Vdc
3
= 28Vdc
8
= 24Vdc
9
= 15Vdc
08
= SMA Female
03
= No Indicators
2W Terminations
23
= SPST Indicators
2W Terminations
A
= TTL High
L
= TTL Low
ISO 9001 Certified
3-8
www.dowkey.com
