HCTS109T
Data Sheet
July 1999
File Number
4624.1
Radiation Hardened Dual JK Flip Flop
Intersil’s Satellite Applications Flow
TM
(SAF) devices are fully
tested and guaranteed to 100kRAD total dose. These QML
Class T devices are processed to a standard flow intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The Intersil HCTS109T is a Radiation Hardened Dual JK Flip
Flop with set and reset. The flip flop changes state with the
positive transition of the clock (CP1 or CP2).
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- SEP Effective LET No Upsets: >100 MEV-cm
2
/mg
- Single Event Upset (SEU) Immunity < 2 x 10
-9
Errors/Bit-Day (Typ)
• 3 Micron Radiation Hardened SOS CMOS
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Logic Compatibility
- V
IL
= 0.8V Max
- V
IH
= V
CC/2
Min
• Input Current Levels Ii
≤
5mA at V
OL
, V
OH
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HCTS109T are
contained in SMD 5962-95769.
A “hot-link” is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil’s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Pinouts
HCTS109T (SBDIP), CDIP2-T16
TOP VIEW
RI
J1
K1
1
2
3
4
5
6
7
8
16 V
CC
15 R2
14 J2
13 K2
12 CP2
11 S2
10 Q2
9 Q2
Ordering Information
ORDERING
NUMBER
5962R9576901TEC
5962R9576901TXC
PART
NUMBER
HCTS109DTR
HCTS109KTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
CP1
S1
Q1
Q1
GND
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
R1
J1
K1
CP1
S1
Q1
Q1
GND
HCTS109T (FLATPACK), CDFP4-F16
TOP VIEW
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC
R2
J2
K2
CP2
S2
Q2
Q2
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
HCTS109T
Die Characteristics
DIE DIMENSIONS:
2261µm x 2235µm x 533µm
±51µm)
89 x 88 x 21mils
±2mil
METALLIZATION:
Type: Al Si
Thickness: 11kÅ 1kÅ
SUBSTRATE POTENTIAL:
Unbiased Silicon on Sapphire
BACKSIDE FINISH:
Sapphire
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 13k
Å
±2.6k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
268
PROCESS:
CMOS SOS

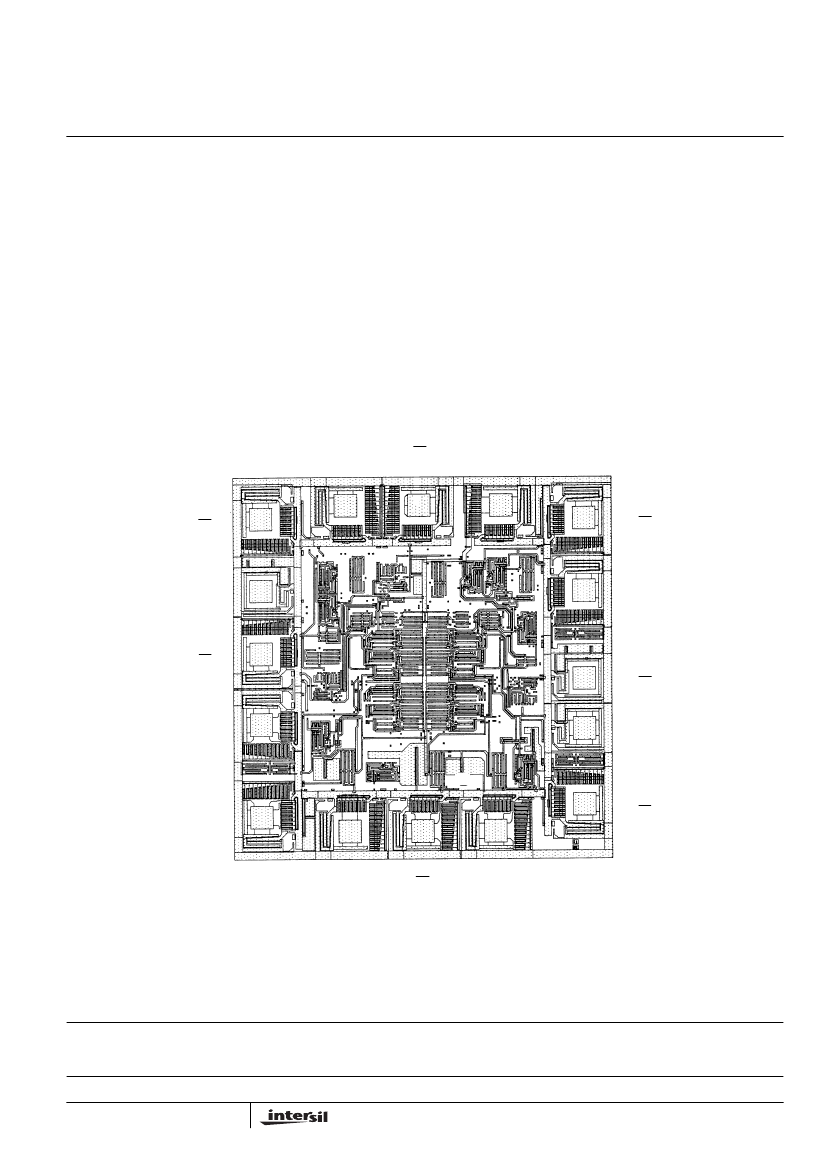

Metallization Mask Layout
HCTS109T
J1
(2)
R1
(1)
V
CC
(16)
K1 (3)
(15) R2
CP1 (4)
(14) J2
S1 (5)
(13) K2
Q1 (6)
(12) CP2
(11) S2
Q1 (7)
(8)
GND
(9)
Q2
(10)
Q2
NOTE: The die diagram is a generic plot form a similar HCS device. It is intended to indicate approximate die size and bond pad location. The mask
series for the HCTS109 is TA14440A.
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with-
out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com
