MKP18463476351

Description
Film Capacitors 47 nF 10% 630Vdc 22,5 mm
CategoryPassive components
File Size82KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MKP18463476351 Online Shopping

Suppliers Part Number Price MOQ In stock
MKP18463476351 - - View Buy Now

MKP18463476351 Overview

Film Capacitors 47 nF 10% 630Vdc 22,5 mm

MKP18463476351 Parametric

Parameter NameAttribute value
Product CategoryFilm Capacitors
ManufacturerVishay
MKP 1846
Not for new designs
Vishay Roederstein
Double Metallized Polypropylene Film Capacitor
Radial AC and Pulse Capacitor
Dimensions in millimeters
L Max.
W Max.
Marking
FEATURES
Product is completely lead (Pb)-free
Product is RoHS-compliant
OPERATING TEMPERATURE RANGE
H
Max.
6
6.0
- 1
- 55°C to + 100°C
CAPACITANCE RANGE
1000pF to 0.68µF
±
0.4
CAPACITANCE TOLERANCES
± 20% (M), ± 10% (K), ± 5% (J)
RATED VOLTAGES (U
R
):
pcm
±
0.4
Ø
d
630 VDC, 1000 VDC, 1600 VDC, 2000 VDC

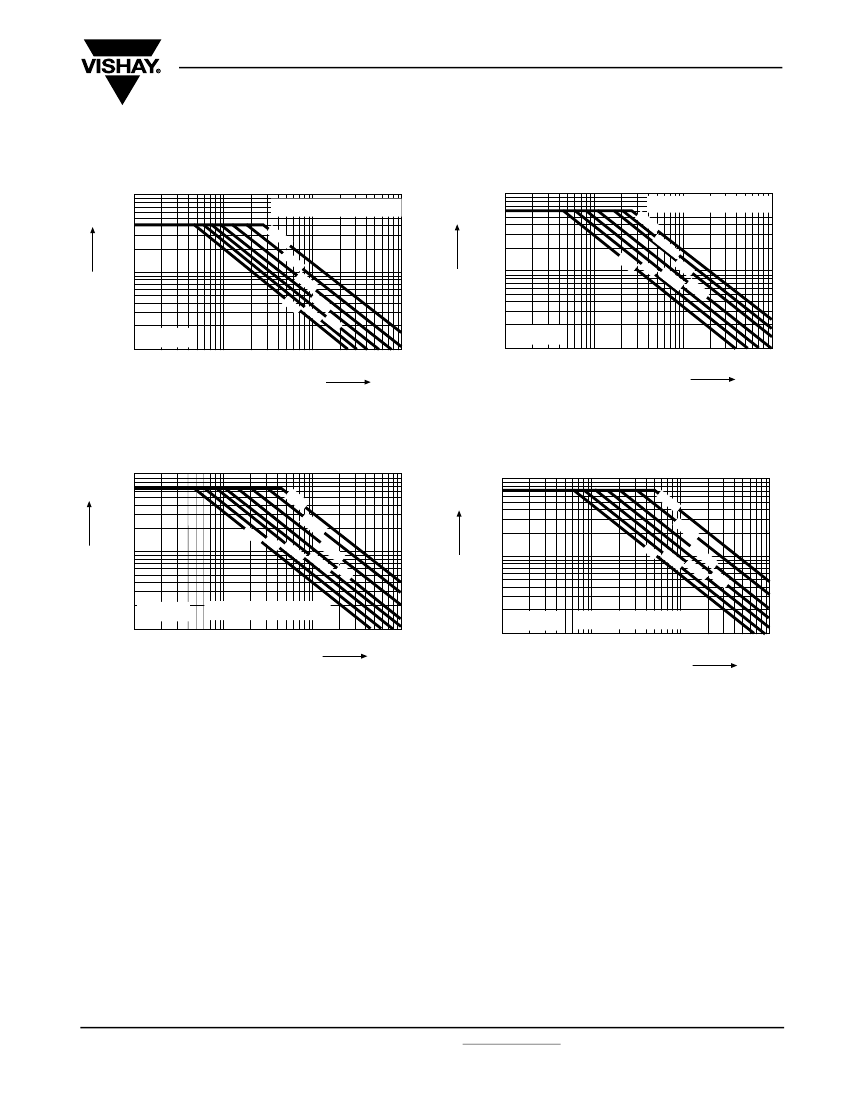

PERMISSIBLE AC VOLTAGES (RMS) UP TO 60Hz
W
< 16.0
16.0
Ød
0.8
1.0
400 VAC, 600 VAC, 650 VAC, 700 VAC
TEST VOLTAGE (ELECTRODE/ELECTRODE)
1.6 x U
R
for 2 s
MAIN APPLICATIONS
High voltage, high current and high pulse operations,
deflection circuits in TV sets (S-correction and fly-back
tuning). Protection circuits in SMPS’s. Snubber and
electronic ballast circuits. Input and output filtering in SPS
designs, storage, timing and integrating circuits.
INSULATION RESISTANCE
Measured at 100 VDC after one minute
For C
0.33µF:
100,000 M minimum value
TIME CONSTANT
MARKING
Manufacturer's logo/type/C-value/rated voltage/tolerance/
date of manufacture
Measured at 100 VDC after one minute
For C > 0.33µF:
30,000 s minimum value
TEMPERATURE COEFFICIENT
- 250 x 10
-6
/°C (typical value)
DIELECTRIC
Polypropylene film
CAPACITANCE DRIFT
Up to + 40°C, ± 0.5% for a period of two years
ELECTRODES
Vacuum deposited aluminum
DERATING FOR DC AND AC.CATEGORY VOLTAGE U
C
At + 85°C: U
C
= 1.0 U
R
At + 100°C: U
C
= 0.7 UR
COATING
Flame retardant plastic case (UL-class 94 V-0), blue, epoxy
resin sealed
SELF INDUCTANCE
~ 6 nH measured with 2mm long leads
CONSTRUCTION
Extended double-sided metallized polyester film, internal
series connection, single-sided metallized polypropylene film
(refer to general information)
PULL TEST ON LEADS
RELIABILITY
30 N in direction of leads according to IEC 60068-2-21
Operational life > 300,000 h
Failure rate < 5 FIT (40°C and 0.5 x U
R
)
For further details, please refer to the general information
available at www.vishay.com/doc?26033.
LEADS
Tinned wire
IEC TEST CLASSIFICATION
55/100/56, according to IEC 60068
MAXIMUM PULSE RISE TIME
630 VDC
1000 VDC
1600 VDC
15
3430
6600
11100
22.5
2120
2800
3800
27.5
1524
2000
2680
37.5
980
1280
1690
If the maximum pulse voltage is less than the rated voltage higher d
v
/d
t
values can be permitted.
Document Number: 26020
Revision: 23-Jun-05
For technical questions contact; dc-film@vishay.com
PCM
(mm)
Maximum Pulse Rise Time d
v
/d
t
[V/µs]
2000 VDC
6200
4200
2600
www.vishay.com
1
