Eaton to offer a wide variety of capacitor solutions
tailored to specific applications that range from
a few microamps for several days to several
milliamps formilliseconds.
•
Technical Data
4422
Effective September 2016
KW Supercapacitors
Coin cells
Specifications
Capacitance
Working voltage
Surge voltage
Capacitance tolerance
Operating temperature range
0.1 F to 1.0 F
5.5 V
6.3 V
-20% to +80% (+20 °C)
-40 °C to +85 °C
Standard Product
Max. initial DC ESR (Ω) (Equivalent Series
Resistance) measured @ 1kHz
Capacitance (F)
Part number
Lead length
Typical mass (g)
0.1
0.1
0.22
0.22
0.33
0.33
0.68
0.68
1.0
1.0
KW-5R5C104-R
KW-5R5C104H-R
KW-5R5C224-R
KW-5R5C224H-R
KW-5R5C334-R
KW-5R5C334H-R
KW-5R5C684-R
KW-5R5C684H-R
KW-5R5C105-R
KW-5R5C105H-R
Standard
Short
Standard
Short
Standard
Short
Standard
Short
Standard
Short
50
50
50
50
50
50
30
30
30
30
3.7
3.7
3.7
3.7
3.7
3.7
10.2
10.2
10.4
10.4
Performance
Parameter
Capacitance Change
(% of initial value)
ESR
(% of max. initial value)
Life — +85 °C @ 5.5 Vdc, 2000 hours
Storage Life — -40 °C to +85 °C, 2000 hours
≤
30%
≤
30%
≤
200%
≤
200%
2
www.eaton.com/electronics
KW Supercapacitors
Coin cells

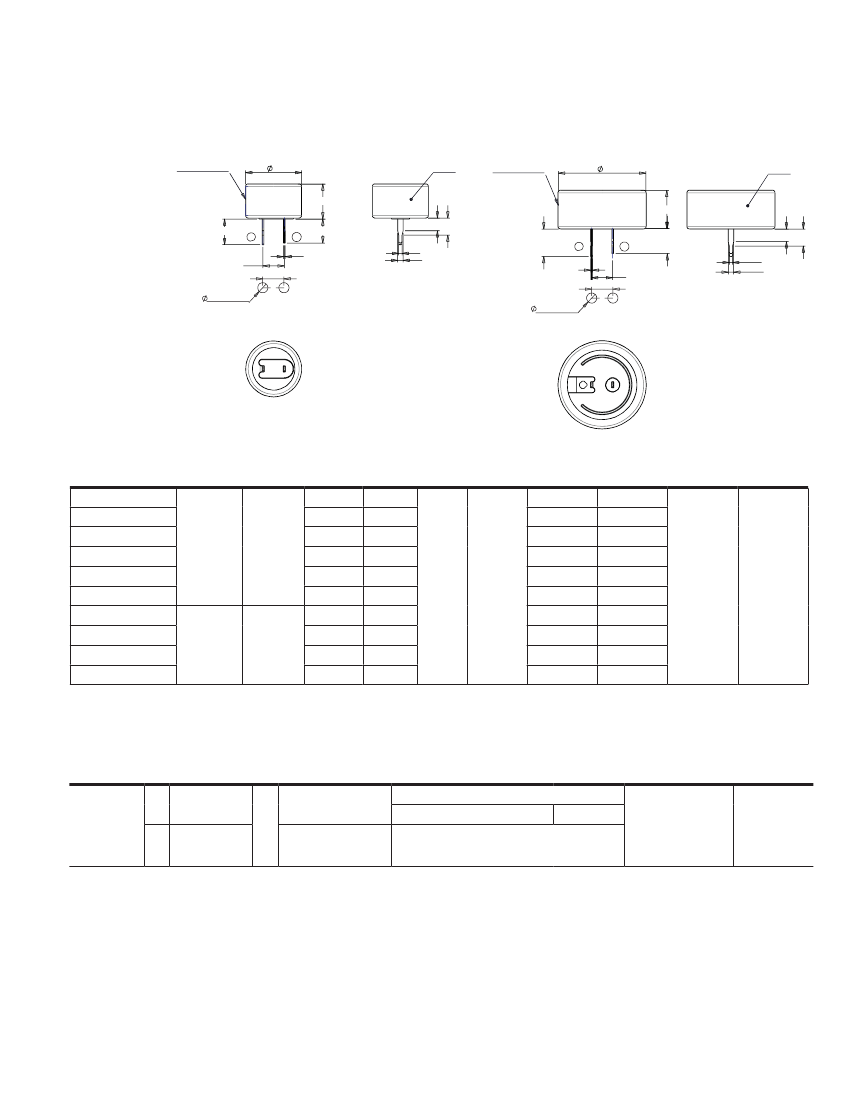

Dimensions (mm)
KW-5R5C104/224/334-R
Polarity Marking
Location
D
Sleeve
Technical Data
4422
Effective September 2016
KW-5R5C684/105-R
Polarity Marking
Location
D
Sleeve
H Max
L1 L2
W
W1
L(-)
T
5.00
H Max
L1
W
W1
L2
L(-)
T
5.00
L(+)
L(+)
P
P
Recommended PCB Layout
1.60 ±0.05
Recommended PCB Layout
1.60 ±0.05
Part Number
ØD
Max
H
Max
L(-)
±0.2
L(+)
±0.2
P
±0.3
T
±0.1
L1
±0.1
L2
±0.1
W
±0.06
W1
±0.06
KW-5R5C104-R
KW-5R5C104H-R
KW-5R5C224-R
KW-5R5C224H-R
KW-5R5C334-R
KW-5R5C334H-R
KW-5R5C684-R
KW-5R5C684H-R
KW-5R5C105-R
KW-5R5C105H-R
21.5
8.85
13.5
8.30
6.1
3.3
6.1
3.3
6.1
3.3
6.5
3.3
6.5
3.3
5.7
3.3
5.7
3.3
5.7
3.3
5.8
3.3
5.8
3.3
5.0
0.4
3.0
0.9
3.0
0.9
3.0
0.9
3.0
0.8
3.0
0.8
4.0
1.9
4.0
1.9
4.0
1.9
4.0
1.8
4.0
1.8
0.8
1.3
Part numbering system
KW
—
5
R
5
C
o
Configuration
V = Vertical
H = Horizontal
C=Cylindrical
o
Value
o
o
Multiplier
H*
-R
Voltage (V)
R = Decimal
Family Code
5R5 = 5.5 V
Capacitance (μF)
Short lead length
RoHS Compliant
Example: 474 = 47 x 104 μF or 0.47 F
* If ordering standard lead length, omit “H” from part number.
Packaging information
Standard bulk packaging:
•
KW-5R5C104/224/334-R—400 units
•
KW-5R5C684/105-R—500 units
Part marking
•
•
•
•
Manufacturer
Capacitance (F)
Max operating voltage (V)
Polarity
www.eaton.com/electronics
3
Technical Data
4422
Effective September 2016
KW Supercapacitors
Coin cells
Wave solder profile
t
p
T
p
First Wave
Second Wave
Temperature
T
smax
Preheat area
Cool down area
Time
Profile Feature
Standard SnPb Solder
Lead (Pb) Free Solder
Preheat and soak
• Temperature max. (Tsmax)
• Time max.
100 °C
60 seconds
160 °C max.
235 °C – 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
100 °C
60 seconds
160 °C max.
250 °C – 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
D
preheat to max Temperature
Peak temperature (TP)*
Time at peak temperature (tp)
Ramp-down rate
Time 25 °C to 25 °C
Do not touch the supercapacitor’s external sleeve with the soldering rod or the sleeve will melt or crack. The recommended temperature
of the soldering rod tip is less than 260 °C (maximum: 350 °C) and the soldering duration should be less than 5 seconds. Minimize the time
that the soldering iron is in direct contact with the terminals of the supercapacitor as excessive heating of the leads may lead to higher
equivalent series resistance (ESR).
Do not use reflow soldering using infrared or convection oven heating methods.
Manual solder
Reflow soldering
Cleaning/Washing
Avoid cleaning of circuit boards, however if the circuit board must be cleaned use static or ultrasonic immersion in a standard circuit board
cleaning fluid for no more than 5 minutes and a maximum temperature of +60 °C. Afterwards thoroughly rinse and dry the circuit boards.
In general, treat supercapacitors in the same manner you would an aluminum electrolytic capacitor.
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
