FH3200025

Description
Crystals 32MHz, 10 pF
CategoryPassive components
File Size494KB,4 Pages
ManufacturerPericom Semiconductor Corporation (Diodes Incorporated)
Websitehttps://www.diodes.com/
Download Datasheet Parametric Compare View All

FH3200025 Online Shopping

Suppliers Part Number Price MOQ In stock
FH3200025 - - View Buy Now

FH3200025 Overview

Crystals 32MHz, 10 pF

FH3200025 Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerPericom Semiconductor Corporation (Diodes Incorporated)
RoHSDetails
Termination StyleSMD/SMT
Package / Case2.5 mm x 2 mm x 0.6 mm
Load Capacitance10 pF
Frequency32 MHz
Tolerance10 PPM
Frequency Stability10 PPM
Drive Level10 uW
Minimum Operating Temperature- 20 C
Maximum Operating Temperature+ 70 C
Length2.5 mm
Width2 mm
Height0.6 mm
ESR50 Ohms
Mounting StyleSMD/SMT
ProductCrystals
Factory Pack Quantity3000
TypeSealed Crystal

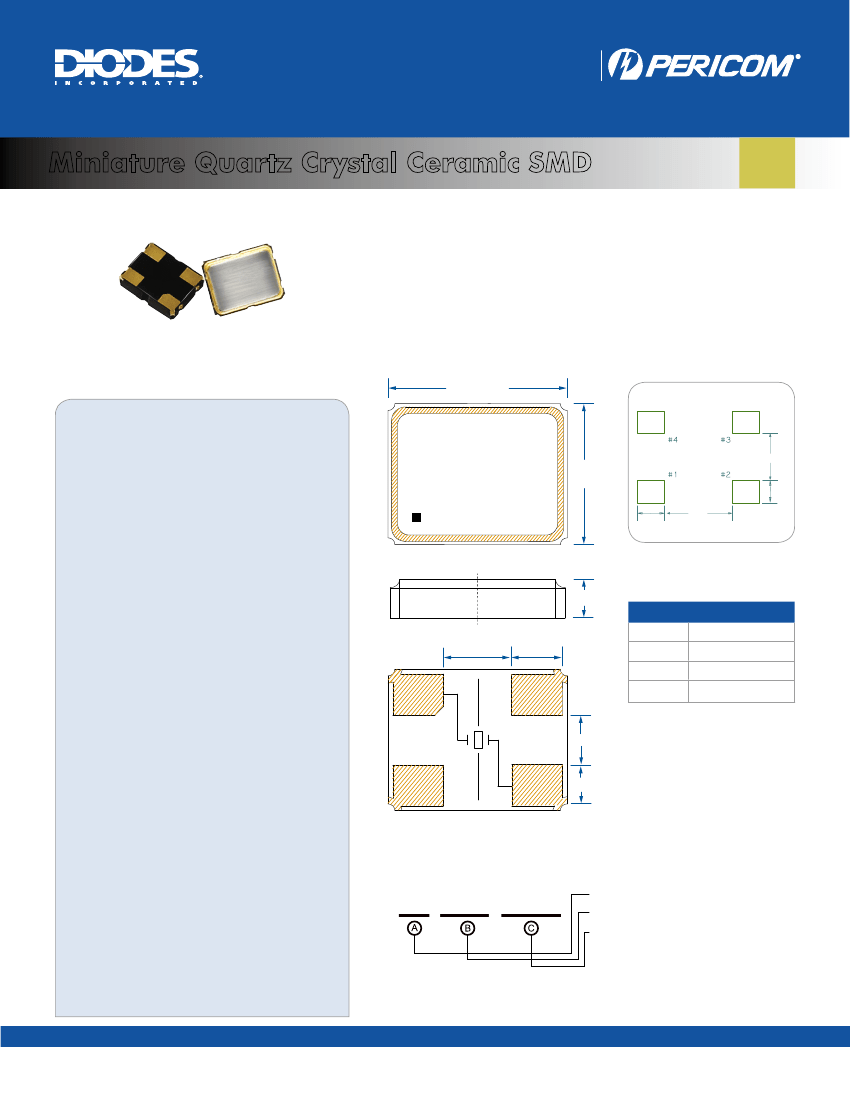

ADVANCED INFORMATION
A product Line of
Diodes Incorporated
FH Series Quartz Crystal Legacy NKS2 Series
2.5 x 2.0mm
Miniature Quartz Crystal Ceramic SMD
FH
2.5 x 2.0mm Ceramic SMD
Package: (Scale: non; dimensions are in mm)
2.5 ± 0.1
Recommended Land Pattern:
Product Description
The 4-pad FH Series seam seal devices incorporate
a sub-miniature AT-cut crystal resonator housed in
a standard 2.5 x 2.0mm ceramic package. These
compact crystals are ideal for surface mounting
in densely populated or small form-factor PCB
applications.
0.6
2.0 ± 0.1
0.95
1.0
0.85
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Product Features
Rugged AT-cut crystal construction
Miniature 2.5 x 2.0mm ceramic package
Available on tape & reel; 8mm tape,
3000 units per reel
Pb-free and RoHS/Green compliant
1
2
0.9
0.72
0.6 ± 0.1
Pin Functions:
Pin
Function
1
2
3
4
Xtal
Case
Xtal
Case
Typical Applications
Portable / Hand-held PCs
PCMCIA Cards
Notebook PC
Bluetooth
Wireless LAN
UWB
ZigBee
USB
GPS
HDD
GSM, CDMA, GPRS
Following the above format, Saronix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
4
3
0.57
0.7
Part Ordering Information:
FH XXX YYYY
A: Product½Family
B: XXX = Frequency½Code
C: YYYY = Specification½Code
© Diodes Incorporated
FH SERIES
Document Number. 40267 Rev 1-2
US: +1-408-232-9100 TW: +886-3-4518888
www.diodes.com
October 2017
© Diodes Incorporporated
1
