C11CF330J-9ZN-X1T datasheet, PDF

Datasheet> All Categories > Passive components> C11CF330J-9ZN-X1T

C11CF330J-9ZN-X1T: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 200V 33pF Low ESR; CategoryPassive components; File Size374KB，3 Pages; ManufacturerDielectric Laboratories

Download Datasheet Parametric Compare View All

C11CF330J-9ZN-X1T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C11CF330J-9ZN-X1T	-	-	View	Buy Now

C11CF330J-9ZN-X1T Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 200V 33pF Low ESR

C11CF330J-9ZN-X1T Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	Dielectric Laboratories
RoHS	Details
Capacitance	33 pF
Voltage Rating DC	250 VDC
Dielectric	CF
Tolerance	5 %
Case Code - in	0505
Case Code - mm	1414
Height	1.27 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	RF Microwave / High Q
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	1.4 mm
Package / Case	0505 (1414 metric)
Factory Pack Quantity	500
Termination Style	SMD/SMT
Type	RF Microwave MLCC
Width	1.4 mm

Preview

Download Datasheet

View All

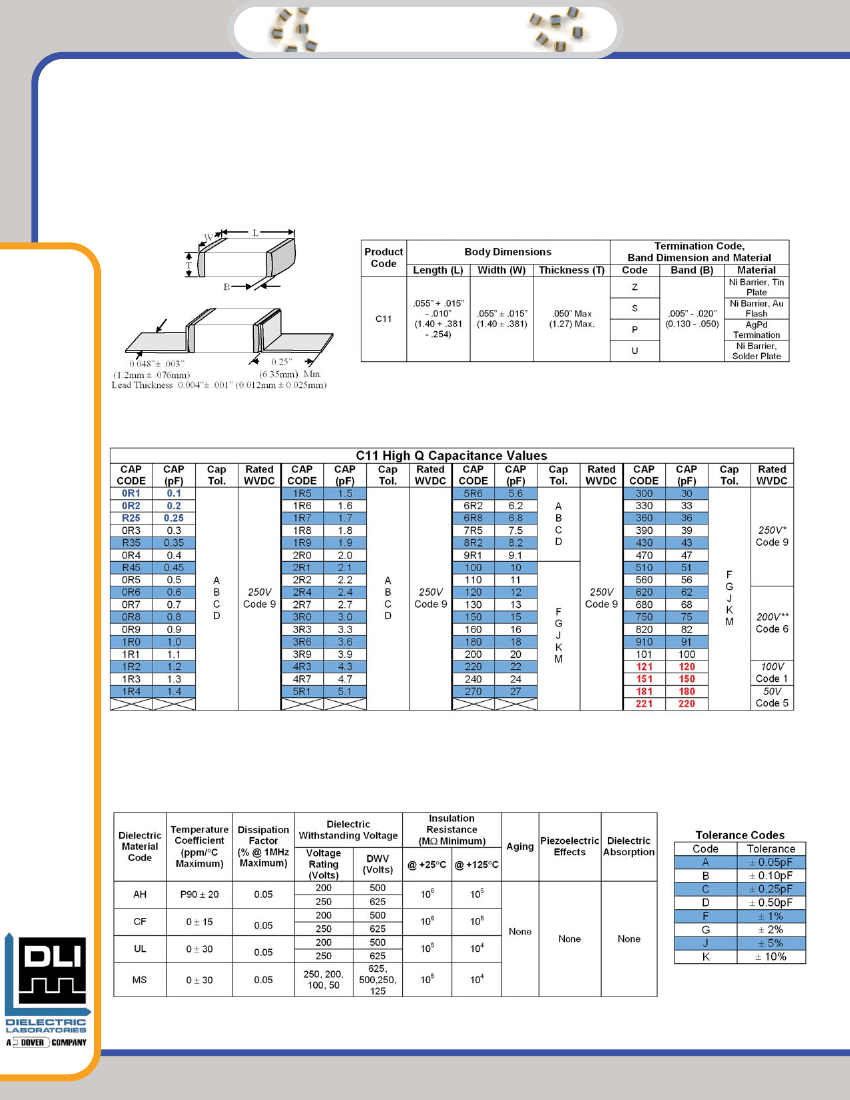

C11 0505

FUNCTIONAL APPLICATIONS

Impedance Matching

D.C. Blocking

Bypass

Coupling

Tuning and Feedback

BENEFITS

Oscillators

Timing Circuits

Filters

RF Power Amplifiers and Delay Lines

Stable TC, -55 to +125 °C Operating Range

Mechanical Specification

Dielectric Laboratories

Laser marking available in Horizontal and Vertical orientation. Codes L, V, D.

The MS material system is available in Z and U terminations only.

U termination is not available in the UL material system.

Capacitance Table

*AH, CF, and UL capacitors in the cap range from 33pF to 56pF are 200V rated, Code 6.

Cap values shown in

red

are available in MS only, in

blue

are available in AH, CF, and UL only.

**MS capacitors in the range from 62pF to 100pF are 150V rated, Code 8.

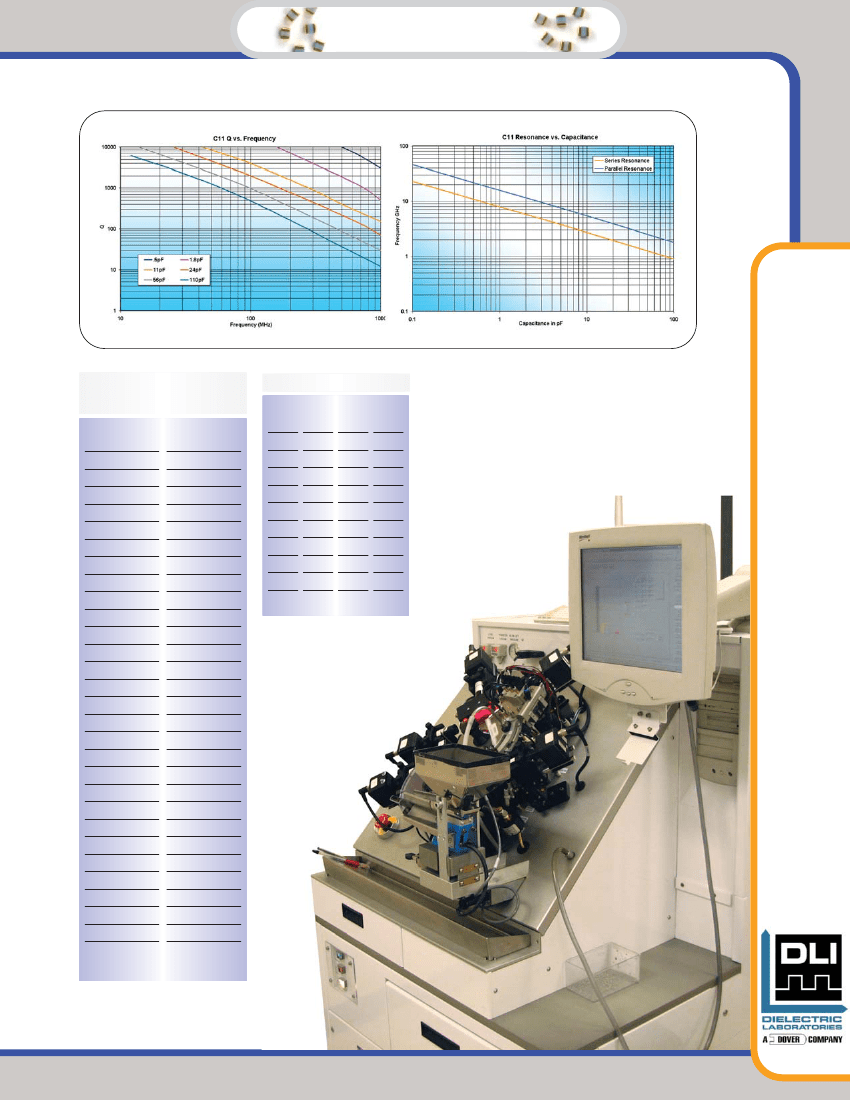

Electrical Specifications

Note: Dissipation Factor applies to values of 4.7pF or greater.

www.dilabs.com

C11CF330J-9ZN-X1T Related Products

	C11CF330J-9ZN-X1T	C11CF100F-9ZN-X1B	C11CF390F-6UN-X1B	C11CF1R2B-9ZN-X1T	C11CF0R7B-9ZN-X1T	C11CF3R6B-9UN-X1T	C11CF620F-6UN-X1B	C11CF330F-9ZN-X1B	C11CF680F-6UN-X1B	C11CF9R1B-9ZN-X1T
Description	Multilayer Ceramic Capacitors MLCC - SMD/SMT 200V 33pF Low ESR	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 10pF 1% Tol Low ESR Size 0505	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 39pF 1% Tol Low ESR Size 0505	Ferrite Beads 2200ohms	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 0.7pF Low ESR	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 3.6pF 250V .1pF Low ESR Size 0505	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 62pF 1% Tol Low ESR Size 0505	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 33pF 1% Tol Low ESR Size 0505	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 68pF 1% Tol Low ESR Size 0505	Multilayer Ceramic Capacitors MLCC - SMD/SMT 250 9.1pF Low ESR
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details	Details
Capacitance	33 pF	10 pF	39 pF	1.2 pF	0.7 pF	3.6 pF	62 pF	33 pF	68 pF	9.1 pF
Voltage Rating DC	250 VDC	250 VDC	200 VDC	250 VDC	250 VDC	250 VDC	200 VDC	250 VDC	200 VDC	250 VDC
Dielectric	CF	CF	CF	CF	CF	CF	CF	CF	CF	CF
Tolerance	5 %	1 %	1 %	0.1 pF	0.1 pF	0.1 pF	1 %	1 %	1 %	0.1 pF
Case Code - in	0505	0505	0505	0505	0505	0505	0505	0505	0505	0505
Case Code - mm	1414	1414	1414	1414	1414	1414	1414	1414	1414	1414
Height	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Product	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q
Length	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
Package / Case	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)	0505 (1414 metric)
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Type	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC	RF Microwave MLCC
Width	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
Packaging	Reel	Bulk	Bulk	Reel	Reel	Reel	Bulk	Bulk	Bulk	Reel
