MAL214865681E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MAL214865681E3

MAL214865681E3: DescriptionAluminum Electrolytic Capacitors - Leaded 680uF 16V 10x12mm 105 C 2000h; CategoryPassive components capacitor; File Size129KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAL214865681E3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAL214865681E3	-	-	View	Buy Now

MAL214865681E3 Overview

Aluminum Electrolytic Capacitors - Leaded 680uF 16V 10x12mm 105 C 2000h

MAL214865681E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.109 mA
length	12 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	450 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Matte Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

148 RUS

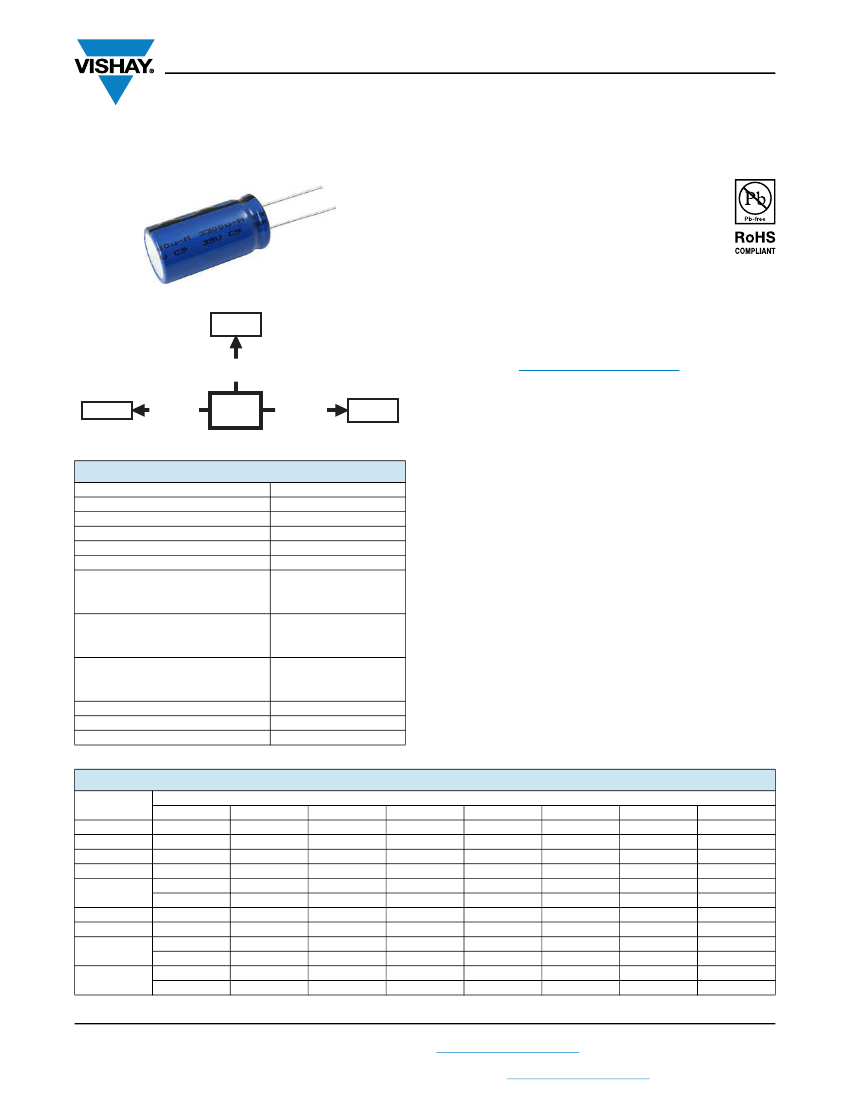

www.vishay.com

Vishay BCcomponents

Aluminum Electrolytic Capacitors

Radial, Ultra High CV per Volume, Semi-Professional

FEATURES

• Very long useful life: 3000 h at 105 °C

• Miniaturized, ultra high CV-product per unit

volume

• Polarized aluminum electrolytic capacitors,

non-solid electrolyte

• Radial leads, cylindrical aluminum case with pressure

relief, insulated with a blue sleeve

152 RMH

• Charge and discharge proof

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

high

voltage

lower

CV/volume

low Z

longer life

APPLICATIONS

048 RML

148 RUS

150 RMI

• EDP, telecommunication, industrial, automotive and

audio-video

• Smoothing, filtering, buffering in SMPS, timing

• Portable and mobile equipment (small size, low mass)

QUICK REFERENCE DATA

DESCRIPTION

Nominal case sizes (Ø D x L in mm)

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 105 °C:

Case Ø D = 10 mm

Case Ø D12.5 mm

Useful life at 105 °C:

Case Ø D = 10 mm

Case Ø D12.5 mm

Useful life at 40 °C, 1.6 x I

applied:

Case Ø D = 10 mm

Case Ø D12.5 mm

Shelf life at 0 V, 105 °C

Based on sectional specification

Climatic category IEC 60068

VALUE

10 x 12 to 18 x 35

47 μF to 22 000 μF

± 20 %

6.3 V to 100 V

-40 °C to +105 °C

1000 h

2000 h

3000 h

140 000 h

200 000 h

1000 h

IEC 60384-4 / EN 130300

40 / 105 / 56

MARKING

The capacitors are marked (where possible) with the

following information:

• Rated capacitance value (in μF)

• Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Date code, in accordance with IEC 60062

• Code indicating factory of origin

• Name of manufacturer

• Upper category temperature (105 °C)

• Negative terminal identification

• Series number (148)

SELECTION CHART FOR C

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

100

150

220

330

470

680

1000

(V)

6.3

10 x 12

10 x 16

10 x 12

10 x 16

10 x 20

10 x 12

10 x 16

10 x 20

12.5 x 20

10 x 12

10 x 16

10 x 20

12.5 x 20

12.5 x 25

16 x 20

10 x 12

10 x 16

12.5 x 20

12.5 x 25

16 x 20

16 x 25

100

10 x 12

10 x 16

10 x 20

12.5 x 20

12.5 x 25

16 x 20

16 x 25

16 x 31

Revision: 28-Feb-17

Document Number: 28315

For technical questions, contact:

aluminumcaps1@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
