5NQ821KOCAM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 5NQ821KOCAM

5NQ821KOCAM: DescriptionCeramic Disc Capacitors 500volt 820pF 10% Y5F/II; CategoryPassive components; File Size60KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

5NQ821KOCAM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5NQ821KOCAM	-	-	View	Buy Now

5NQ821KOCAM Overview

Ceramic Disc Capacitors 500volt 820pF 10% Y5F/II

5NQ821KOCAM Parametric

Parameter Name	Attribute value
Product Category	Ceramic Disc Capacitors
Manufacturer	AVX
RoHS	Details
Capacitance	820 pF
Voltage Rating DC	500 VDC
Dielectric	Y5F
Tolerance	10 %
Diameter	6 mm
Lead Spacing	0.200 in
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Termination Style	Radial
Product	Ceramic Disc Capacitors
Packaging	Ammo Pack
Application	General Purpose
Capacitance - nF	0.82 nF
Class	Class 2
Operating Temperature Range	- 30 C to + 85 C
Factory Pack Quantity	2000
Temperature Coefficient	+/- 7.5 %
Temperature Coefficient / Code	Y5F
Type	Ceramic Disc Class2 High Voltage General Purpose Capacitors
Voltage Rating	500 V

Preview

Download Datasheet

View All

Disc Ceramic Capacitors

General Specifications - Class II General Purpose

DIELECTRIC - CLASS II

These ceramic capacitors have a high dielectric constant,

what makes possible high capacitance values in

reduced dimensions, however temperature coefficient and

loss factor are greater than Class I.

Typical applications are decoupling and by pass.

Meets IEC 384-9 (1988).

HOW TO ORDER

Product Code

Voltage

101

Capacitance

Tolerance

Lead

Forming

Capacitor

Diameter

Finishing

Packaging

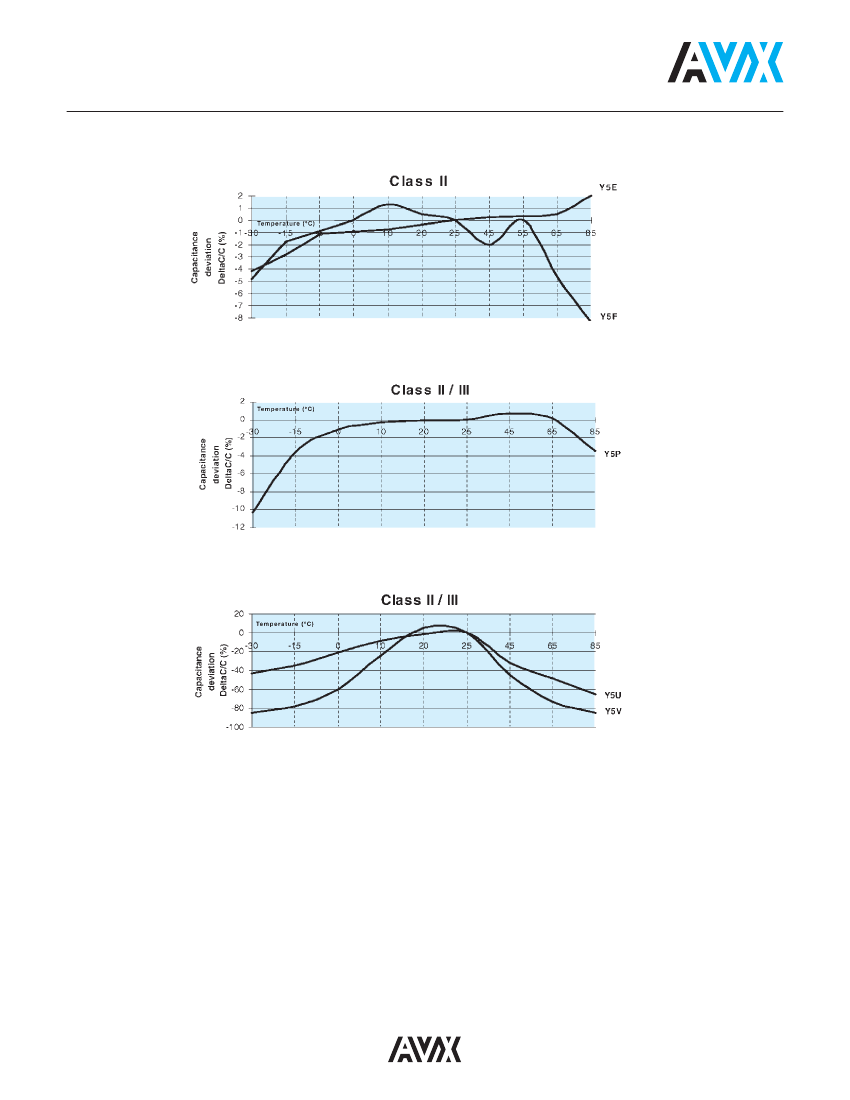

100V / 500V PERFORMANCE CHARACTERISTICS CLASS II

Voltage Rating

Measured at

Dissipation Factor (%)

Tolerance

Insulation

Resistance (IR)

Dielectric Strength

NOTE: Charging

current limited

to 50 mA

dV/dt test

Operating

Temperature

Range (ºC)

Climatic
