TNPW06033K01BECN

Description
Thin Film Resistors - SMD 3.01Kohms .1% 25ppm
CategoryPassive components    The resistor
File Size136KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TNPW06033K01BECN Online Shopping

Suppliers Part Number Price MOQ In stock
TNPW06033K01BECN - - View Buy Now

TNPW06033K01BECN Overview

Thin Film Resistors - SMD 3.01Kohms .1% 25ppm

TNPW06033K01BECN Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
package instruction, 0603
Reach Compliance Codecompliant
ECCN codeEAR99
JESD-609 codee0
Manufacturer's serial numberTNPW
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, PAPER, 7 INCH
Rated power dissipation(P)0.063 W
Rated temperature70 °C
resistance3010 Ω
Resistor typeFIXED RESISTOR
size code0603
surface mountYES
technologyTHIN FILM
Temperature Coefficient25 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage75 V

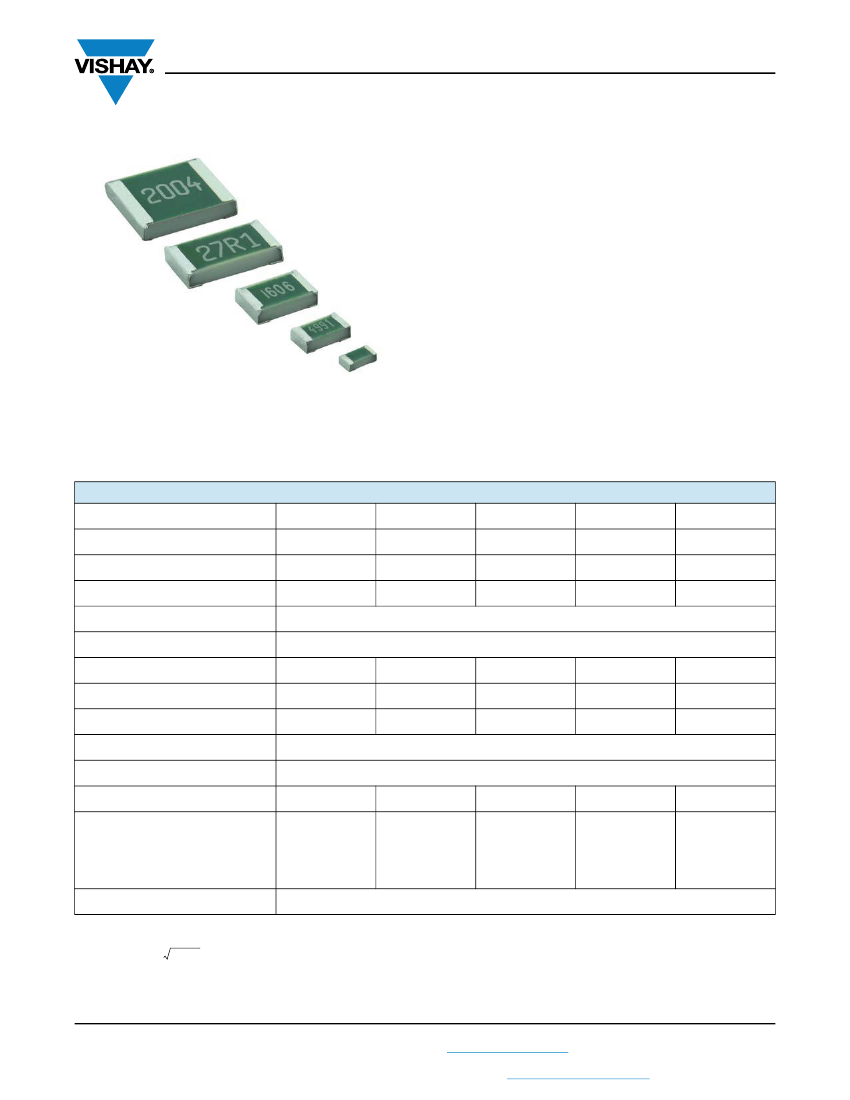

TNPW
www.vishay.com
Vishay
Lead (Pb)-Bearing High Stability Thin Film Chip Resistors
FEATURES
• Metal film layer on high quality ceramic
• SnPb termination plating, Pb content > 6 %
• Excellent overall stability at different environmental
conditions
0.05 % (1000 h rated power at 70 °C)
• Low temperature coefficient and tight tolerances (± 0.1 %;
± 10 ppm/K)
• Single lot date code available
APPLICATIONS
• Military
• Avionics
• Industrial
TNPW High Stability Thin Film Chip Resistors are the perfect
choice for most fields of modern electronics where lead
(Pb)-bearing terminations are mandatory and reliability and
stability are of major concern.
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Climatic category (LCT/UCT/days)
Rated dissipation,
P
70 (2)
Operating voltage,
U
max.
AC
RMS
or DC
Permissible film temperature,
F max.
Operating Temperature Range
Thermal resistance
(3)
Insulation voltage:
U
ins
1 min
Continuous
Failure rate: FIT
observed
75 V
75 V
100 V
75 V
200 V
75 V
0.3 x 10
-9
/h
300 V
75 V
300 V
75 V
870 K/W
550 K/W
55/125/56
0.063 W
50 V
TNPW0402
0402
RR1005M
10
to 100 k
TNPW0603
0603
RR1608M
10
to 332 k
TNPW0805
0805
RR2012M
10
to 1 M
± 1 %; ± 0.5 %; ± 0.1 %
± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K
55/125/56
0.1 W
75 V
55/125/56
0.125 W
150 V
155 °C
-55 °C to 125 °C (155 °C)
440 K/W
220 K/W
170 K/W
55/125/56
0.25 W
200 V
55/125/56
0.33 W
200 V
TNPW1206
1206
RR3216M
10
to 2 M
TNPW1210
(1)
1210
RR3225M
10
to 3.01 M
Notes
(1)
The detail specification EN140401-801 does not cover this product size.
(2)
Rated voltage
P
x
R
. The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat
flow support of the printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature is not
exceeded.
(3)
Measuring conditions in accordance with EN 140401-801.
Revision: 24-Jan-14
Document Number: 31006
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
