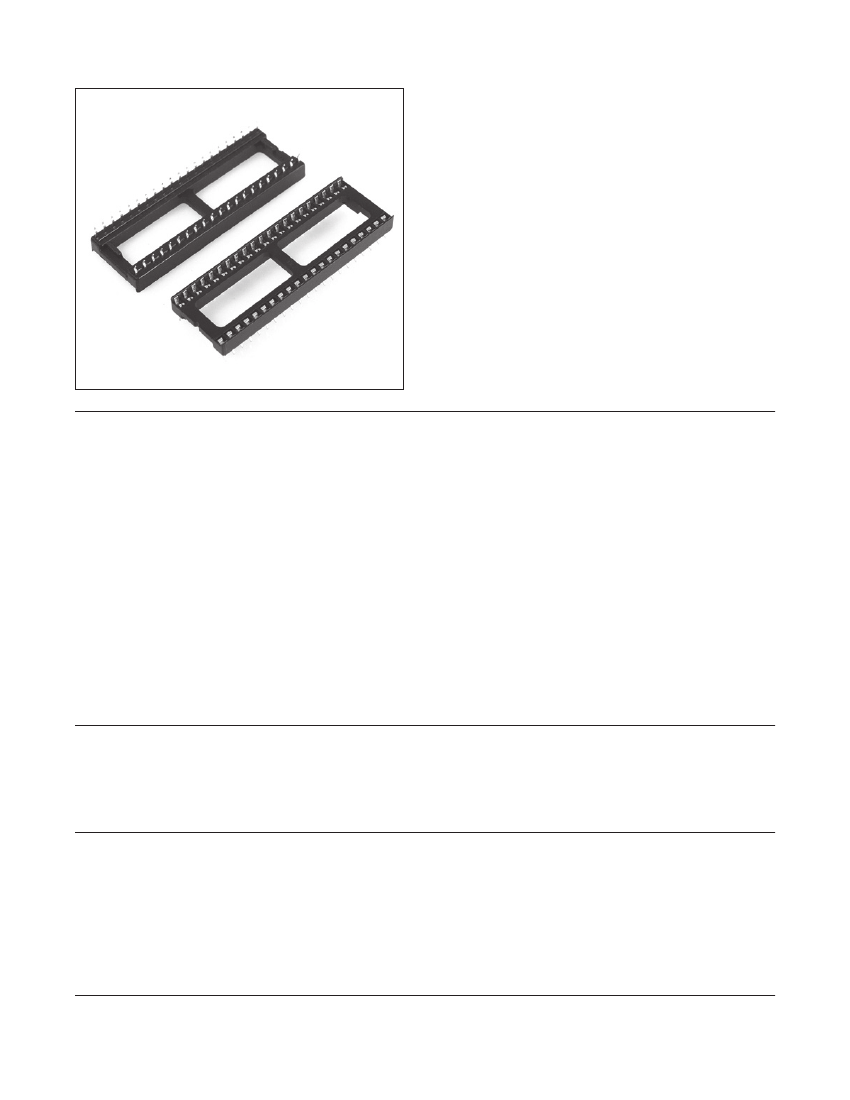

• Dual leaf, high compression contact provides reliable
termination
• Automatic insertion option is compatible with most
insertion equipment
• Side and end stackable
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3mconnector.com for compliance
information (RIA E1 and C1 Apply)
Date Modified: April 19, 2011
TS-1099-B
Sheet 1 of 2
Physical
MarkingInsulation Material:
Flammability:
Color:
Contact Material
Underplating:
Surface Plating:
Insertion/Withdrawl Forces
Insertion Force:
Withdrawl Force:
Acceptable Pin Sizes
Diameter:
Length:
Mounting Information
Hole Diameter:
Marking
Polyester Glass Filled
UL 94V-0
Black
Phosphor Bronze
35 µ" [ 0.89 µm ] min. Nickel overall
135 µ" [ 3.43 µm ] min. Matte Tin
340 grams max. per contact
80 grams min. per contact
.010″ - .011″ [ 0.25 mm - 0.27 mm ]
.100″ - .130″ [ 2.54 mm - 3.30 mm ]
.035" - .043" [ 0.90 mm - 1.10 mm ]
None
Electrical
Current Rating:
1 A
Insulation Resistance:
5,000 MΩ at 500 V
DC
Withstanding Voltage:
100 V
AC
for 1 minute
Environmental
Temperature Rating:
-25°C to +85°C
Process Rating:
260°C max. wave solder reflow only
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

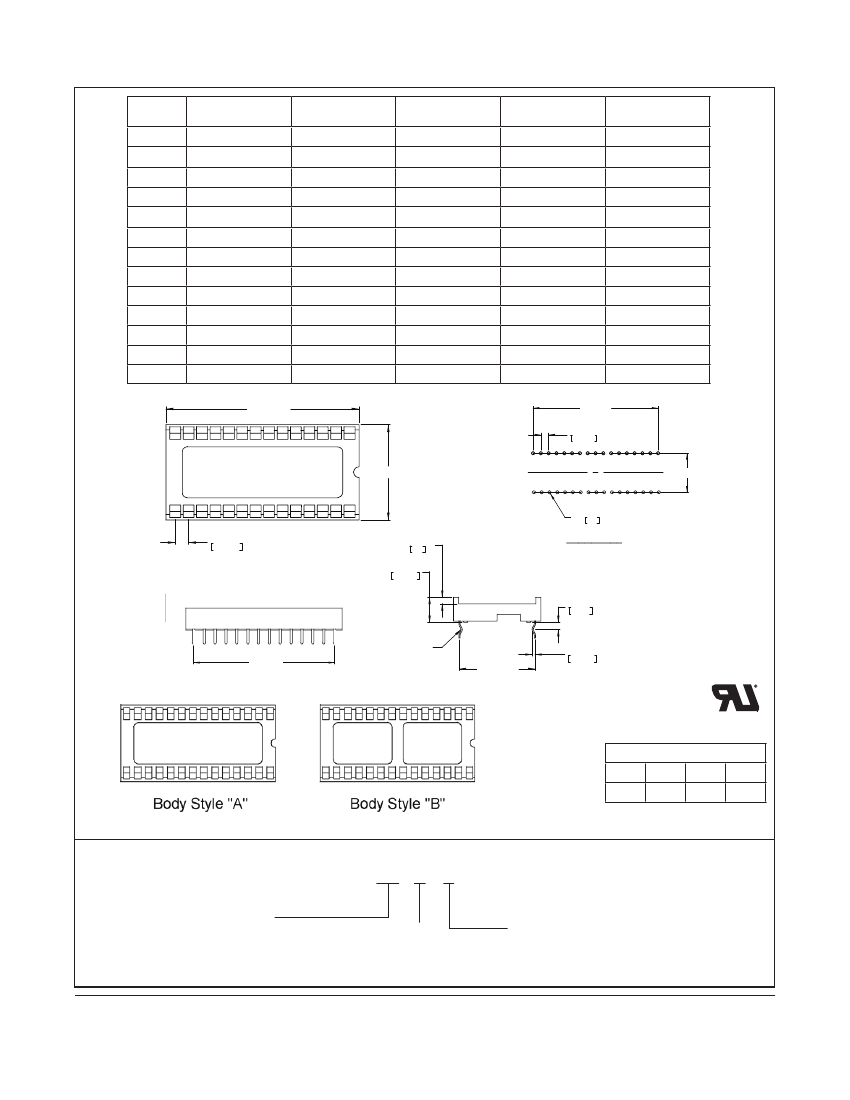

DIP Socket
Stamped and Formed, Dual-Wipe
Contact
Quantity
8
14
16
18
20
24
24
28
28
32
40
42
48
Dimension A
.395 [10.03]
.695 [17.65]
.795 [20.19]
.895 [22.73]
.995 [25.27]
1.195 [30.35]
1.195 [30.35]
1.395 [35.43]
1.395 [35.43]
1.595 [40.51]
1.995 [50.67]
2.100 [53.34]
2.395 [60.83]
DIM. "A"
4800 Series
Dimension C
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.700 [17.78]
.400 [10.16]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
Dimension D
.300 [7.62]
.600 [15.24]
.700 [17.78]
.800 [20.32]
.900 [22.86]
1.100 [27.94]
1.100 [27.94]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.900 [48.26]
2.000 [50.80]
2.300 [58.42]
D ±0.2
.100
2.54
Dimension B
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.600 [15.24]
.300 [7.62]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
Body Style
A
A
A
A
A
A
B
B
B
B
B
B
B
DIM. "C"
.039
1
B ±0.2
O
.100
2.54
.039
1
.039
.200
.200
5.08
5.08
1
PCB LAYOUT
.056
1.4 ±0.3
SELF LOCKING
BARB
.022
0.57
D ± 0.2
DIM. "B"
SELF LOCKING BARB
DIM. "B"
±0.3
Inch
[mm]
Tolerance Unless Noted
.0
inch
Note: Suitable for "lead free" wave solder only. NOT FOR REFLOW SOLDER PROCESSES.
.00
±.01
.000
±.005
±.1
[ ] Dimensions for Reference
Only
Ordering Information
Contact Quantity
(See Table)
48XX - X00X - CP
Row Spacing:
3 = .300 [ 7.62
6 = .600 [ 15.24 ]
(See Table)
Tail:
0 = Straight
4 = Kinked
TS-1099-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
