M80-8151822

Description
Analog Switch ICs 80dB 150 Ohm 250MHz CMOS RF/Video SPDT
CategoryThe connector    The connector
File Size58KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

M80-8151822 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-8151822 - - View Buy Now

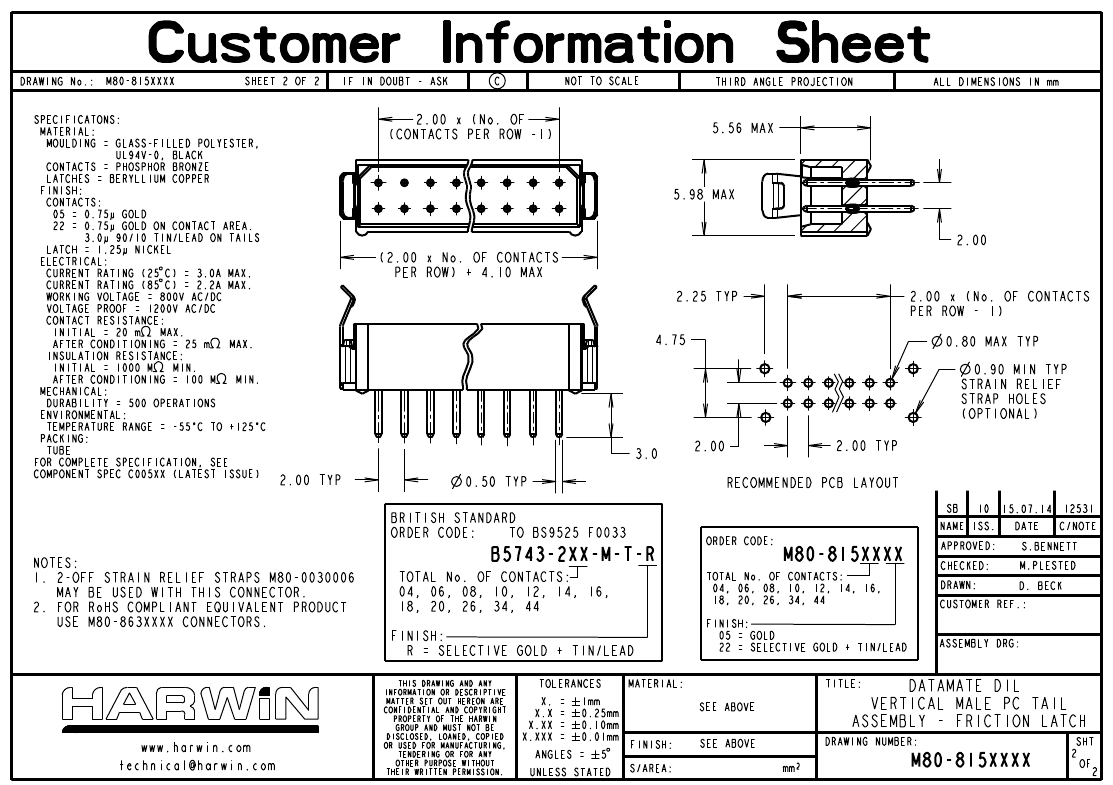

M80-8151822 Overview

Analog Switch ICs 80dB 150 Ohm 250MHz CMOS RF/Video SPDT

M80-8151822 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED, POLARIZED, SHROUDED
body width0.235 inch
subject depth0.219 inch
body length0.87 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee0
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts18
UL Flammability Code94V-0

M80-8151822 Related Products

M80-8151822 M80-8151422 M80-8154422 M80-8150822
Description Analog Switch ICs 80dB 150 Ohm 250MHz CMOS RF/Video SPDT Headers u0026 Wire Housings 7+7 DIL VERT MALE FRICTION LATCH TINLD Headers u0026 Wire Housings 22+22 DIL VERT MALE FRICTION LATCH TINLD Non-Isolated DC/DC Converters 7.5W 24V 5Vout 1.5A Horizontal Mount
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Other features LATCHED, POLARIZED, SHROUDED LATCHED, POLARIZED, SHROUDED LATCHED, POLARIZED, SHROUDED LATCHED, POLARIZED, SHROUDED
body width 0.235 inch 0.235 inch 0.235 inch 0.235 inch
subject depth 0.219 inch 0.219 inch 0.219 inch 0.219 inch
body length 0.87 inch 0.713 inch 1.894 inch 0.476 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30)
Contact completed and terminated Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Contact point gender MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO
IEC compliance NO NO NO NO
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER
JESD-609 code e0 e0 e0 e0
MIL compliance NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO
Installation option 1 LATCH LATCH LATCH LATCH
Installation option 2 LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE
PCB row number 2 2 2 2
Number of rows loaded 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.118 inch 0.118 inch 0.118 inch 0.118 inch
Terminal pitch 2 mm 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER SOLDER
Total number of contacts 18 14 44 8
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
Maker Harwin - Harwin Harwin
