MDF6-12DP-3.5DSA datasheet, PDF

MDF6-12DP-3.5DSA: Description12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size197KB，5 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

MDF6-12DP-3.5DSA Overview

12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
body width	0.52 inch
subject depth	0.512 inch
body length	0.965 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.138 inch
Match contact row spacing	0.197 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	3.5 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.3892 N

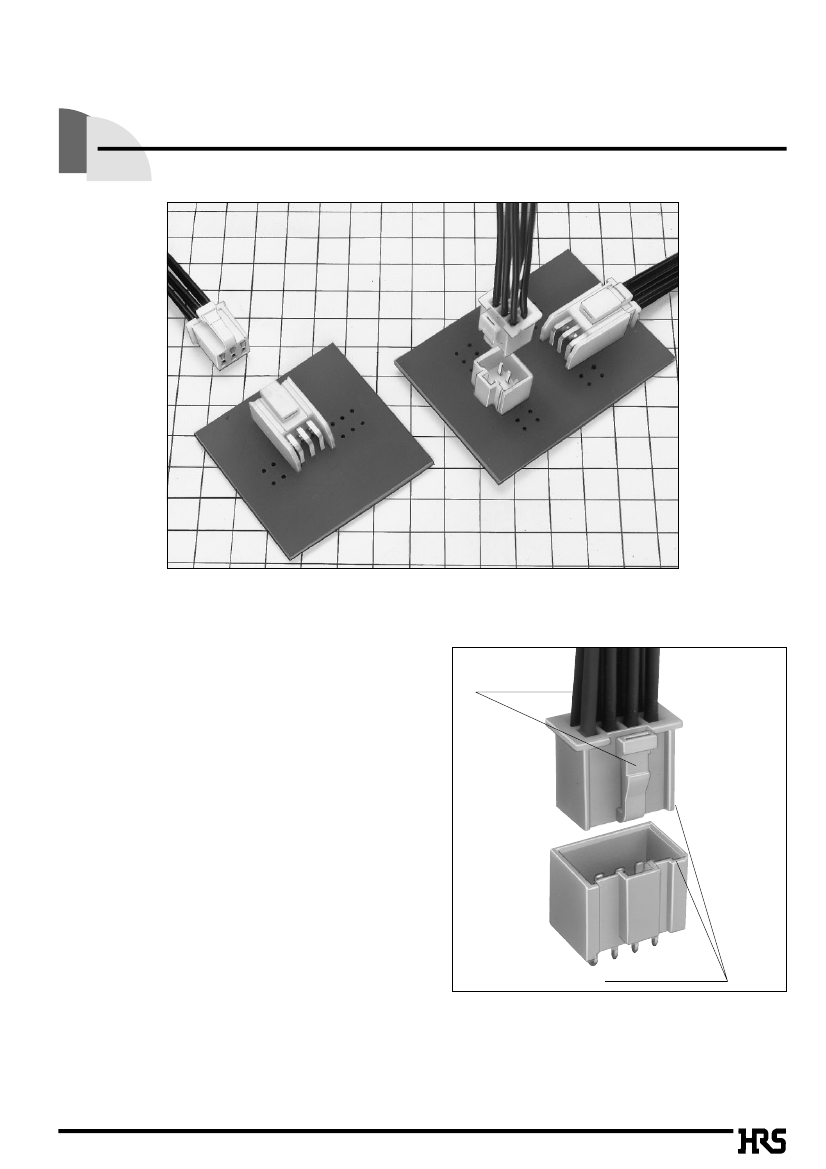

3.5mm Pitch Miniature Double Row Connector for Secondary Power (Product Compliant to UL/CSA Standard)

MDF6 Series

sFeatures

1. Pitch 3.5mm Miniature Type

This is a space saving miniature connector where the adjacent

contact pitch is set to 3.5mm and the opposite length is set to

5mm double-row alignment.

Inner type full lock

2. Current Capacity Secures 7A

Despite miniature power connector, the current capacity 7A is

secured using the AWG No.16 cable.

3. Box Type Header

The box type header secures scoop-proof insertion, and perfectly

prevents mis-insertion.

4. Inner Type Full Lock Adopted

Adopting the inner type full lock which the locking area is not

exposed to the outside, the connector can be engaged under the

high reliable and stable conditions.

sApplications

Secondary power units for various equipment

Mis-insertion protector

B111
