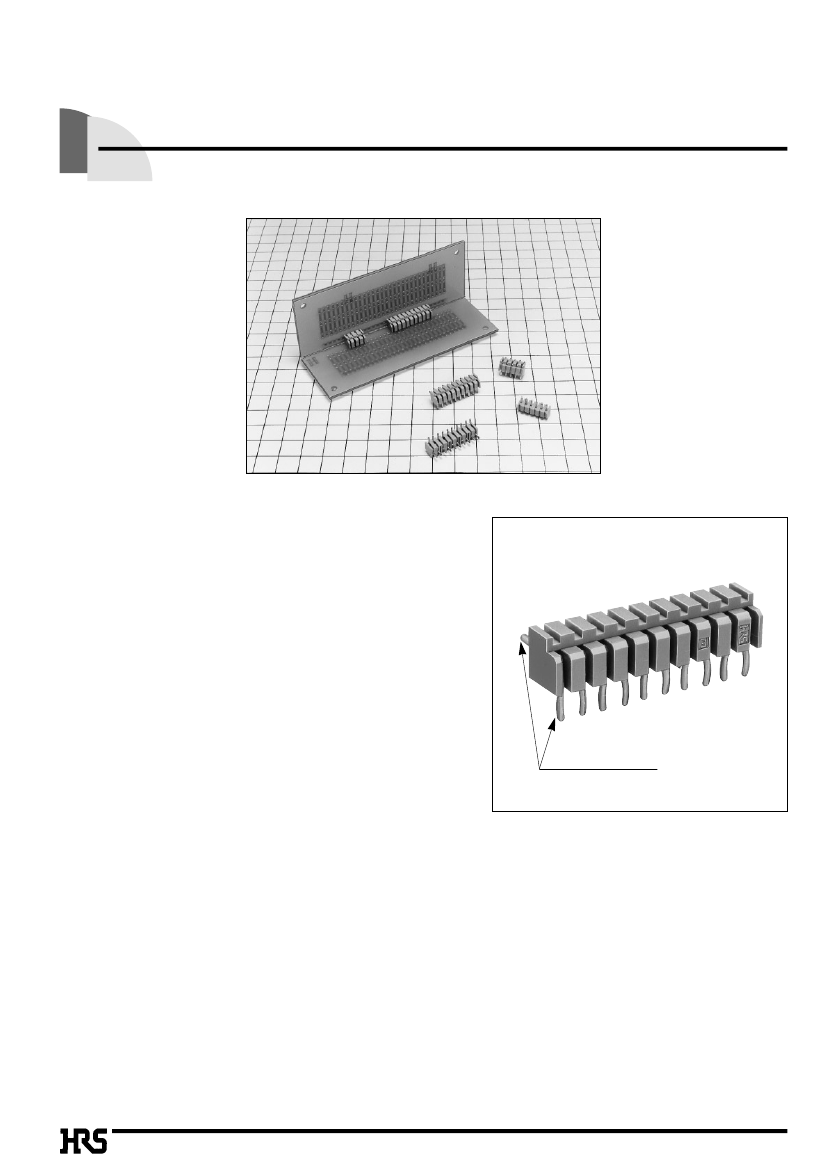

2.5mm Pitch Board to Board Vertical Post Header
MDF14A Series
sFeatures
1. Service Efficiency Up contact and contact.
The post header is developed in the special design capable
of vertically connecting the board unnecessary for insertion
or extraction.
The post header can be connected in combination of the
receptacle with the plug at low cost.
2. Current Capacity [5A]
By adopting the 0.8mm round pin as the post pin, the pin
strength can be enhanced as well as the current capacity
can be maintained at 5A approximately.
3. Board Pre-fixed Mechanism
The kink process is provided for the board pre-fix process.
4. Pin Extraction Specification
The post header corresponds to individual pin extraction
specifications.
Kink process
sApplications
Various power supply units, and secondary power unit for
the set
B136
sProduct
Specifications
Rating
Current rating : 5A
Operating Temperature Range: -30
to
+85ç (Note 1) Storage Temperature Range: -10
to
+60ç(Note 2)
Storage Moisture Range: 40
to
70%
(Note 2)
Voltage rating : 250V AC Operating Moisture Range: 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Vibration
1000M
ohms
min.
Specification
500V DC
1500V AC/1 minute
No flashover or insulation breakdown.
No damage, cracks, or parts looseness.
Condition
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes¡5
to
35ç: 10 minutes max.¡
(-85ç:
30 minutes¡5
to
35ç: 10 minutes max.) 5 cycles
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
4.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
5. Temperature Cycle
No damage, cracks, or parts looseness.
6. Resistance to Soldering heat
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Pin Header
Part
Insulator
Contact
Material
Polyamide
Brass
Finish
Beige
Tin plated
Remarks
UL94V-0
________
Note: Hirose's tin plating process takes measures against whisker.
sOrdering
Information
qConnector
MDF14A
q
q
Series Name
e
Connector Type
P : Pin Header
: MDF 14A
-
*
P - 2.5 DS
w
e
r
t
r
Contact pitch: 2.5mm
t
Connection Type
DS : Right Angle
w
Number of contacts: 4
to
10
B137

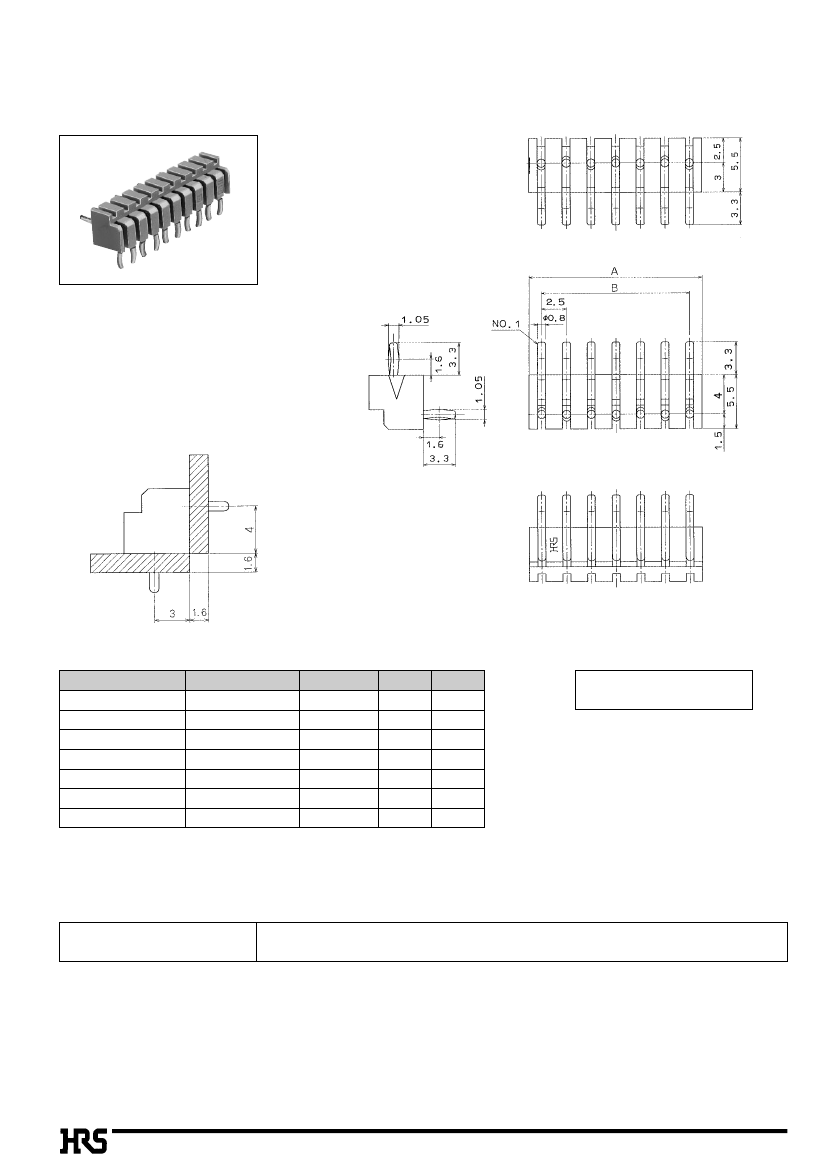

sPin
Header
qApplicable
Through-hole Diameter :
Ø1.0
+0.1
+0
BApplication
Pattern
Note:The kink process is alternately performed in
optional directions.
Unit: mm
Part Number
MDF14A- 4P-2.5DS
(**)
MDF14A- 5P-2.5DS
(**)
MDF14A- 6P-2.5DS
(**)
MDF14A- 7P-2.5DS
(**)
MDF14A- 8P-2.5DS
(**)
MDF14A- 9P-2.5DS
(**)
MDF14A-10P-2.5DS
(**)
CL No.
547-0242-4-
**
547-0241-1-
**
547-0240-9-
**
547-0239-0-
**
547-0238-7-
**
547-0237-4-
**
547-0236-1-
**
Number of Contacts
4
5
6
7
8
9
10
A
10.0
12.5
15.0
17.5
20.0
22.5
25.0
B
7.5
10.0
12.5
15.0
17.5
20.0
22.5
[Specific No.]
–
* *
,
(*
*)
None :100 pcs. per bag
Note: A packaging quantity is delivered by the bag unit (100 pcs.). If needed,
please order the products per bag.
BPrecautions
1. Recommended Soldering Condition
Flow: 250ç for 3 seconds
Manual soldering: 290ç for 2 seconds
B138
