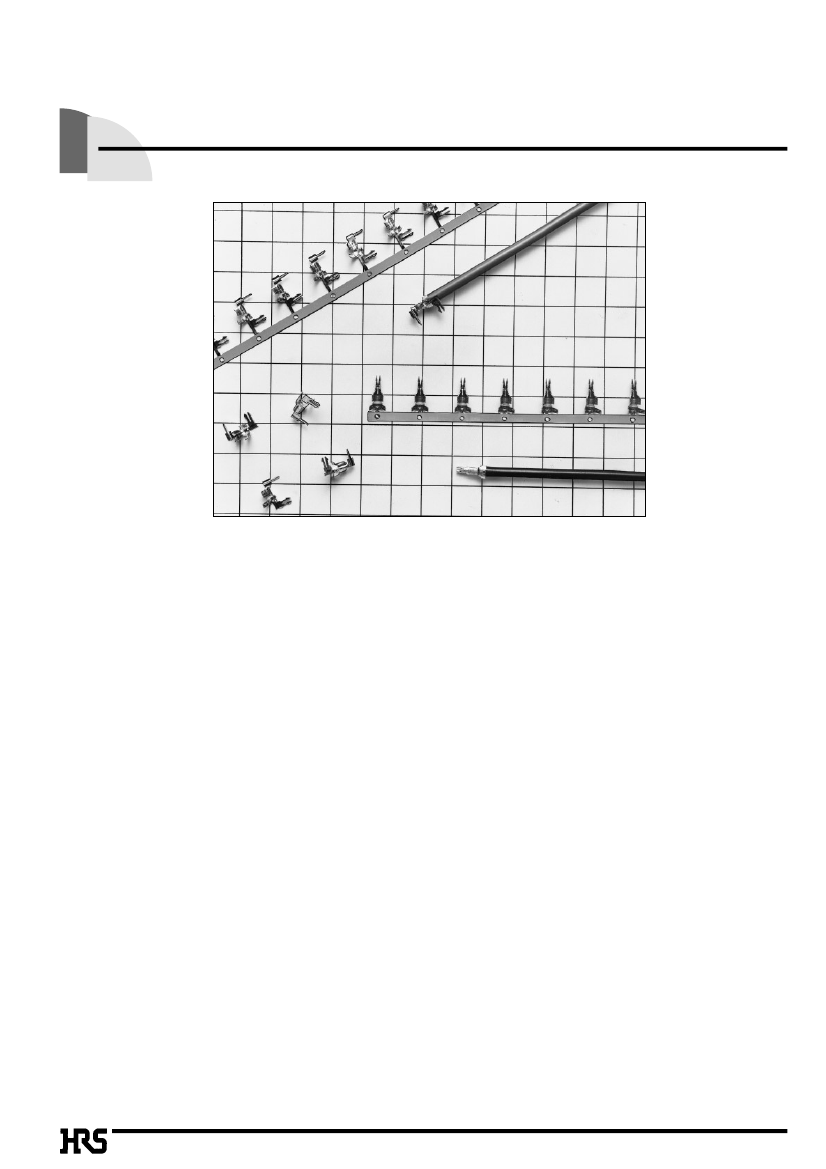

Crimping Contact Directly Mounted on Board

Crimping Contact Directly Mounted on Board

MDF12,MDF27 Series

sFeatures

1. Cable Direct Mounting Service Improved

The existing cable core soldered directly on the board is remade into the crimping contact, which can enhance the service

efficiency and the reliability.

Achieves pre-soldering fixation according to the board pre-fixed style, and enhances the service efficiency.

Accepts a load to the cable at the contact, and prevents contact wire cutting.

2. Cable Lateral Unreeling Possible

The cable can be unreeled lateral to the board by using the angle type MDF27.

3. Current Capacity Secured Corresponding to Thick Cable

The cable size corresponds to AWG22 to 14, while AWG14 secures 15A current capacity.

In addition, since the contacts are provided corresponding to UL1007 and UL1015 jackets, the contact can be chosen

according to applications.

sApplications

Various kinds of electronic equipment power supplies, etc.

B194

	MDF12A-1416P	MDF27A-1822P	MDF27A-1416P
Description	Crimping Contact Directly Mounted on Board	Crimping Contact Directly Mounted on Board	Crimping Contact Directly Mounted on Board
