MDA6310C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> MDA6310C

MDA6310C: Description14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm; CategoryLED optoelectronic/LED; File Size344KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

MDA6310C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MDA6310C	-	-	View	Buy Now

MDA6310C Overview

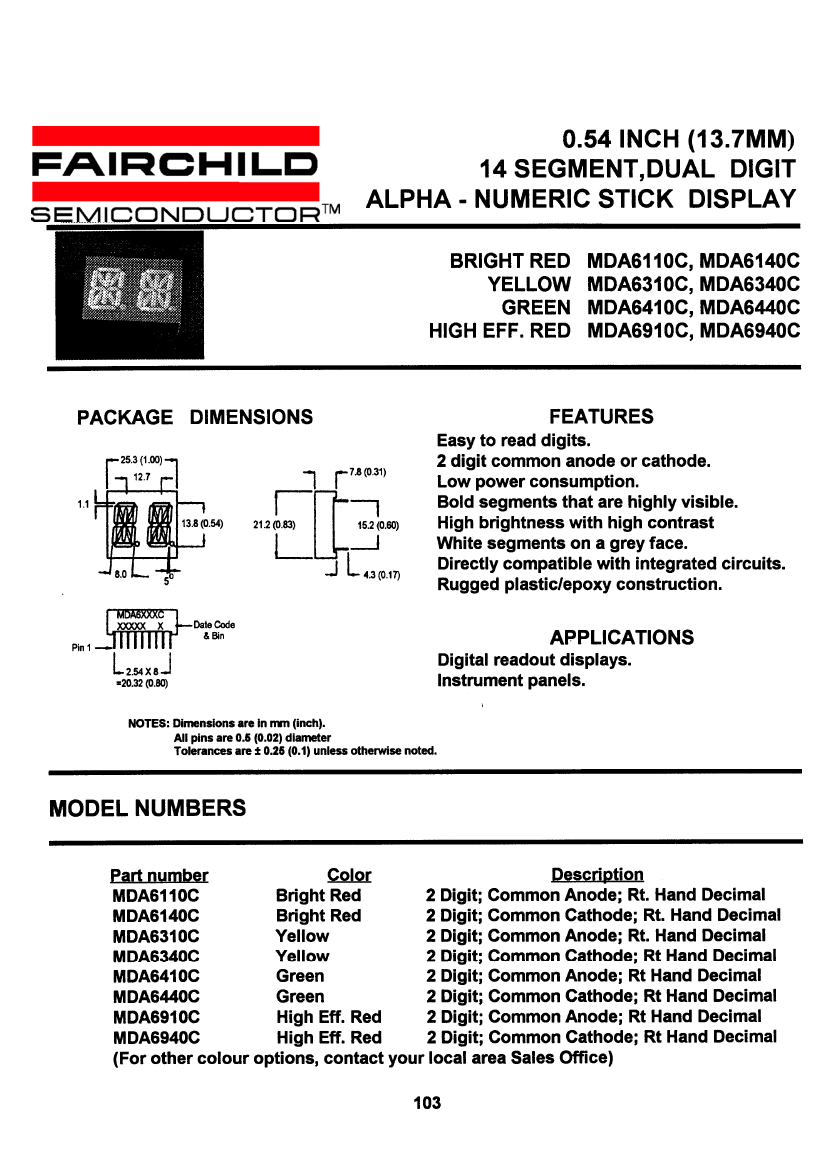

14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm

MDA6310C Parametric

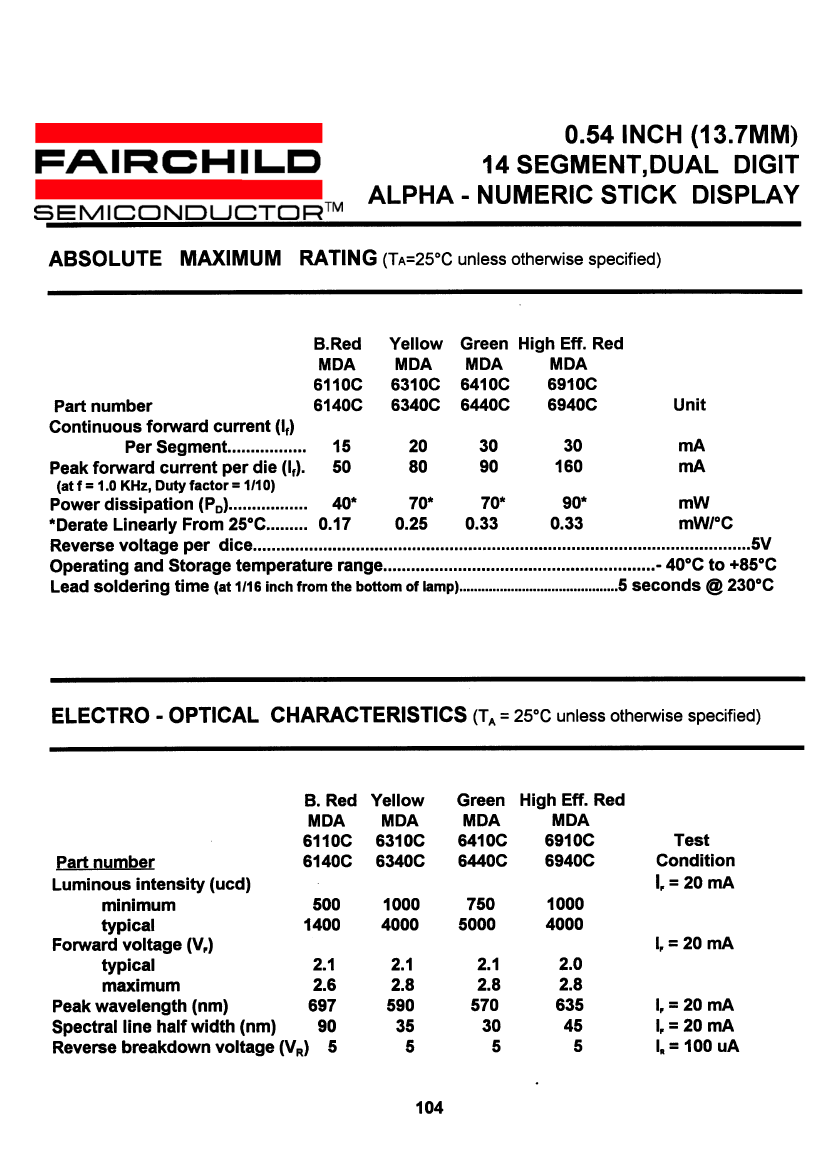

Parameter Name	Attribute value
Number of functions	2
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
Processing package description	PLASTIC PACKAGE-18
state	Active
Optoelectronic device type	14 SEG ALPHANUMERIC LED DISPLAY
color	GREEN

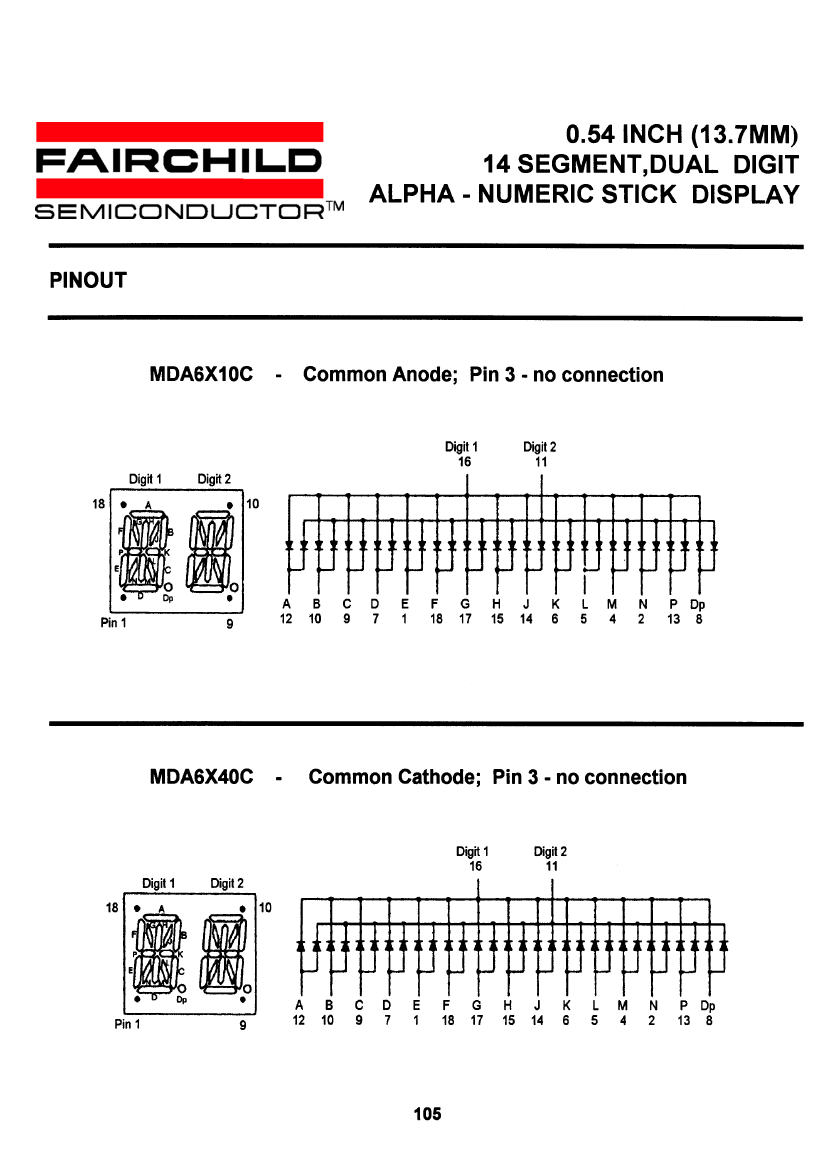

structure	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	13.8 mm
forward_current_max	0.0300 A
dditional_feature	IC COMPATIBLE

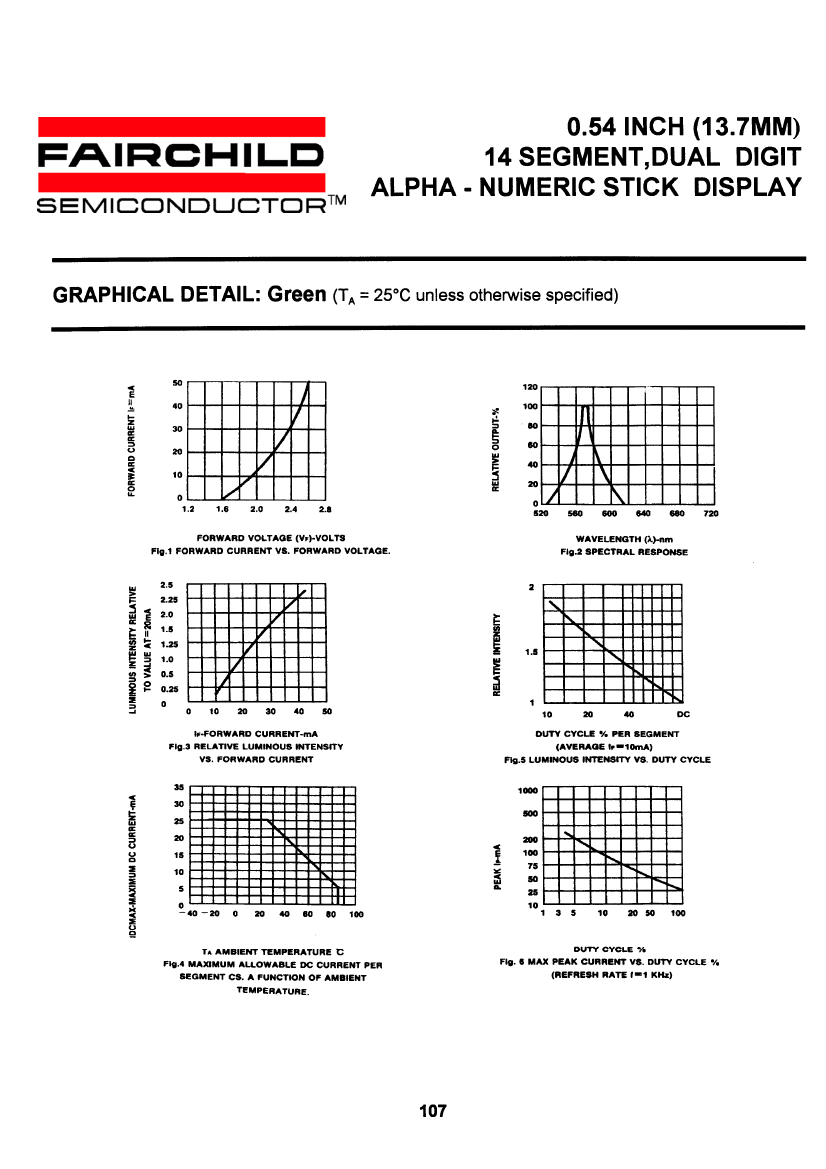

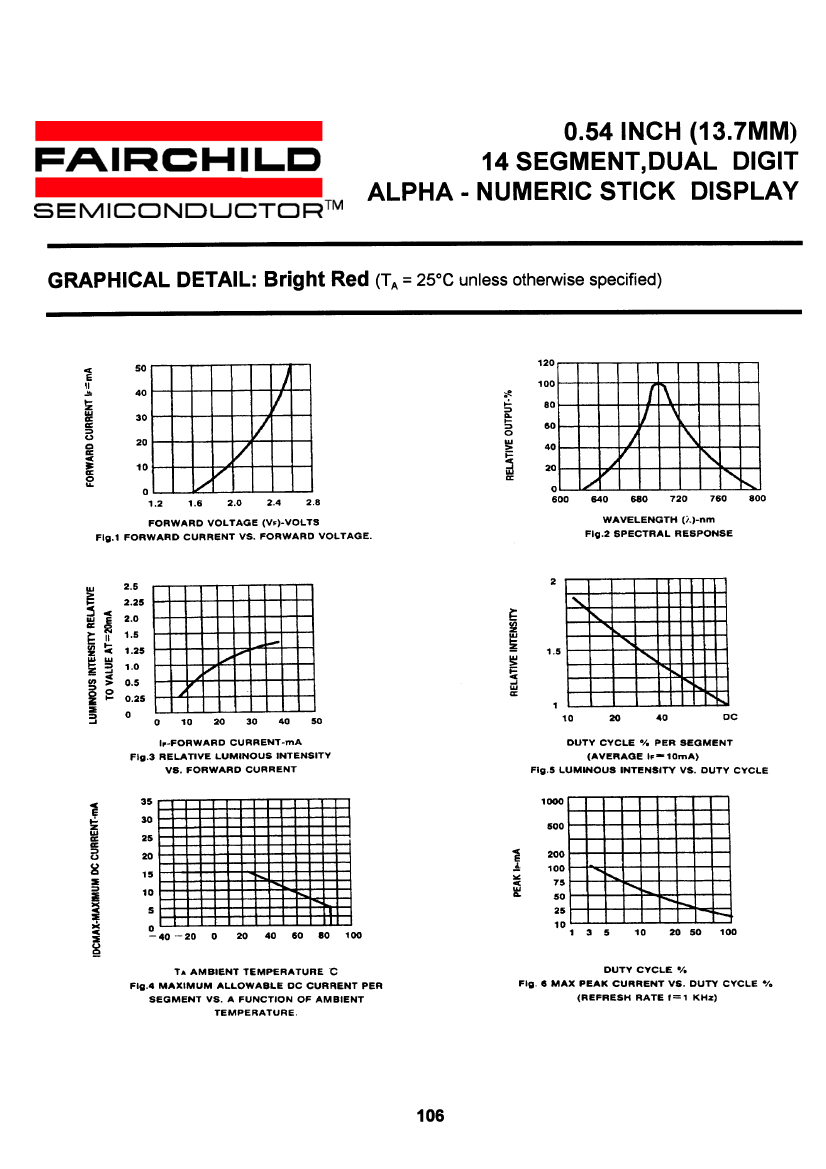

Preview

Download Datasheet

View All

MDA6310C Related Products

	MDA6310C	MDA6940C	MDA6910C	MDA6410C	MDA6440C	MDA6340C	MDA6140C	MDA6110C
Description	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm	14 SEG ALPHANUMERIC DISPLAY, GREEN, 13.8 mm
Number of functions	2	2	2	2	2	2	2	2
Minimum operating temperature	-40 Cel	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 Cel
Maximum operating temperature	85 Cel	85 Cel	85 °C	85 °C	85 °C	85 °C	85 °C	85 Cel
color	GREEN	GREEN	HIGH EFFICIENCY RED	GREEN	GREEN	YELLOW	BRIGHT RED	GREEN
Display height	13.8 mm	13.8 mm	13.72 mm	13.72 mm	13.72 mm	13.72 mm	13.72 mm	13.8 mm
Is it Rohs certified?	-	-	conform to	conform to	conform to	conform to	conform to	-
Reach Compliance Code	-	-	compli	compli	compli	compli	compli	-
Other features	-	-	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	-
color@wavelength	-	-	Orange-Red	Gree	Gree	Yellow	Red	-
Configuration	-	-	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	-
Maximum forward current	-	-	0.03 A	0.03 A	0.03 A	0.02 A	0.015 A	-
Maximum forward voltage	-	-	2.8 V	2.8 V	2.8 V	2.8 V	2.6 V	-
JESD-609 code	-	-	e3	e3	e3	e3	e3	-
Number of characters	-	-	2	2	2	2	2	-
Optoelectronic device types	-	-	14 SEG ALPHANUMERIC LED DISPLAY	14 SEG ALPHANUMERIC LED DISPLAY	14 SEG ALPHANUMERIC LED DISPLAY	14 SEG ALPHANUMERIC LED DISPLAY	14 SEG ALPHANUMERIC LED DISPLAY	-
peak wavelength	-	-	635 nm	570 nm	570 nm	590 nm	697 nm	-
Terminal surface	-	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-
