3M
™
SLiC
™
Fiber Aerial Terminal
Closure 530
With Internal Drop Termination for Factory-Terminated
External Cable Assembly Module (ECAM) FD Drop
is an aerial, strand-mount, free-breathing (breathable) fiber terminal for FTTP (fiber
to the premises) applications. It can be used for inline, taut sheath and butt splicing
configurations.

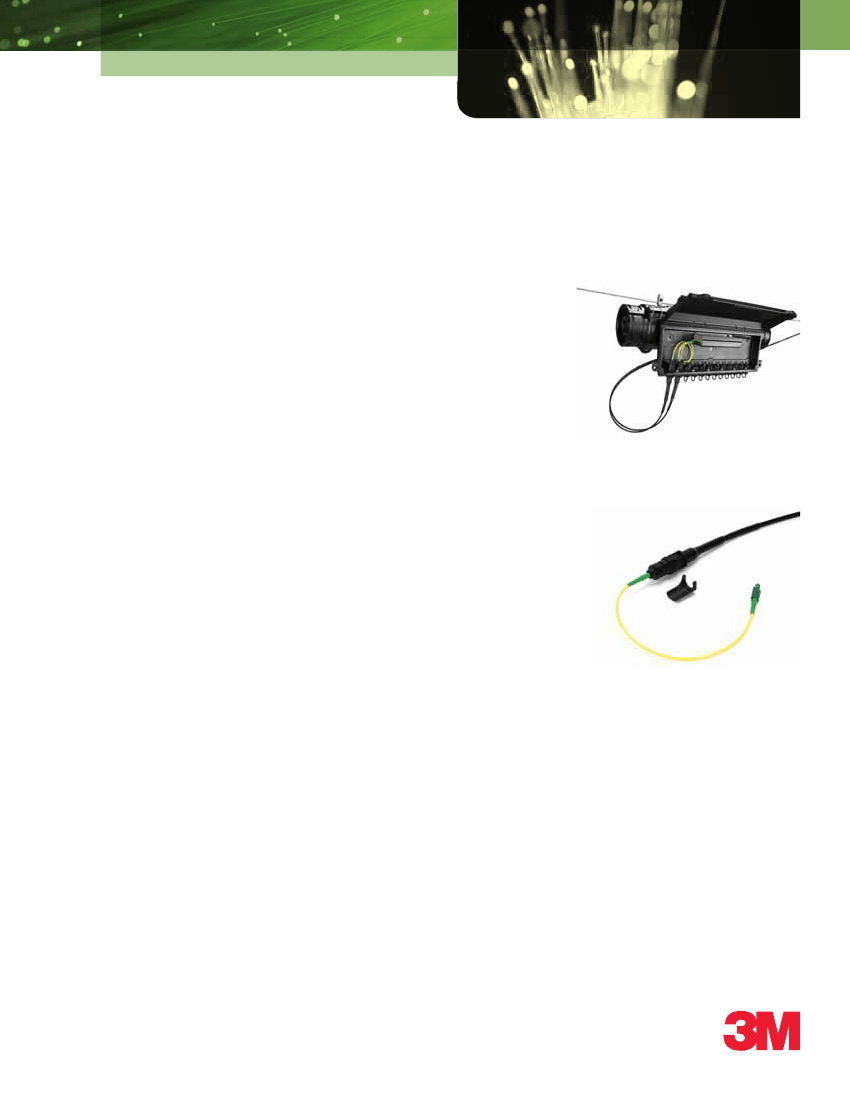

The 3M
™
SLiC
™
Fiber Aerial Terminal Closure 530 with Internal Drop Termination
The SLiC 530 terminal closure is comprised of two separate chambers: a distribution
cable splice chamber and a drop termination chamber. The distribution cable splice
chamber houses the fiber splices and stores buffer tube or ribbon fiber slack while
the drop termination chamber is used to house all drop terminations.
This craft separation feature allows the installer (I&R craftsperson) to terminate
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530
with Internal Drop Termination for Factory-
Terminated ECAM FD Drop Cable
and maintain the drop without entering the splice chamber. Also, the terminal box
network security.
is equipped with tabs which allow the terminal box to be locked to provide greater
The SLiC 530 accommodates 4, 6, 8, or 12 3M
™
External Cable Assembly Module
(ECAM) FD Factory-Terminated SC/APC or SC/UPC Fiber Drops. In the SLiC 530,
the drop cable is terminated inside the terminal. This helps to reduce the potential
for connector contamination and provides better drop security than externally
terminated drop cables.
3M
™
External Cable Assembly Module (ECAM)
FD Factory-Terminated Fiber Drop
The SLiC 530 is designed to Telcordia’s GR-771-CORE Issue 1, July 1994, Generic
Requirements for Fiber Optic Splice Closures—Free-breathing closures.
The SLiC 530 is Rural Utilities Services (RUS) Listed.
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530 with External Cable Assembly Module
(ECAM) FD
Features
One-piece construction
Separate splice and drop termination
chambers
Optional lightweight, easy to install
splicing workstation
Easy to install and use 3M
™
SLiC
™
Fiber Splicing
Workstation allows the terminal closure to be
spliced on the strand.
Factory installed pigtails and
ribbon fanouts
Double-walled molded construction
Few loose parts
Multiple splicing applications
Benefits
Easy installation and permits access to the cable splice
without removing the terminal closure body
Allows easy and secure access for service connections
and drop maintenance (cleaning and testing) without
having to enter the splice chamber
Provides a stable work surface that secures the fusion
splicer and cleaver. This helps to simplify the installation
and splicing process when splicing on the strand.
Allows for fast and easy installation of the terminal closure
while reducing the potential for damage to the fibers and
connectors during installation
Durable protection from bending & cracking in the most
extreme environments
Limited number of components needed to install the
terminal closure thus decreasing the installation time
Accommodates in-line, butt, and taut sheath applications.
Allows for up to 96 single fusion or 288 mass fusion
branch splicing.
Slack storage basket provides separate area for routing,
protecting, and “expressing” buffer tubes and ribbon fibers
Easy installation and re-entry
Permits the closure chamber to be extended to protect
damaged sheath or accommodate larger openings for taut
sheath applications
Factory installed splitters for 1 x 4 and 1 x 8 distributed
splitting applications are available
Spacious fiber management area
No special tools required
Interlocking Ends
Adaptable to both centralized and
distributed splitting networks
Specifications
Feature
Dimensions (L x H x W) mm (in.)
Cable entry ports & size
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530
Internal ECAM FD
762 x 264 x 218 (30 x 10.4 x 8.6)
4 ports
2 ports per end
5-36 mm (0.2-1.4")
Yes; 20" sheath opening
Yes
3M
™
Fiber Optic Splice Tray 2527
2 Trays
96 single fusion splices
288 mass fusion splices
4, 6, 8 or 12
Bottom of the terminal box
Separate enclosure for splicing and separate enclosure
for terminations
Taut sheath Application
Extendible for taut sheath
and repair splices
Splice tray included for
drop terminations
Branch splice capacity
Number of drop ports
Drop cable entry
Craft separation
Ordering Information
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530 Configuration Guide
SLFT
Size
530
XXX
X
XX
XX
XXXX
XXX
X
Special Feature
5" x 30"
T
R
P
Taut Sheath
RUS
Pigtail Splice
Terminal Box Type
B
C
D
ECAM Drop Port Entry, Bottom; 8-port
ECAM Drop Port Entry, Bottom; 12-port
HFOC (Hardened Fiber Optic
Connector), Bottom Entry
N
A
B
C
Trays
0 …3
X
A
B
# of trays
Connector Type
XX
DA
DV
X
A
B
X
A
C
None
SC/UPC
LC/UPC
None
External Adapter
External Adapter (RUS/OUS)
Not applicable
EP
DW
None
2527
2527-48-DF
Tray Type
D
None
Splitters (Qnty, Type, Input/Output Fibers)
1, 1 x 4 PLC, Input Spliced/Output Connectorized
1, 1 x 8 PLC, Input Spliced/Output Connectorized
1, 1 x 4 PLC, Input/Output Spliced (DS only)
1, 1 x 8 PLC, Input/Output Spliced (DS only)
SC/APC
LC/APC
Connectors
0 …12
# of connectors
for HFOC, ECAM FD, Field Terminated, & Pigtail Spliced Drops
Direct Spliced Applications
DS
Direct Spliced Drops
External Adapter
Fiber Pigtail Style
900 µm loose buffer tube, 1 meter
250 µm ribbon to 900um fanout, 3 meters
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530 with External Cable Assembly Module (ECAM) FD
Ordering Information
Product No.
SLFT-530-B-1A-04-EPXA
SLFT-530-B-1A-06-EPXA
SLFT-530-C-1A-08-EPXA
SLFT-530-C-1A-12-EPXA
SLFT-530-B-1A-04-EPXC
SLFT-530-B-1A-06-EPXC
SLFT-530-C-1A-08-EPXC
SLFT-530-C-1A-12-EPXC
SLFT-530-B-1A-04-DAXA
SLFT-530-B-1A-06-DAXA
SLFT-530-C-1A-08-DAXA
SLFT-530-C-1A-12-DAXA
Product Description
SLiC530 Tray 4 SC/APC Pigtails
SLiC530 Tray 6 SC/APC Pigtails
SLiC530 Tray 8 SC/APC Pigtails
SLiC530 Tray 12 SC/APC Pigtails
SLiC530 Tray 4 SC/AP Ribbon Fanout
SLiC530 Tray 6 SC/AP Ribbon Fanout
SLiC530 Tray 8 SC/AP Ribbon Fanout
SLiC530 Tray 12 SC/AP Ribbon Fanout
SLiC530 Tray 4 SC/UPC Pigtails
SLiC530 Tray 6 SC/UPC Pigtails
SLiC530 Tray 8 SC/UPC Pigtails
SLiC530 Tray 12 SC/UPC Pigtails
Stock No.
80611327224
80611327232
80611327240
80611327257
80611327265
80611327273
80611327281
80611327299
80611327307
80611327315
80611327323
80611327331
Trays
Type Qty
2527
2527
2527
2527
2527
2527
2527
2527
2527
2527
2527
2527
1
1
1
1
1
1
1
1
1
1
1
1
Pigtail
SC/UPC
Ribbon
Fanout
SC/APC
Pigtail
SC/APC
Fiber Type
Connector
Type
Qty
4
6
8
12
4
6
8
12
4
6
8
12
3M
™
SLiC
™
Fiber Aerial Terminal Closure 530 with
External Cable Assembly Module (ECAM) FD

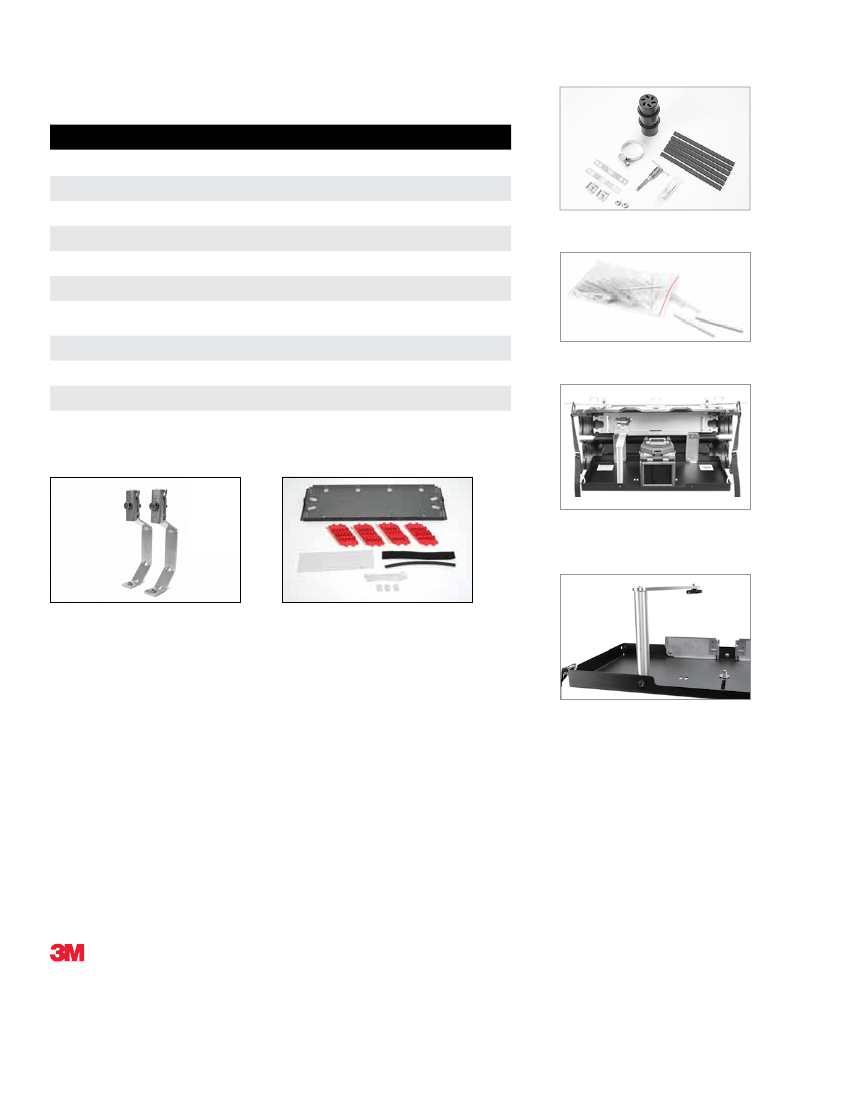

Accessories
Product No.
2527
SLFC/T-6-PORT-FLAT
SLiC-AC-HB2
AC-HB4
SLiC-ES/7TC/E
SLiC-ES/5TC/E
4460-D/FO
25T-BEE6
SCAPC-900-COL1-4
SCAPC-900-COL5-8
SCAPC-900-COL9-12
Product Description
Fiber Optic Splice Tray 2527
SLiC 530/533/733 6-port Flat Drop or Cable Entry Kit
Extended Hanger Bracket
Aerial Offset Hanger Bracket, 4.0", set
7" Rubber End Seal 3-port Version E
SLiC closure 5" Rubber End Seal 3-port Version E
3M
™
Scotchlok
™
Shield Bond Connector Assembly
4460-D/FO
25T-BBE6 (½" X 25') with eyelets
SCAPC 900 µm Pigtal Kit Colors 1-4
SCAPC 900 µm Pigtal Kit Colors 5-8
SCAPC 900 µm Pigtail Kit Colors 9-12
3M Stock No.
80611175581
80611317225
80610846778
80611314701
80611316532
80611316540
80610844443
80610096150
80611320567
80611320575
80611320583
3M
™
Fiber Optic Splice Sleeve 2170
3M
™
SLiC
™
6-port Grommets
3M
™
SLiC
™

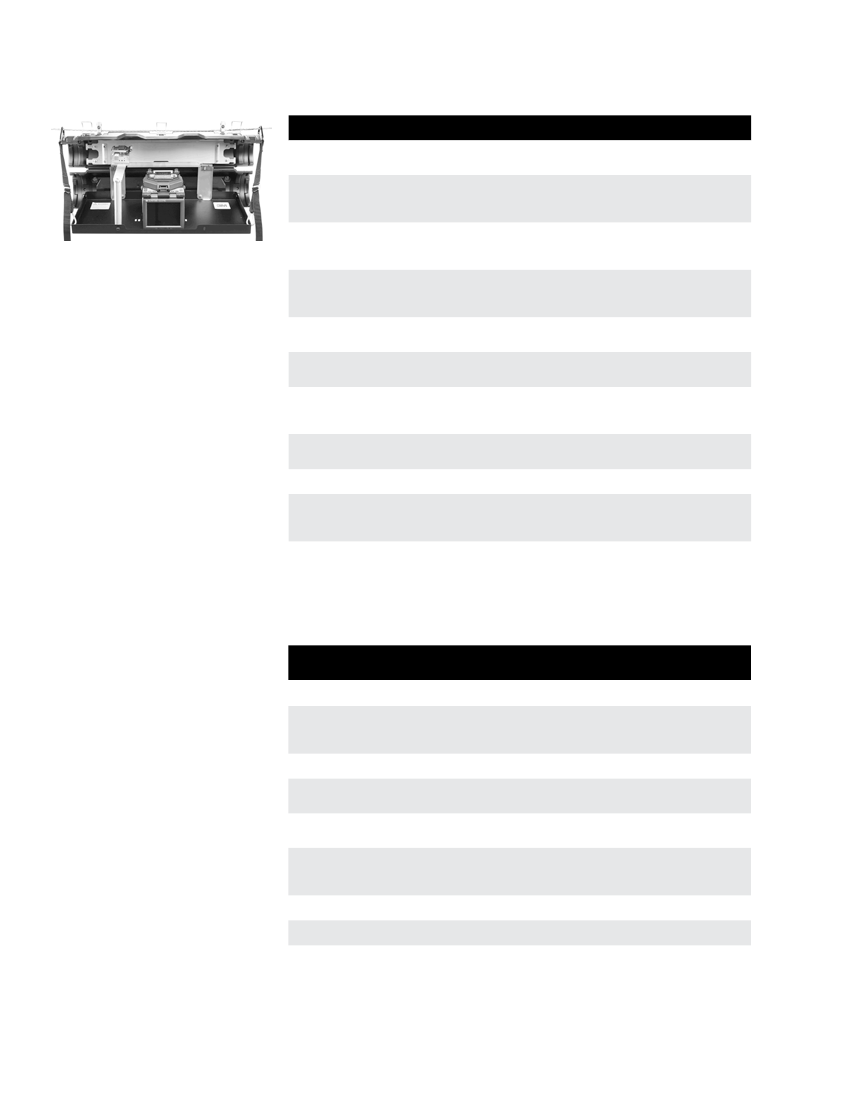

Fiber Splicing Workstation
3M
™
Offset Hanger Bracket AC-HB4
3M
™
Fiber Optic Splice Tray 2527
3M, SLiC and Scotchlok are trademarks of 3M Company.
3M
™
SLiC
™
Fiber Splicing Workstation
Cleaver Arm
