This document was generated on 04/24/2015
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
505070-0610
Active
SlimStack™ 0.35mm pitch Board-to-Board Connectors
0.35mm Pitch SlimStack Armor™ Board-to-Board Plug Connector, Surface Mount,
Dual Row, Vertical, 0.60mm Stacking Height, 2.00mm Width, 6 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-505066-001 (PDF)
Application Specification AS-505066-001 (PDF)
Packaging Specification SPK-505070-001 (PDF)
RoHS Certificate of Compliance (PDF)

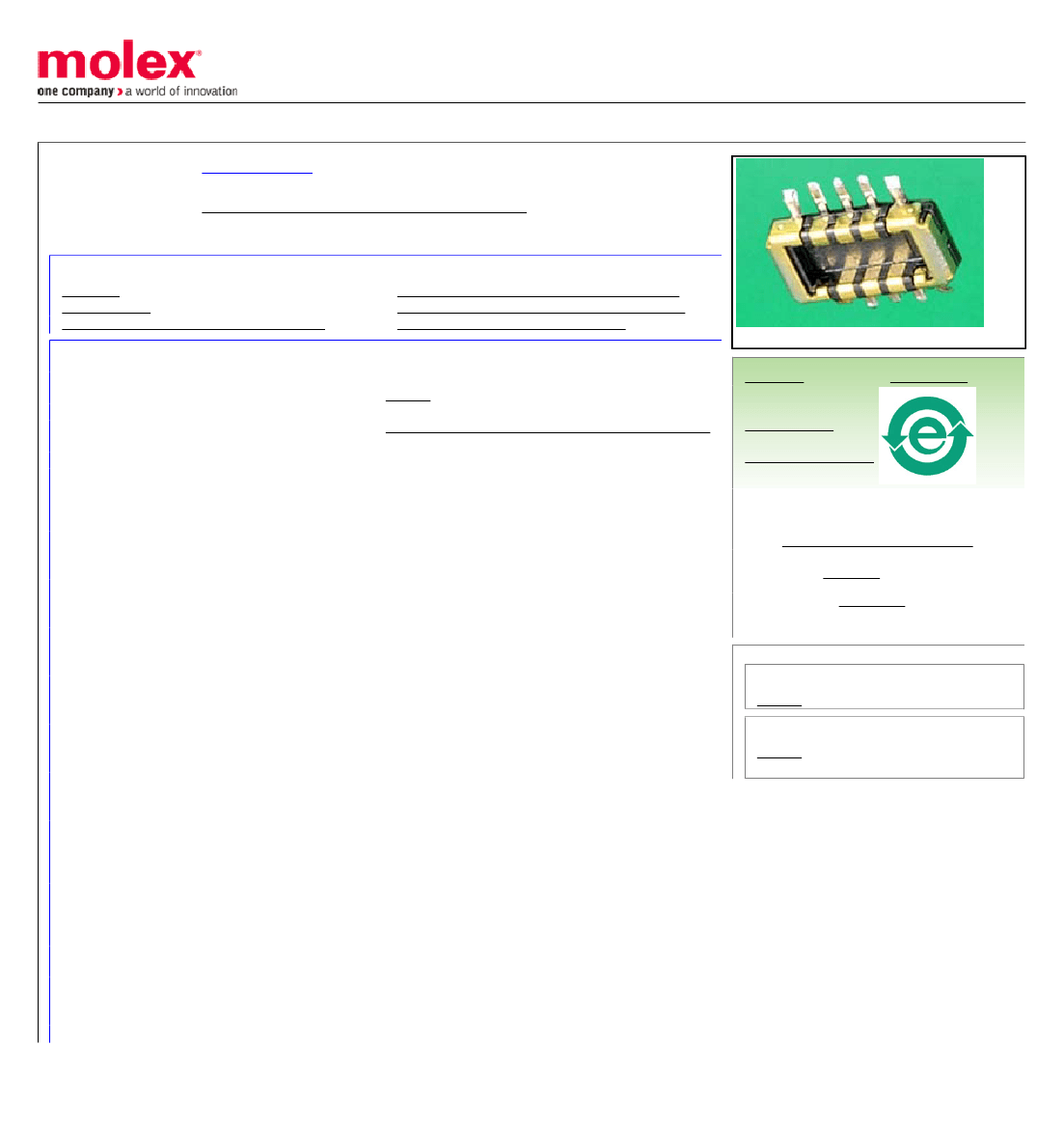

image - Reference only
Series
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Headers
505070
Board-to-Board
SlimStack™ 0.35mm pitch Board-to-Board Connectors
SlimStack Armor™
887191618364
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
No
6
6
Black
30
No
0.60mm
Copper Alloy
Gold
Gold
Liquid Crystal Polymer
2.823/mg
2
Vertical
Yes
Embossed Tape on Reel
0.35mm
No
No
No
-40°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
505070Series
Mates With
505066 0.35mm Pitch SlimStack Armor™
Board-to-Board Receptacle
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
AS-505066-001
SPK-505070-001
PS-505066-001, RPS-505066-003
SD-505070-001, SD-505070-002, SD-505070-006
