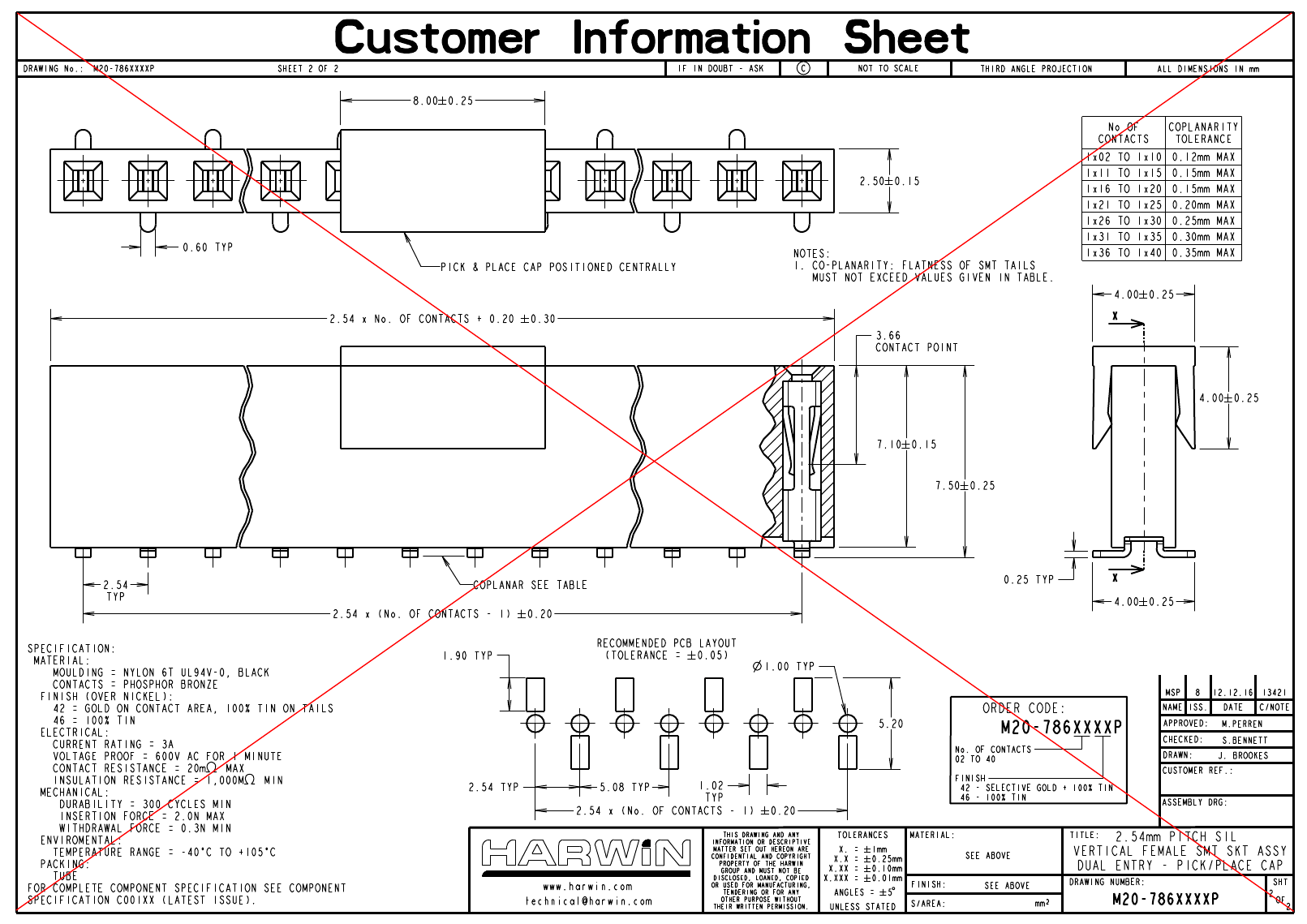

Board Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Objectid | 1740524948 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| YTEOL | 0 |
| Other features | ROHS COMPLIANT |
| body width | 0.1 inch |
| subject depth | 0.295 inch |
| body length | 4.008 inch |
| Body/casing type | SOCKET |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN OVER NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.0016 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYAMIDE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| Rated current (signal) | 3 A |
| Guideline | UL |
| Terminal pitch | 2.54 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 40 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .29746 N |
| M20-7864046 | M20-7862442 | M20-7863942P | M20-7861142P | M20-7860442P | M20-7861742P | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT | Headers u0026 Wire Housings 24 WAY SIL SMT SOCKET | Board Connector, 39 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, | Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, | Headers u0026 Wire Housings 4 WAY SIL WITH Pu0026P SMT SOCKET | Headers u0026 Wire Housings 17 WAY SIL WITH Pu0026P SMT SOCKET |
| Is it lead-free? | Lead free | - | Lead free | Lead free | Lead free | - |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to | - |
| Reach Compliance Code | compliant | - | compliant | compliant | compliant | - |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | - |
| Other features | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | - |
| body width | 0.1 inch | - | 0.098 inch | 0.098 inch | 0.098 inch | - |
| subject depth | 0.295 inch | - | 0.28 inch | 0.28 inch | 0.28 inch | - |
| body length | 4.008 inch | - | 3.908 inch | 1.108 inch | 0.408 inch | - |
| Body/casing type | SOCKET | - | PLUG | PLUG | PLUG | - |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contact to complete cooperation | TIN OVER NICKEL | - | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | - |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier | - | MATTE TIN | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier | - |
| Contact point gender | FEMALE | - | FEMALE | FEMALE | FEMALE | - |
| Contact material | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Contact resistance | 20 mΩ | - | 20 mΩ | 20 mΩ | 20 mΩ | - |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - |
| DIN compliance | NO | - | NO | NO | NO | - |
| Filter function | NO | - | NO | NO | NO | - |
| IEC compliance | NO | - | NO | NO | NO | - |
| maximum insertion force | 2.0016 N | - | 2.0016 N | 2.0016 N | 2.0016 N | - |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - |
| Insulator color | BLACK | - | BLACK | BLACK | BLACK | - |
| insulator material | POLYAMIDE | - | POLYAMIDE | POLYAMIDE | NYLON | - |
| JESD-609 code | e3 | - | e3 | e3 | e3 | - |
| MIL compliance | NO | - | NO | NO | NO | - |
| Plug contact pitch | 0.1 inch | - | 0.1 inch | 0.1 inch | 0.1 inch | - |
| Mixed contacts | NO | - | NO | NO | NO | - |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | LOCKING | - |
| Installation method | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT | - |
| Installation type | BOARD | - | BOARD | BOARD | BOARD | - |
| Number of connectors | ONE | - | ONE | ONE | ONE | - |
| PCB row number | 2 | - | 2 | 2 | 2 | - |
| Number of rows loaded | 1 | - | 1 | 1 | 1 | - |
| Maximum operating temperature | 105 °C | - | 105 °C | 105 °C | 105 °C | - |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | -40 °C | - |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| PCB contact pattern | STAGGERED | - | STAGGERED | STAGGERED | STAGGERED | - |
| Rated current (signal) | 3 A | - | 3 A | 3 A | 3 A | - |
| Guideline | UL | - | UL | UL | UL | - |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Termination type | SURFACE MOUNT | - | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | - |
| Total number of contacts | 40 | - | 39 | 11 | 4 | - |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | - |
| Evacuation force-minimum value | .29746 N | - | .278 N | .278 N | .278 N | - |
