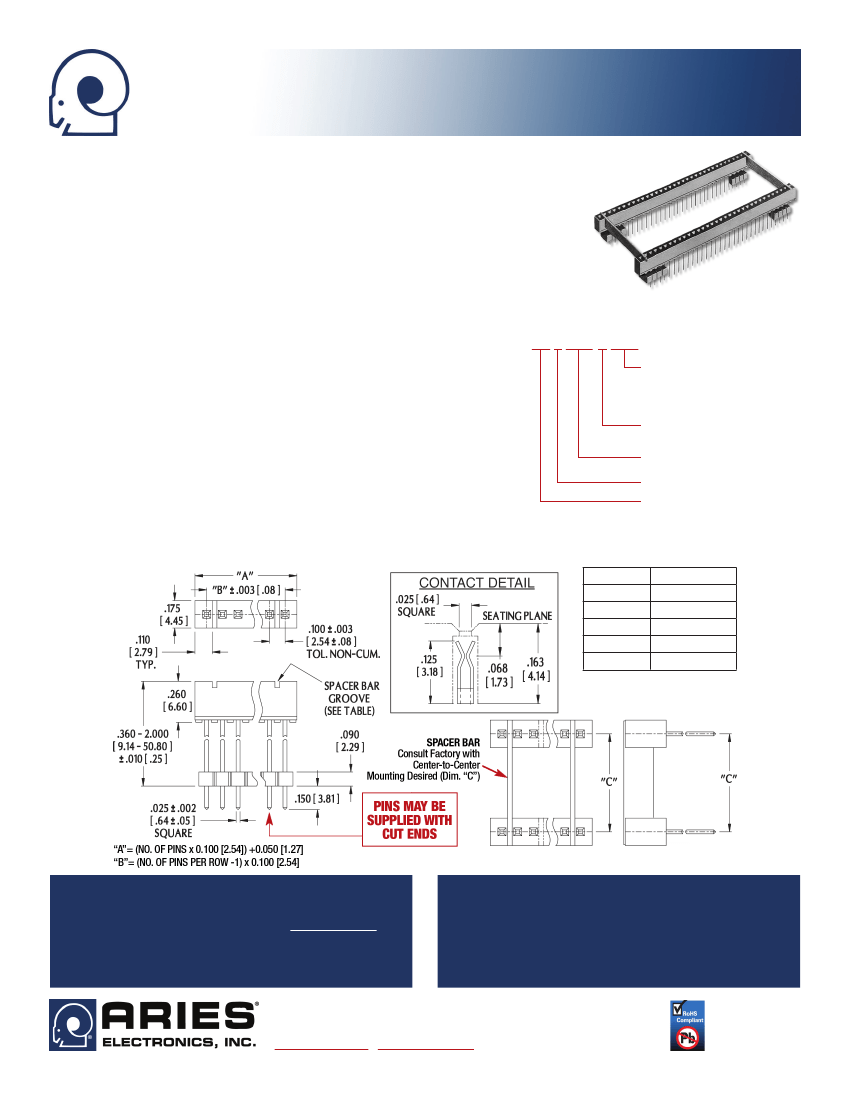

Series 700 Elevator Strip-Line Socket

w/Bifurcated Contacts & Solder Pin Tails

™

FEATURES

• Elevated Mounting of LCDs or Other Odd-centered or High Pin-count Components

• Any Height from 0.360 to 2.000 [9.14 to 50.80]

• Optional Spacer for Mounting on 0.300 [7.62], 0.600 [15.24], 0.900 [22.86], 1.100 [27.94], and

1.300 [33.02] Centers

GENERAL SPECIFICATIONS

•

BODY: black UL 94V-0 glass-filled 4/6 Nylon

•

PIN: Grade A Phosphor Bronze per QQ-B-750

•

OPTIONAL SPACER: FR-4 0.032 [0.81] thick

•

PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per

ORDERING INFORMATION

SAE AMS-QQ-N-290B; –OR– 200µ [5.08µ] min. matte Sn per ASTM B545-97(2004)

XX 7 XXX-X XXX

e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; –OR– 200µ [5.08µ] min.

90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-

Plating

0 = Sn

290B

0TL = Sn/Pb

•

CURRENT RATING: 1.5 amps

1 = Au

•

OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb plating;

Termination

-67°F to 257°F [-55°C to 125°C] Au

1 = Solder Pin Tail

•

INSERTION FORCE: 110g/pin average

Elevated Height

•

WITHDRAWAL FORCE: 75g/pin average

0.360-2.000 [9.14-50.80]

•

ACCEPTS LEADS: flat leads up to 0.014 x 0.020 wide [0.36-0.51], Round Leads up to

Series

0.020 [0.51] dia.

No. of Pins

•

LEAD LENGTHS: from seating plane 0.080-0.160 [2.03-4.06]

(See Table)

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14 ±0.05] dia.

No. of Pins

20

25

30

34

40

No. of Grooves

2

2

2

3

2

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FOR COLLET SOCKETS WITH SOLDER PIN TAILS, SEE DATA SHEETS 12012

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

12010

Rev. 6.1

1 of 1
