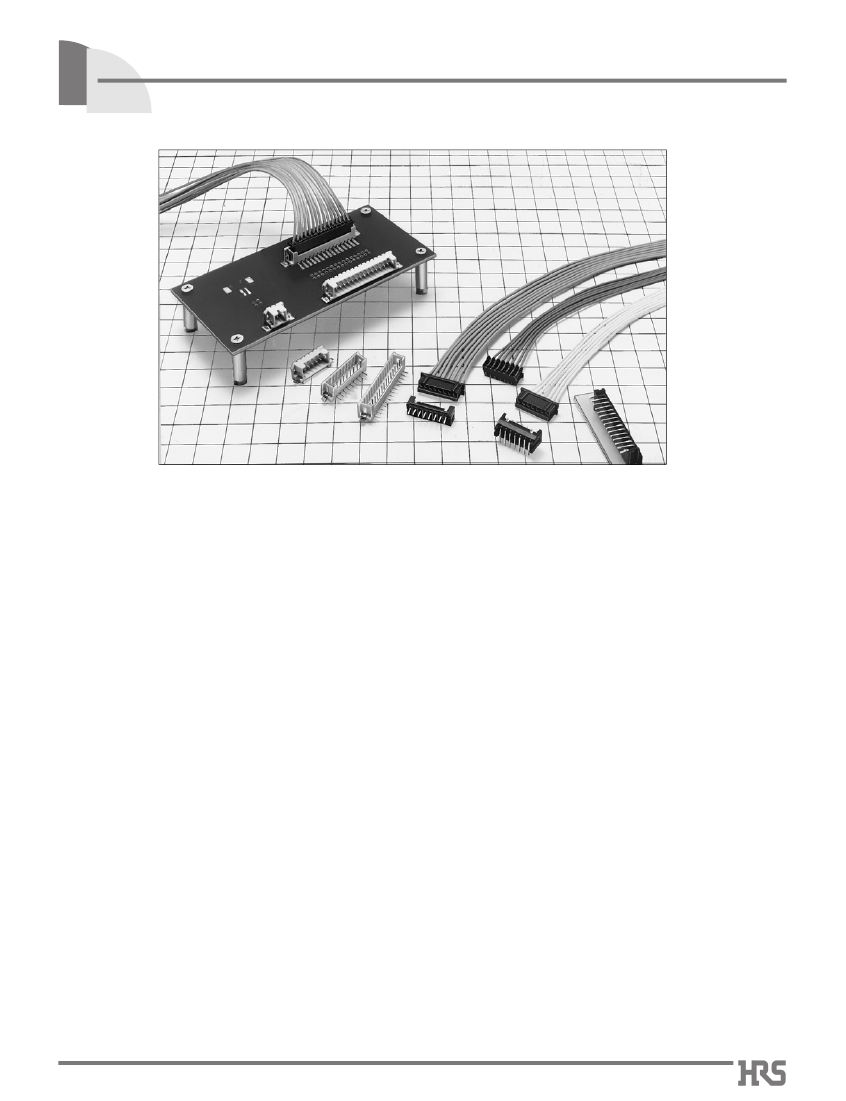

2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)
DF3 Series
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. Correspond to Board Design in Wide Variation
●ID
Socket
(1) Low profile design with the mounting height of 6.8mm
(2) Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID
type.
(DF11 series represents the 2mm pitch single-row product.)
●Crimp
Socket
(1) Low profile design with mounting height 7.5mm.
(2) Provide the contact crimping area with the sufficient space, and secures the stable crimping
operation.
●Receptacle
(1) The board can be connected horizontally or vertically in combination with the straight header with the
right angle header.
(2) For horizontal connection, the board to board size is the low profile of 6.6mm.
(3) Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and
the cable side to the plug in the board to cable connection.
●Pin
Header
(1) The board pre-fixed kink is treated with the post pin.
(2) The style employs a scoop-proof and sturborn box type.
(3) The type corresponding to SMT is avilable, using the heat-proof resin.
This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.
●In-line
Plug
(1) The crimping in-line plug consits of two types, one type, which has pursued after space merits, and
the other employs the panel lock type, which can be fixed to the panel.
(2) The in-line adapter is available to insert and in-line the ID socket from both sides.
2. UL, CSA Certified
3. Glow Wire Compliance (Compliant with IEC 60695-2-11)
■Applications
Business equipment such as copy machine and printer
B207
DF3 Series●2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)
■Product
Specifications
22 to 24 AWG : 3A
Current rating
Rating
Note 1
IDC
Voltage rating
Crimping
Wire size
250V AC
IDC
Crimping
Wire size
26 AWG
28 AWG
100V AC
: 2A
: 1A
Storage Temperature Range
-10ç to +60ç
(Note
4)
Storage Humidity Range
40% to 70%
(Note
4)
Operating Temperature Range -55ç
to +105ç
(Note
2)
Operating Humidity Range
40% to 80%
(Note
3)
26, 28AWG :1A
UL-CSA Safety Standard and Approved specification
24 AWG : 3A
Rated Current
Wire size
30V AC
26 AWG : 2A
(Note 5)
28 AWG : 1A
Rated Voltage
■UL
CSA Safety Standard File No.
UL
: E52653
CSA
: LR95109
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
7. Temperature Cycle
1000M
ø
min.
Specification
500V DC
650V AC, 1 minute
100mA
Condition
No flashover or insulation breakdown.
30m
ø
max
4. Single Insertor/Extraction Force 0.3N(30gf)min, 4.4N(450gf)max.
Measure by the square steel pin with 0.5±0.002mm
No electrical discontinuity of 1μs or more
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
Tin plating : 30 cycles Gold plating: 50 cycles
THT type
Flow : 260ç for 10 seconds
6.
Humidity (Steady state)
Contact resistance : 30m
ø
max. Insulation resistance : 500M
ø
min.
8. Durability (Mating/un-mating) Contact resistance : 30m
ø
max.
9. Resistance to Soldering Heat
No deformation of components affecting performance.
Contact resistance : 30m
ø
max. Insulation resistance :1000M
ø
min. (-55ç : 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10minutes) 5 cycles
Manual soldering : 300ç for 2 seconds
SMT type
Reflow : At the recommended temperature profile Manual soldering : 300ç for 3 seconds
Note 1 : Current rating of header is 3A.
Note 2 : Includes temperature rise caused by current flow.
Apply to crimping contact type. Maximum operating temperature for IDC and receptacle type is 85ç.
Note 3 : Please use under conditions with no condensation occurred.
Note 4 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 5 : Apply to crimping contact type. The IDC type's rated current is 1A.
■Materials
/ Finish
Product
Crimping Socket
IDC Contact for Socket
ID Socket
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
SMT Pin Header
In-line Plug
In-line IDC Contact
In-line Adapter
Contact
Metal tab
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Brass
Polyamide
Brass
Brass
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Beige
Tin plated or gold plated
Tin plated
Black
Tin plated or gold plated
Black
Tin plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
B208
DF3 Series●2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)
■

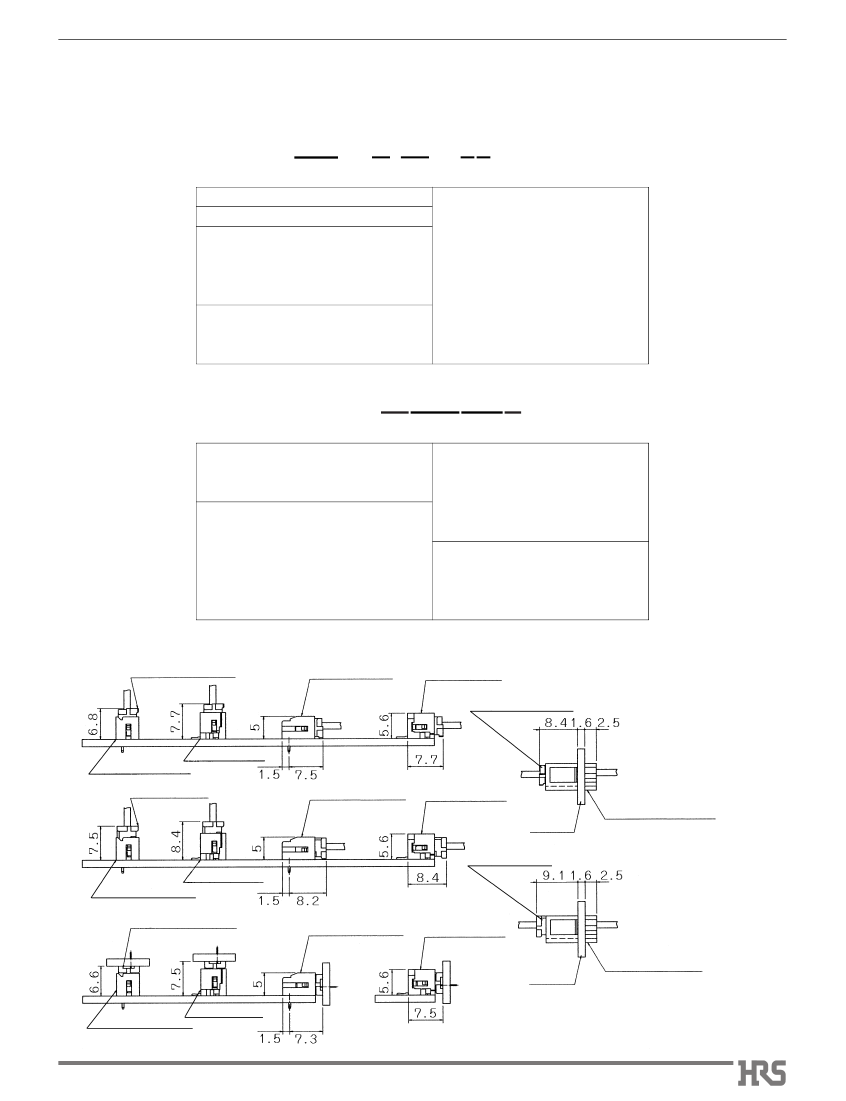

Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connector
DF3 -
*
S - 2C
q
q
Series Name
e
Connector Type
w
e
rt
t
Connection Form/Contact Style
C
: Crimp socket
R26 : ID socket for 26AWG
: Socket
: Pin Header
: In-line Plug
: 2mm
R28 : ID socket for 28AWG
DSA : Straight through hole
DS : Right angle through hole
V
H
A
: Straight SMT
: Right angle SMT
: Adapter
: DF3, 3A, 3AA, 3EA
w
Number of Contacts : 2~15
S
P
EP
r
Contact Pitch
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Contact
DF3 - EP2428PCFA
q
q
Contact Type
Blank : For socket
EP
22
: For in-line plug
: 22 AWG
w
Applicable Wire Size
2428 : 24 to 28 AWG
w
e
r
e
Contact Type/Packaging Type
SCF
SC
PCF
PC
Blank
A
C
: Socket contact, Reel
: Socket contact, Pack
: Plug contact, Reel
: Plug contact, Pack
: Tin plated
: Gold plated (Plug contact)
: Gold plated (Socket contact)
r
Plating Type
■Application
pattern
DF3-※S-2R##(**)
DF3(A)-※P-2DS(**)
DF3EA-※P-2H(**)
DF3-※S-2R##(**)
DF3EA-※P-2V(**)
DF3(A)-※P-2DSA(**)
DF3-※S-2C
DF3(A)-※P-2DS(**)
DF3EA-πP-2H(**)
DF3AA-※EP-2C
Panel
DF3-※S-2C
DF3EA-πP-2V(**)
DF3(A)-※P-2DSA(**)
DF3-※S-2DSA(**)
DF3(A)-※P-2DS(**)
DF3EA-πP-2H(**)
DF3AA-※EP-2C
Panel
DF3EA-πP-2V(**)
DF3(A)-※P-2DSA(**)
B209
DF3 Series●2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)
■ID
Socket
[Specific No.] (*
*)
,
* *
(01)
(05)
: Gold plated, 100pcs/pack
: Tin plated, 100pcs/pack
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

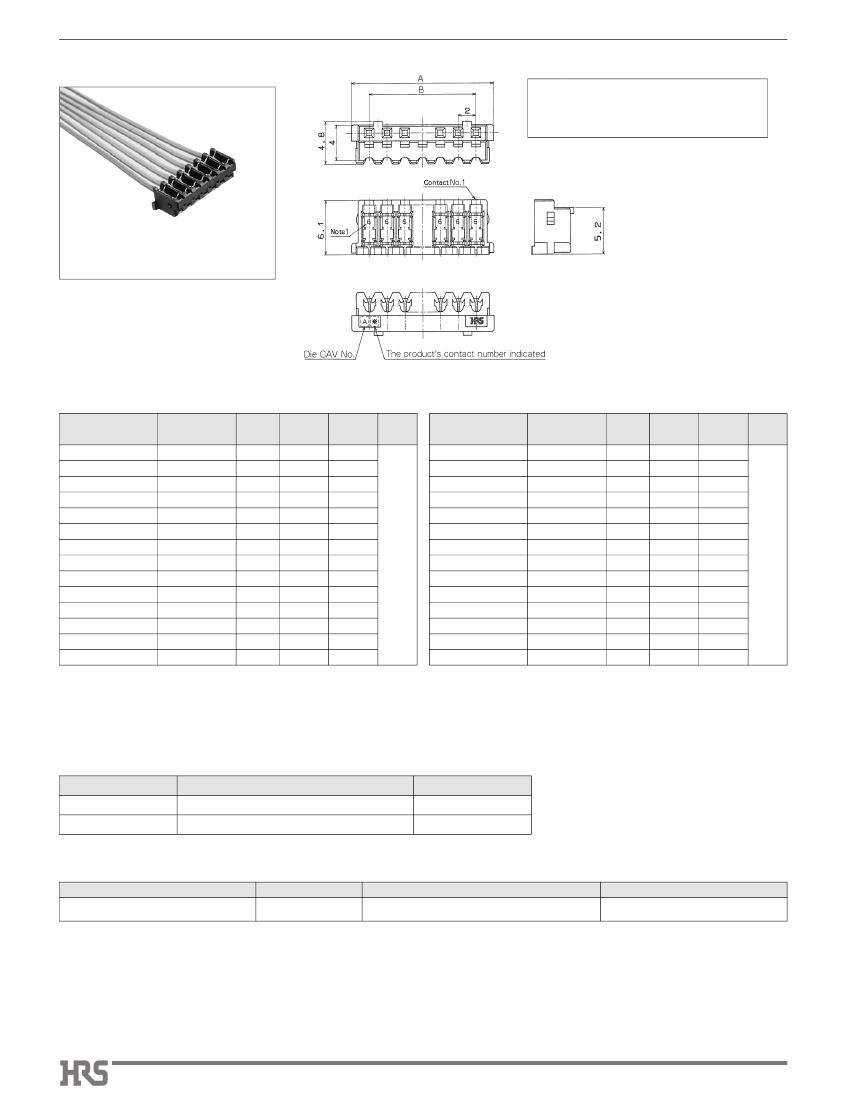

This picture shows the cable
assembled status.
Note 1 :
Mark to determine the socket name
Mark6 : R26, Mark8 : R28
●26
AWG
Part No.
HRS No.
No. of
A
Contacts
6
2
8
3
10
4
12
5
14
6
16
7
18
8
20
9
22
10
24
11
26
12
28
13
30
14
32
15
of the specific No.
B
2
4
6
8
10
12
14
16
18
20
22
24
26
28
(01)
Unit : mm
RoHS
●28
AWG
Part No.
HRS No.
Unit : mm
RoHS
DF3- 2S-2R26(**) 543-0078-7 **
DF3- 3S-2R26(**) 543-0079-0 **
DF3- 4S-2R26(**) 543-0080-9 **
DF3- 5S-2R26(**) 543-0081-1 **
DF3- 6S-2R26(**) 543-0082-4 **
DF3- 7S-2R26(**) 543-0083-7 **
DF3- 8S-2R26(**) 543-0084-0 **
DF3- 9S-2R26(**) 543-0085-2 **
DF3-10S-2R26(**) 543-0086-5 **
DF3-11S-2R26(**) 543-0087-8 **
DF3-12S-2R26(**) 543-0088-0 **
DF3-13S-2R26(**) 543-0089-3 **
DF3-14S-2R26(**) 543-0090-2 **
DF3-15S-2R26(**) 543-0091-5 **
Note 2 : The quantity for delivery
productsper bag.
No. of
A
B
Contacts
2
6
DF3- 2S-2R28(**) 543-0092-8 **
2
4
8
DF3- 3S-2R28(**) 543-0093-0 **
3
6
10
DF3- 4S-2R28(**) 543-0094-3 **
4
8
12
DF3- 5S-2R28(**) 543-0095-6 **
5
10
14
DF3- 6S-2R28(**) 543-0096-9 **
6
12
16
DF3- 7S-2R28(**) 543-0097-1 **
7
14
18
DF3- 8S-2R28(**) 543-0098-4 **
8
YES
16
20
DF3- 9S-2R28(**) 543-0099-7 **
9
18
22
DF3-10S-2R28(**) 543-0100-4 **
10
20
24
DF3-11S-2R28(**) 543-0101-7 **
11
22
26
DF3-12S-2R28(**) 543-0102-0 **
12
24
28
DF3-13S-2R28(**) 543-0103-2 **
13
26
30
DF3-14S-2R28(**) 543-0104-5 **
14
28
32
DF3-15S-2R28(**) 543-0105-8 **
15
and (05) is determined per bag (100pcs.). If needed, please order the
YES
■Applicable
Cable
Part No.
DF3-
*
S-2R26(**)
DF3-
*
S-2R28(**)
Applicable Cable
UL1061
26
AWG (7/0.16)
UL1061
28
AWG
(
7/0.127
)
Jacket Diameter
Ø0.9 to 1mm
Ø0.9 to 1mm
■Applicable
ID Connection Tool
Type
DF3 DF4 Desktop ID Machine
Part No.
SA701/DF3
Connection Type
DF3 No restriction
Remarks
Desktop machine for small lot
B210
DF3 Series●2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)
■Crimping
Socket
[Specific No.] (*
*)
,
* *
Blank : 100pcs/pack
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

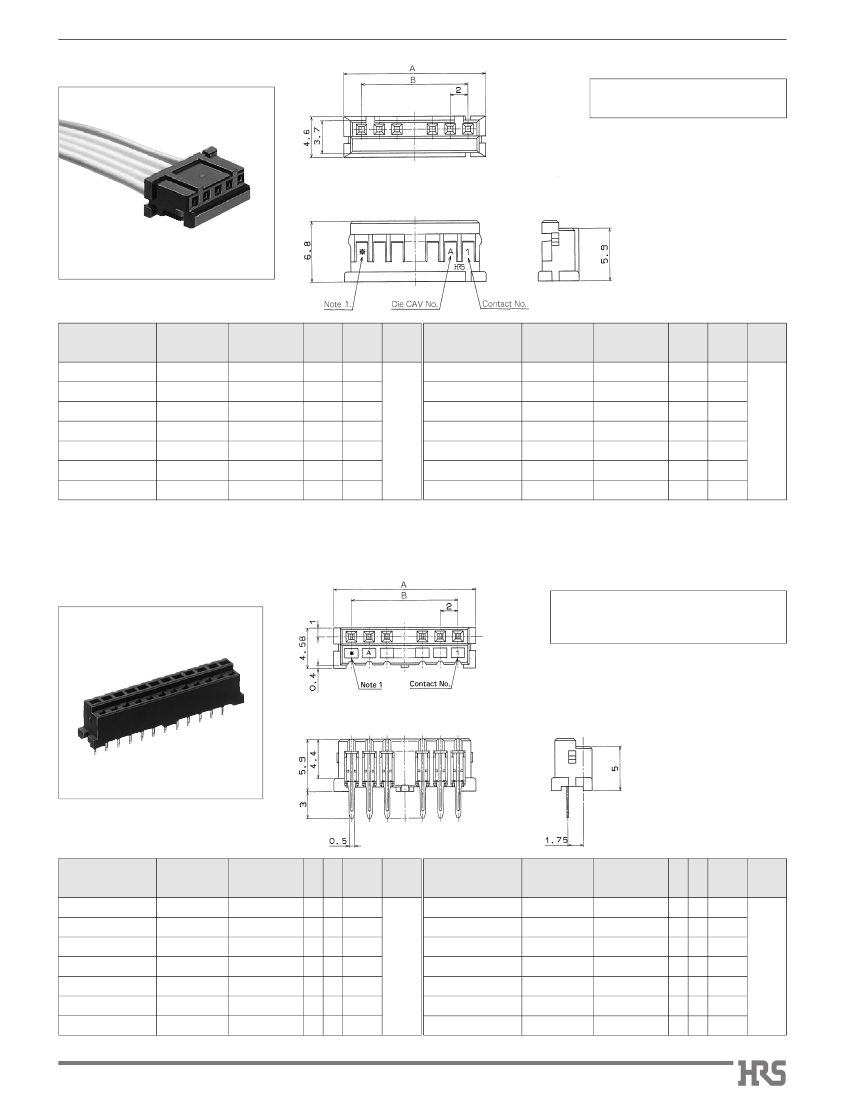

This picture shows the Contact
crimped status.
Unit : mm
Part No.
HRS No.
No. of
Contacts
2
3
4
5
6
7
A
06
08
10
12
14
16
B
02
04
06
08
10
12
YES
RoHS
Part No.
HRS No.
No. of
Contacts
09
10
11
12
13
14
15
A
20
22
24
26
28
30
32
B
16
18
20
22
24
26
28
YES
RoHS
DF3-2S-2C(**) 543-0003-8
**
DF3-3S-2C(
**
) 543-0004-0
**
DF3-4S-2C(**) 543-0005-3
**
DF3-5S-2C(**) 543-0006-6
**
DF3-6S-2C(
**
) 543-0007-9
**
DF3-7S-2C(**) 543-0008-1
**
DF3-19S-2C(**) 543-0010-3
**
DF3-10S-2C(
**
) 543-0011-6
**
DF3-11S-2C(**) 543-0012-9
**
DF3-12S-2C(**) 543-0013-1
**
DF3-13S-2C(
**
) 543-0014-4
**
DF3-14S-2C(**) 543-0015-7
**
8
18
14
DF3-8S-2C(**) 543-0009-4
**
DF3-15S-2C(**) 543-0016-0
**
Note1 : The product's contact number indicated.
Note2 : The quantity for delivery of the specification No. "None" is determined per bag (100 pcs.).
If needed, please order the products per bag.
■Receptacle
[Specific No.] (*
*)
,
* *
(25) : Tin plated, Tube packaging
(55) : Gold plated, Tube packaging
Note1 : The product's contact number indicated
●Board
Through-hole Diameter :
Ø0.8
+
0.1
+
0
Unit: mm
Part No.
HRS No.
No. of
Contacts
2
3
4
5
6
7
A
B
Tube Package
RoHS
Quantity
Part No.
HRS No.
No. of
Contacts
09
10
11
12
13
14
15
A
B
Tube Package
RoHS
Quantity
DF3-2S-2DSA(
**
) 543-0048-6
**
DF3-3S-2DSA(**) 543-0049-9
**
DF3-4S-2DSA(**) 543-0050-8
**
DF3-5S-2DSA(
**
) 543-0051-0
**
DF3-6S-2DSA(
**
) 543-0052-3
**
DF3-7S-2DSA(**) 543-0053-6
**
06 02
80 pieces
08 04
60
10
06
48
12
08
40
14 10 34
16 12 30
YES
DF3- 9S-2DSA(**) 543-0055-1
**
DF3-10S-2DSA(**) 543-0056-4
**
DF3-11S-2DSA(**) 543-0057-7
**
DF3-12S-2DSA(**) 543-0058-0
**
DF3-13S-2DSA(**) 543-0059-2
**
DF3-14S-2DSA(**) 543-0060-1
**
20 16 24 pieces
22 18 21
24 20 20
26 22 18
28 24 17
30 26 16
32 28 15
YES
8
18 14 27
DF3-15S-2DSA(**) 543-0061-4
**
DF3-8S-2DSA(
**
) 543-0054-9
**
Note2 : Please order the tube packaging at the multiplied tube packaging quantity (pieces).
B211
MEMS sensors
京公网安备 11010802033920号
EEWORLD
