Base strip - IPC 16/ 8-GFU-10,16 - 1969991
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 76 A, Rated voltage (III/2): 1000 V, Number of positions: 8, Pitch: 10.16 mm, Color:
green, Contact surface: Silver, Assembly: Soldering, Plug direction parallel to the PCB: connector part rotated by
180° with respect to the plug axis.

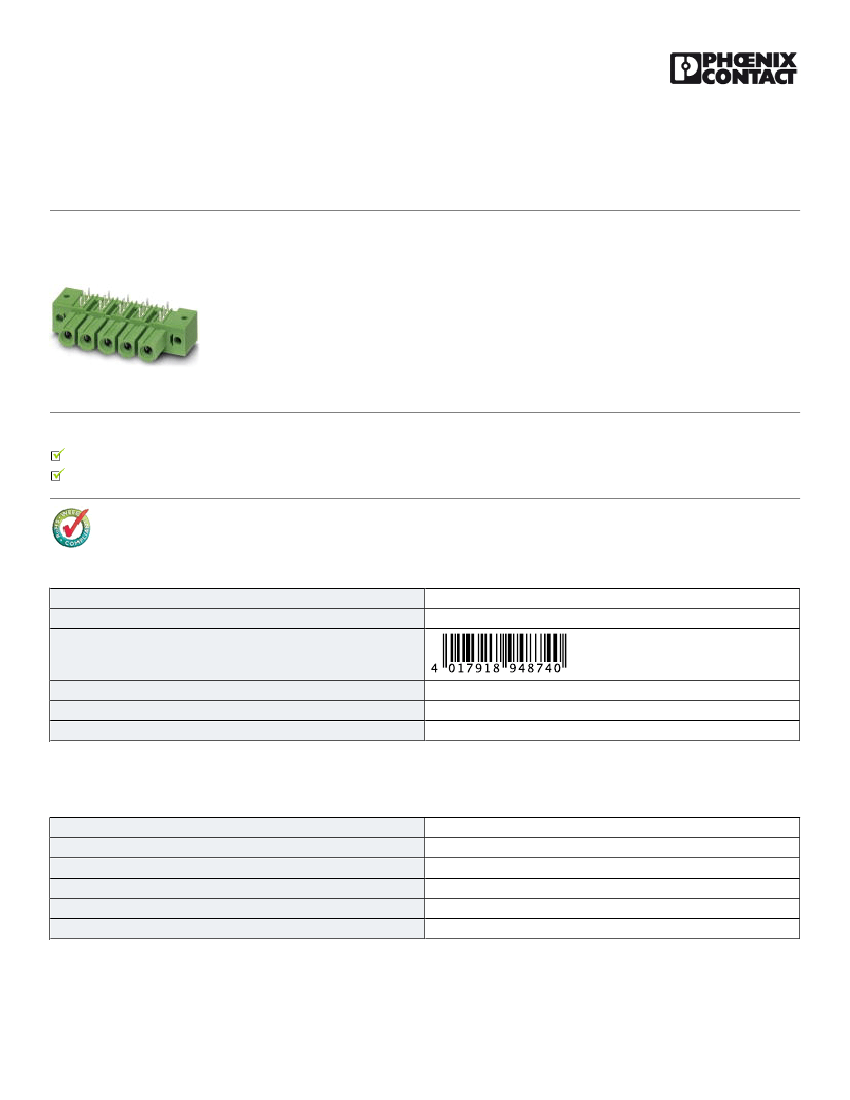

The figure shows a 5-pos. version of
the product
Product Features
Inverted IPC 16 headers for implementing a touch-proof PCB output or a PCB/PCB connection (in combination with PC 6-16 base strips)
PCB-SHIELD shroud (EMC connection)
Key commercial data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
33.63 GRM
85366990
Poland
1 pc
50 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Pin spacing
Hole diameter
32.1 mm
10.16 mm
71.12 mm
0,8 x 1,2
10.16 mm
1.7 mm
General
10/31/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1969991
Base strip - IPC 16/ 8-GFU-10,16 - 1969991
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
IPC 16/..-GFU
I
8 kV
8 kV
8 kV
1000 V
1000 V
1000 V
76 A
76 A
PA
V0
green
8
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
10/31/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1969991
Base strip - IPC 16/ 8-GFU-10,16 - 1969991
Approvals
Approvals
Approvals
UL Recognized / SEV / cUL Recognized / CCA / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
66 A
300 V
C
66 A
300 V
D
5A
600 V
SEV
Nominal current IN
Nominal voltage UN
76 A
1000 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
66 A
300 V
C
66 A
300 V
D
5A
600 V
CCA
Nominal current IN
Nominal voltage UN
76 A
1000 V
10/31/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1969991
Base strip - IPC 16/ 8-GFU-10,16 - 1969991
Approvals
GOST
GOST
cULus Recognized

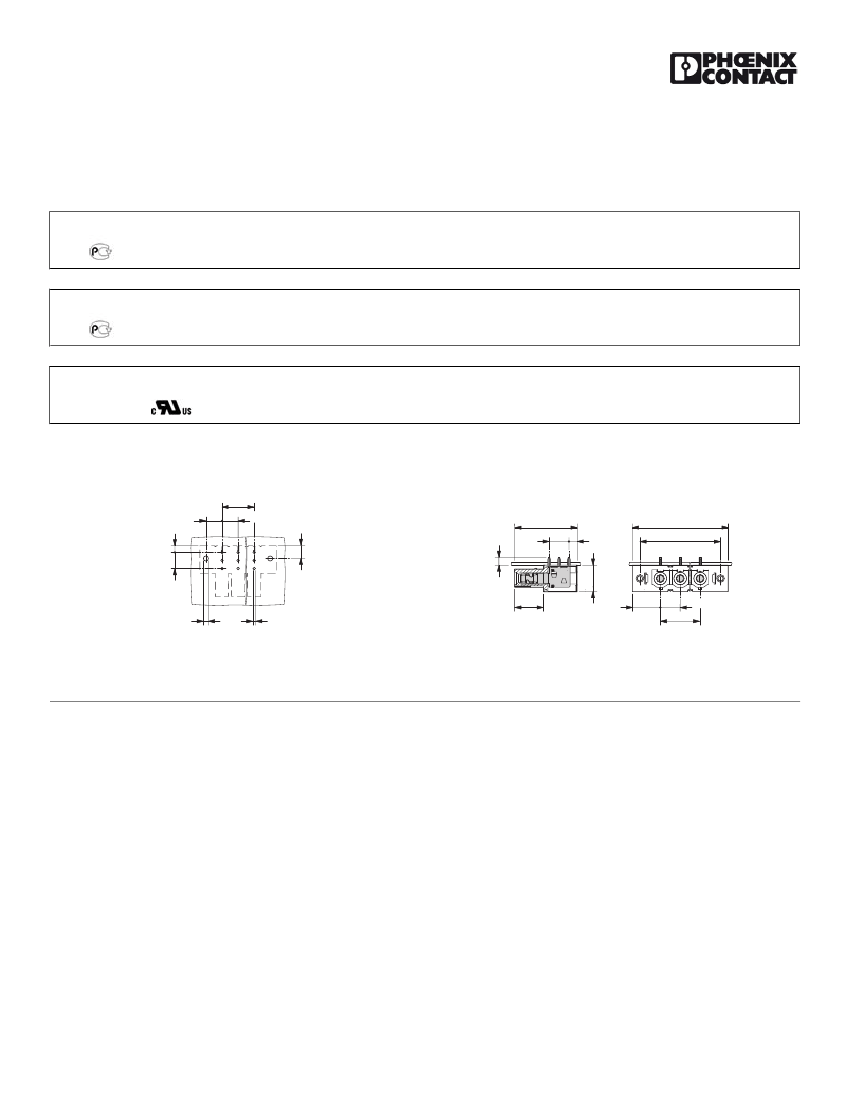

Drawings
Drilling diagram
a
10,16
10,16
Dimensioned drawing
4,24
8,05
32,1
10,16
4
a+27,92
4,24
a+20,32
10,16
14,7
3,2
1,7
13,6
13,96
a
10,16
The illustration shows the 3-pos. version
The illustration shows the 3-pos. version
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/31/2014 Page 4 / 4
