M20-9613545 datasheet, PDF - EEWORLD Datasheet

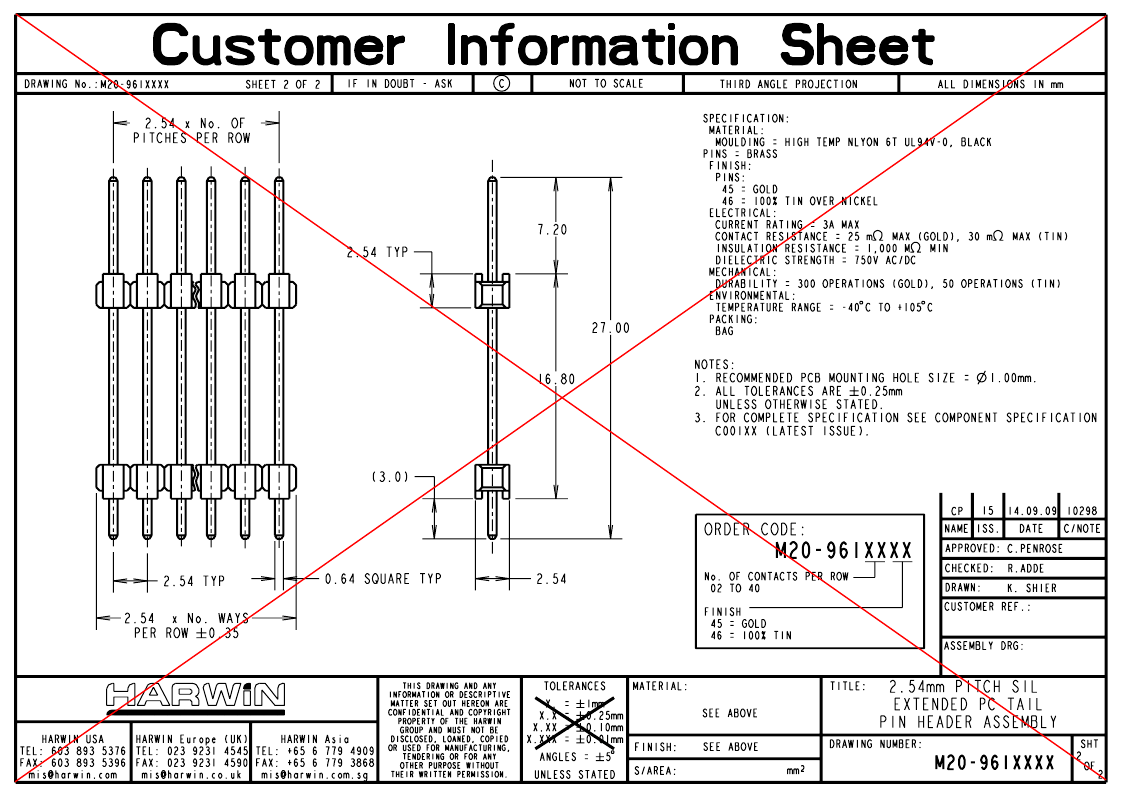

M20-9613545: DescriptionHeaders u0026 Wire Housings 35 SIL EXTENDED PIN HEADER GOLD HT; CategoryThe connector The connector; File Size505KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M20-9613545 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M20-9613545	-	-	View	Buy Now

Headers u0026 Wire Housings 35 SIL EXTENDED PIN HEADER GOLD HT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.661 inch
body length	3.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M20-961
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	35
UL Flammability Code	94V-0
Base Number Matches	1

OBSOLETE
