Plug - UPBV 4/10 - 3045897
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Screw connection, Number of positions: 10, Cross section: 0.14 mm² - 6 mm²,
AWG: 26 - 10, Width: 62 mm, Height: 48.5 mm, Color: gray

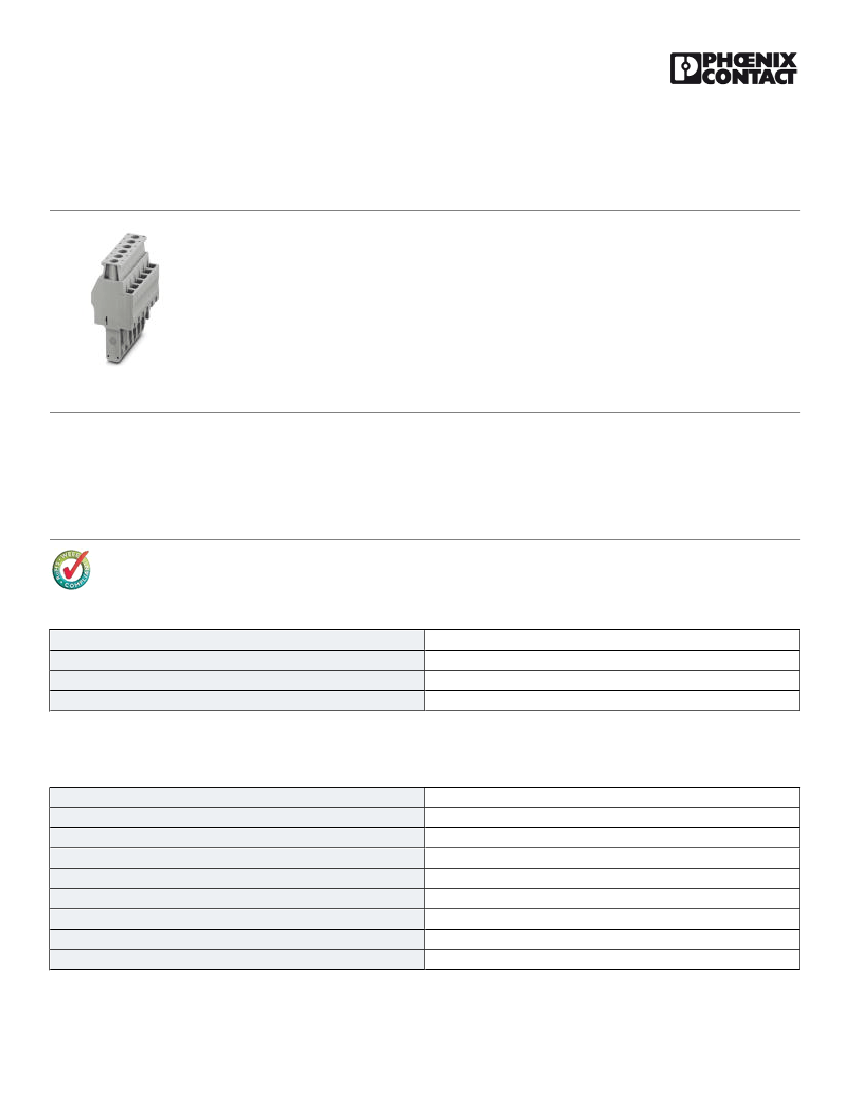

The illustration shows the 6-position
version
Product Features
■
■
■
■
Can be bridged with FBS ... standard bridges
Plug with two conductor connection directions
UPBV... can be bridged
The connected conductors can be led directly into the cable duct to save space
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
61.5 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
1
10
4 mm²
gray
PA
V0
32 A (with 6 mm² conductor cross section)
8 kV
3
04/25/2016 Page 1 / 11
https://www.phoenixcontact.com/us/products/3045897
Plug - UPBV 4/10 - 3045897
Technical data
General
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
III
I
32 A (with 6 mm² conductor cross section)
32 A
800 V
Dimensions
Width
Length
Height
Pitch
62 mm
22 mm
48.5 mm
32.20 mm
6.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Screw connection
IEC 61984
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
1.5 mm²
04/25/2016 Page 2 / 11
https://www.phoenixcontact.com/us/products/3045897
Plug - UPBV 4/10 - 3045897
Technical data
Connection data
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
9 mm
A4
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141120
27141120
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
04/25/2016 Page 3 / 11
https://www.phoenixcontact.com/us/products/3045897
Plug - UPBV 4/10 - 3045897
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
600 V
C
26-10
30 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
600 V
C
26-10
30 A
600 V
EAC
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
600 V
C
26-10
30 A
600 V
04/25/2016 Page 4 / 11
https://www.phoenixcontact.com/us/products/3045897
Plug - UPBV 4/10 - 3045897
Approvals
cULus Recognized

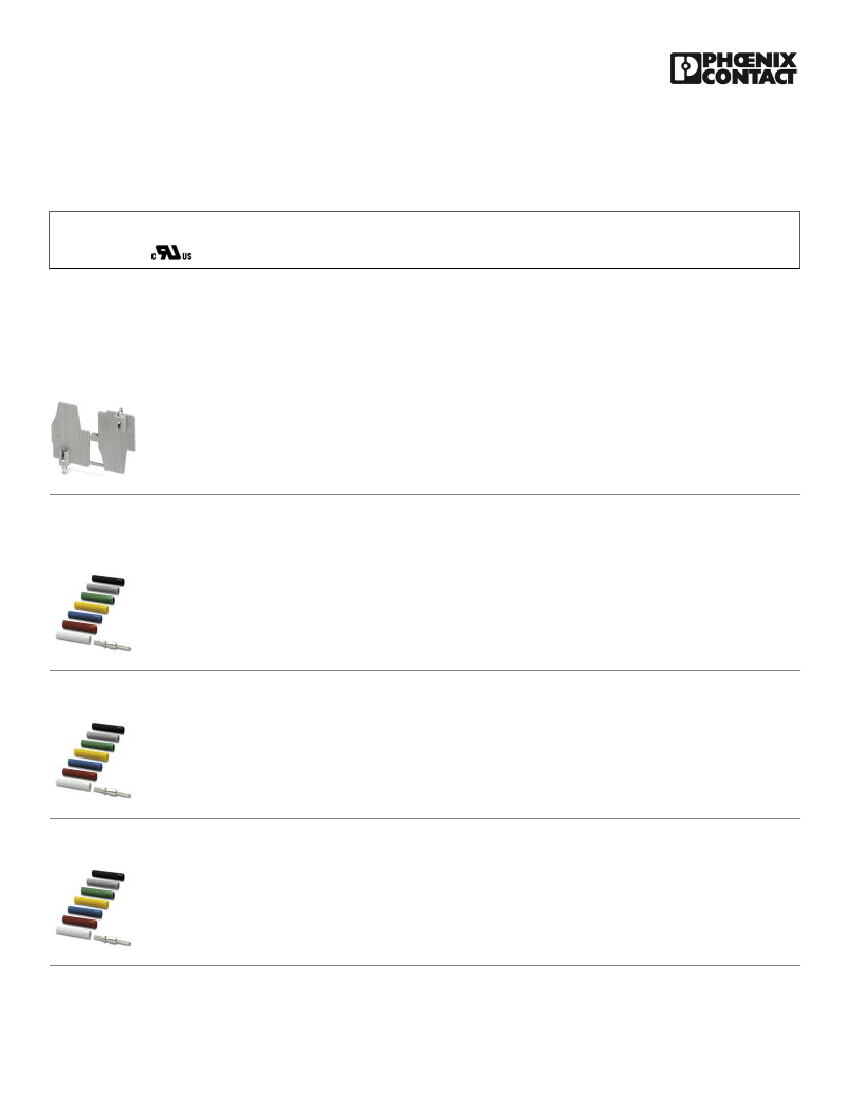

Accessories
Accessories
End cover
Flange cover - DF-UPBV 2,5/ 4 - 3060432
Flange cover, Length: 45.7 mm, Width: 4.5 mm, Height: 32 mm, Color: gray
Insulating sleeve
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
