3201576 Overview

Terminals AI 0.75-8 WH-B

3201576 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Connector bracket type	TERMINAL BLOCK ACCESSORY
Manufacturer's serial number	3201576

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/3201576

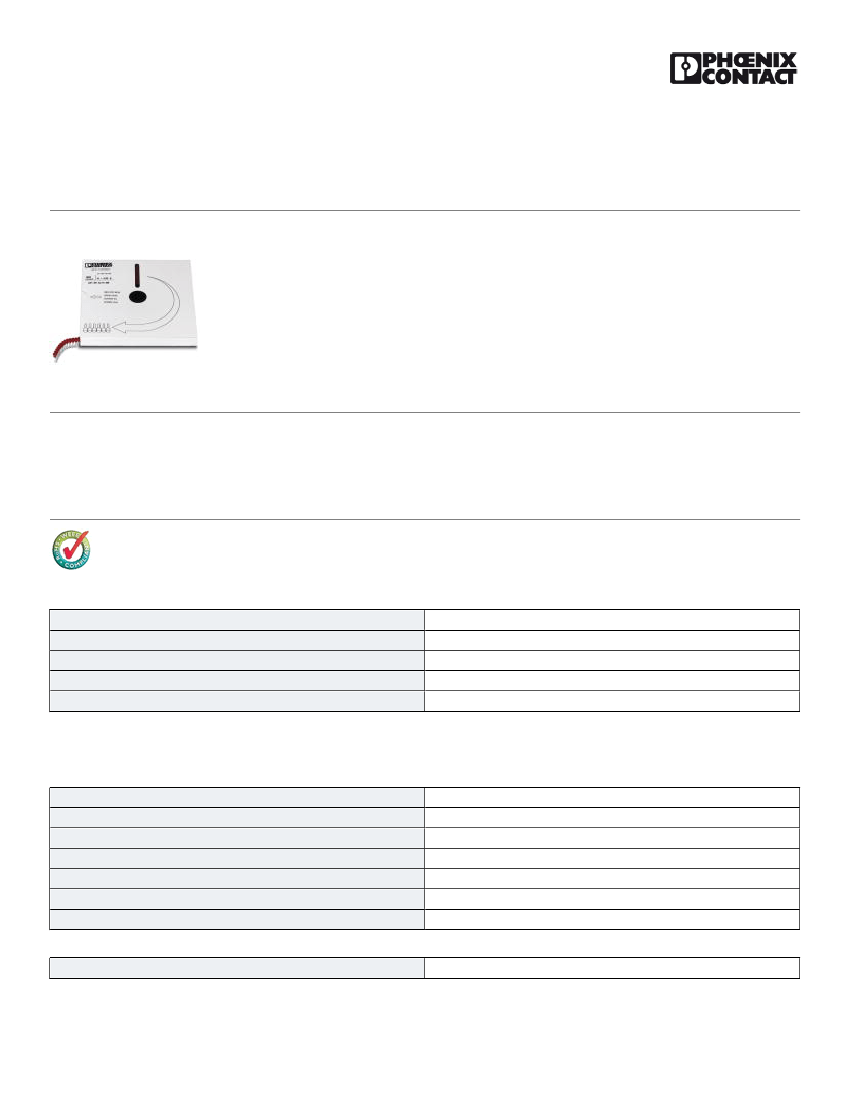

Ferrule - AI 0,75- 8 WH-B - 3201576

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Ferrule, Sleeve length: 8 mm, Length: 14 mm, Color: white

The illustration shows version AI 1,5

- 8 in red

Product Features

■

Available in the main color ranges up to 2.5 mm²

The taped ferrules were developed specifically for the crimping machine CF 3000 -2,5

Can be used to wire all terminal blocks, especially those of the CLIPLINE complete system

Key Commercial Data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

1000 pc

0.14 g

85369010

Germany

Technical data

Dimensions

Length (b)

Maximum stripping length

Sleeve length

Inner dimension of the insulating collar (d)

Ferrule diameter

Insulating collar thickness

Sleeve wall thickness

14 mm

11 mm

8 mm

2.8 mm

1.3 mm

0.25 mm

0.15 mm

Ambient conditions

Short-term temperature

120 °C

04/22/2016 Page 1 / 3
