5962-87577012X datasheet, PDF - EEWORLD Datasheet

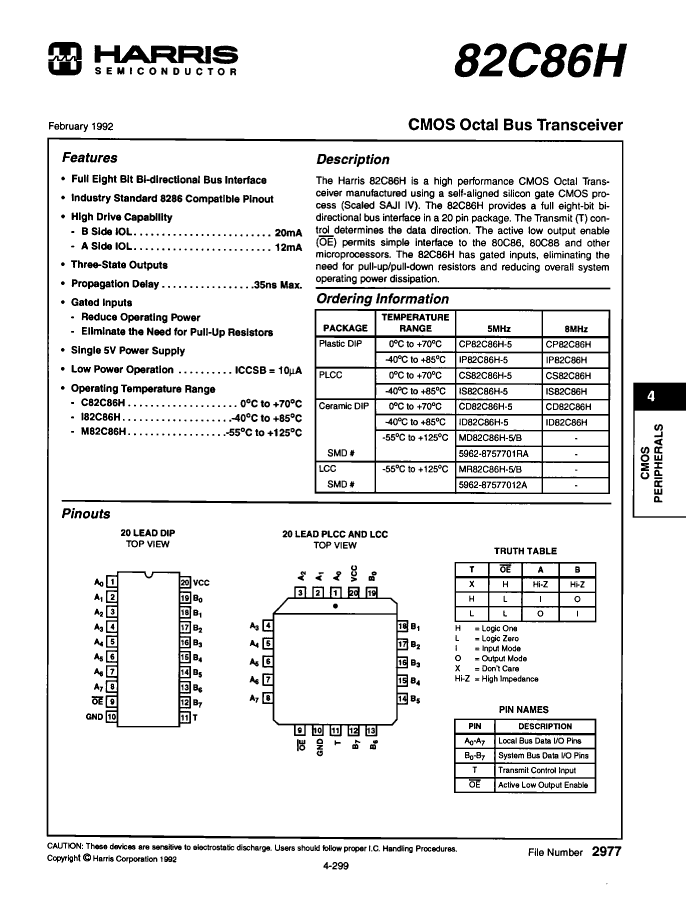

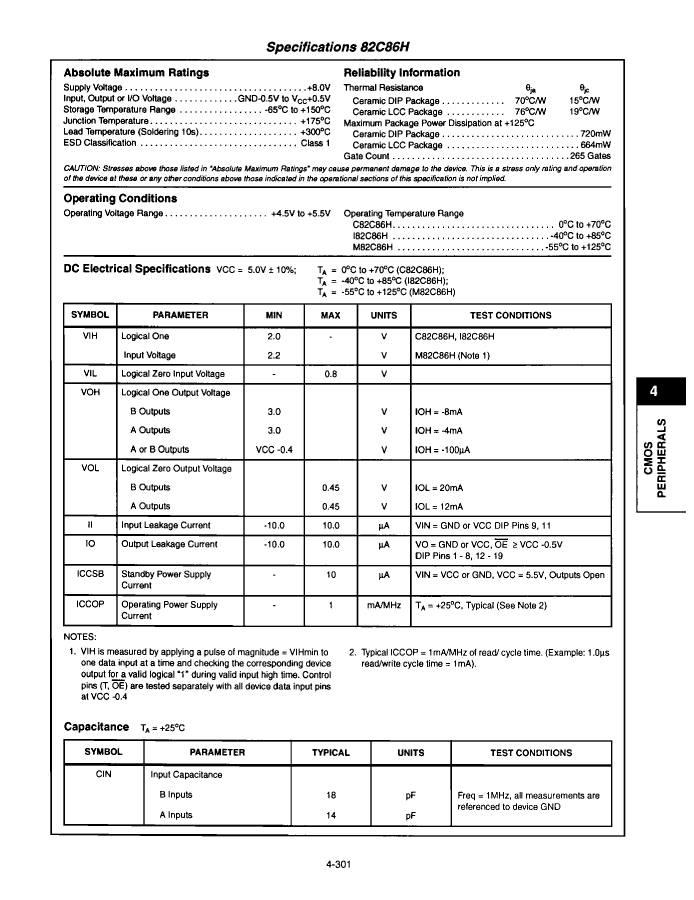

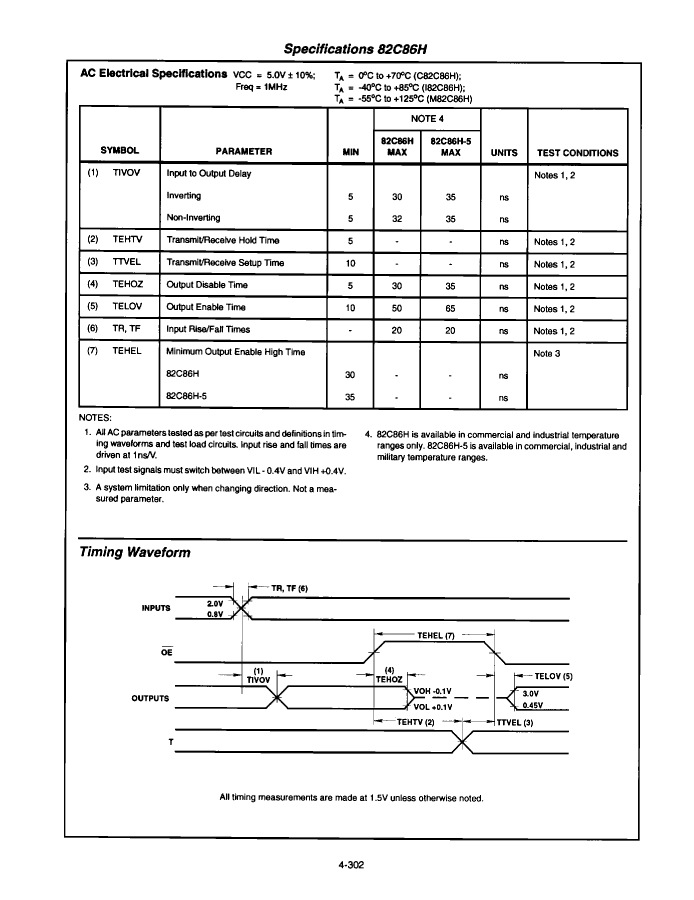

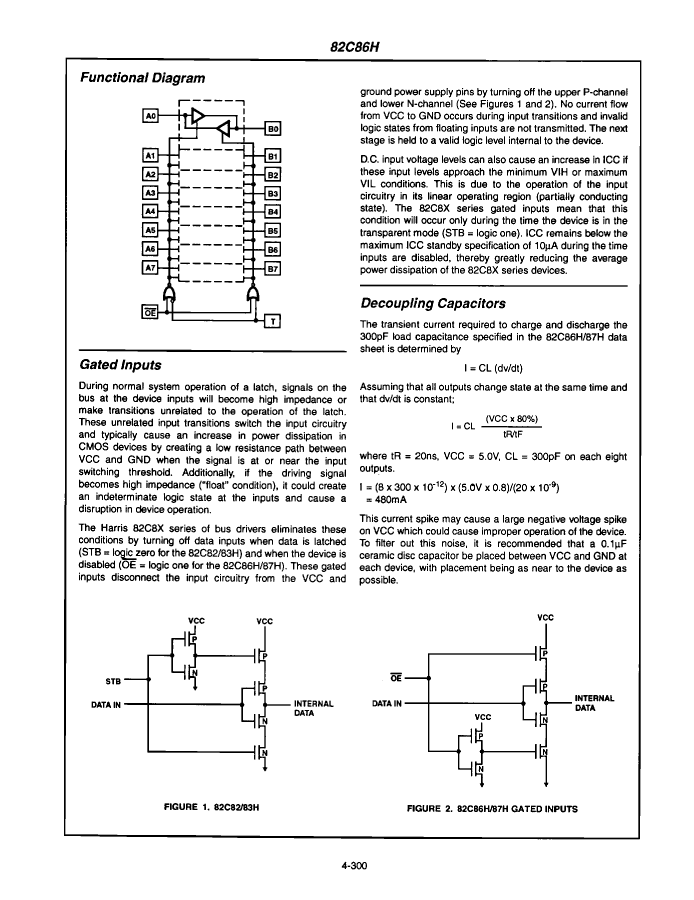

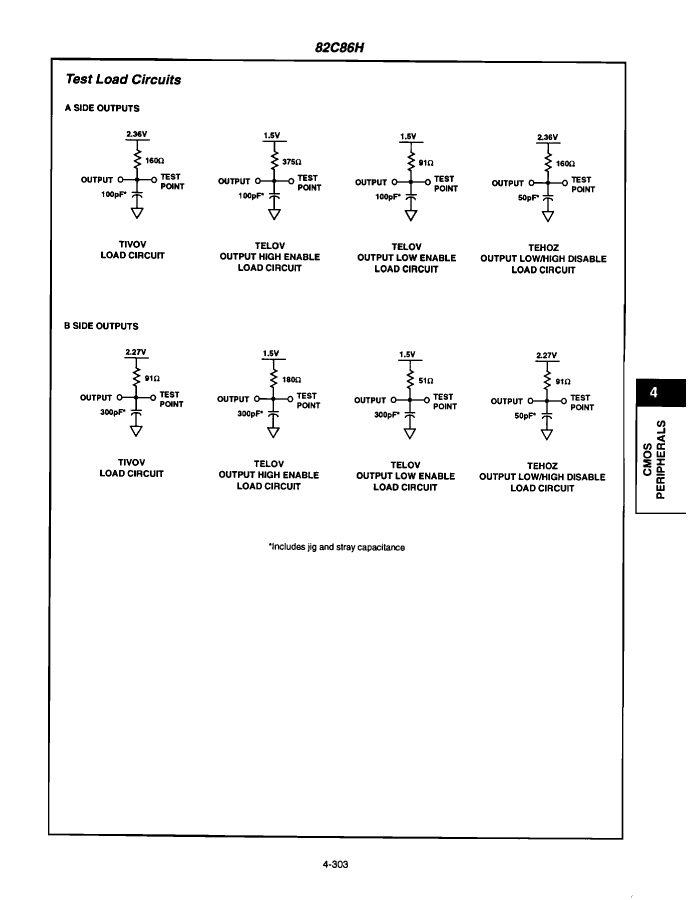

5962-87577012X: DescriptionBus Transceiver, CMOS Series, 1-Func, 8-Bit, True Output, CMOS, CPGA68; Categorylogic logic; File Size191KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-87577012X Overview

Bus Transceiver, CMOS Series, 1-Func, 8-Bit, True Output, CMOS, CPGA68

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	GATED INPUTS ELIMINATE THE NEED FOR PULL-UP RESISTORS
series	CMOS
JESD-30 code	S-CPGA-P68
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
Base Number Matches	1

	5962-87577012X	5962-8757701RX
Description	Bus Transceiver, CMOS Series, 1-Func, 8-Bit, True Output, CMOS, CPGA68	Bus Transceiver, CMOS Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20
Reach Compliance Code	unknown	unknown
Other features	GATED INPUTS ELIMINATE THE NEED FOR PULL-UP RESISTORS	GATED INPUTS ELIMINATE THE NEED FOR PULL-UP RESISTORS
series	CMOS	CMOS
JESD-30 code	S-CPGA-P68	R-GDIP-T20
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	68	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	SQUARE	RECTANGULAR
Package form	GRID ARRAY	IN-LINE
propagation delay (tpd)	35 ns	35 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	PIN/PEG	THROUGH-HOLE
Terminal location	PERPENDICULAR	DUAL
Base Number Matches	1	1
