Composite
Backshells
CONNECTOR DESIGNATOR:
with Self-Locking Rotatable Coupling
327-060
Extender Backshell
A
A
F
H
G
U
MIL-DTL-5015, -26482 Series II,
and -83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
MIL-DTL-28840
DG123 and DG123A
Product Series
327
- Extender Backshell
Angle and Profile
T
- 45° Elbow
W
- 90° Elbow
S
- Straight
Finish Symbol
(See
Table II)
Length in 1/8 Inch
Incriments
(ex.
6 = .750")

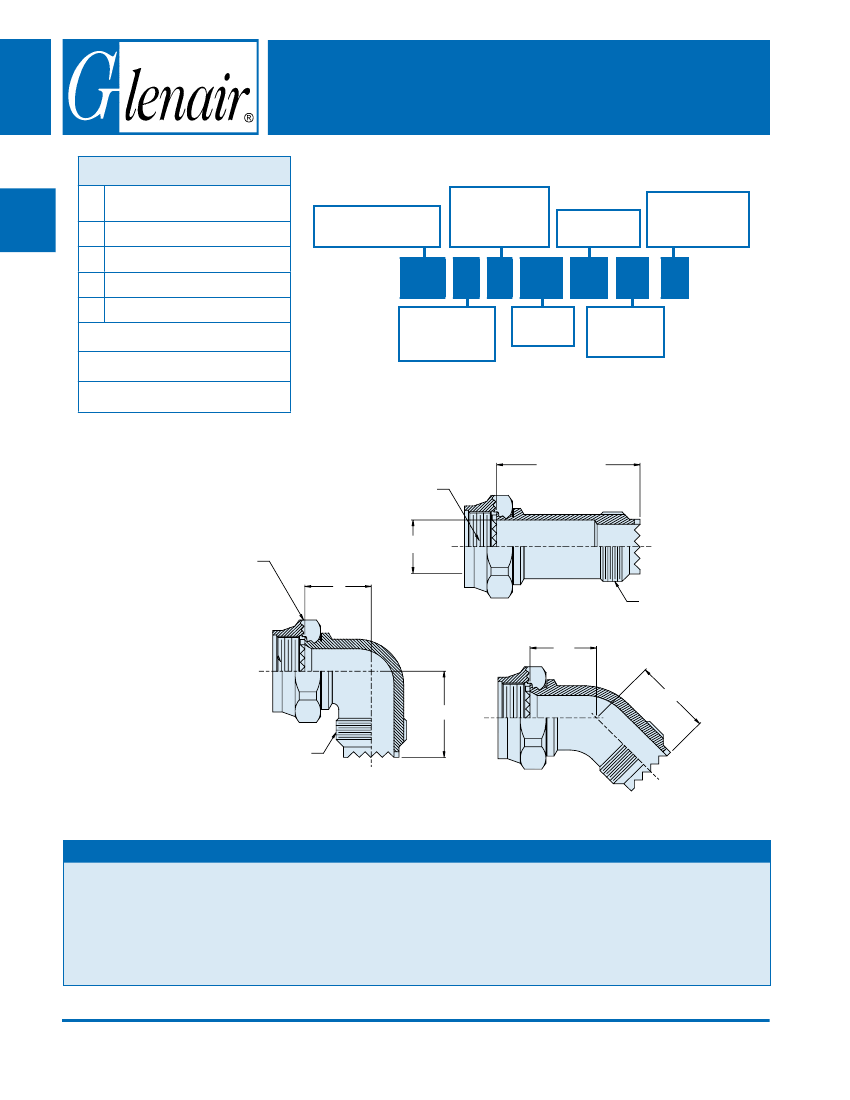

327
A W 060
Basic Part
Number
XM
16 - 6
B
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
Note: See Table I in Intro for
Front-End Dimensional Details
Connector
Designator
A, F, H, G and U
Connector
Shell Size
(See
Table III)
C
Anti-Decoupling Device
A Thread Typ.
Length
(see Note 2)
J (See Note 3)
E
D
A Thread Typ.
G
H
E
F
A Thread Typ.
F
APPLICATION NOTES
1.
2.
3.
4.
5.
Metric dimensions (mm) are in parentheses and are for reference only.
Available length, straight configuration only, 6 = .750 (19.1), 8 = 1.00 (25.4), consult factory for additional length. Omit length
designator for angular functions.
J Diameter applicable to connector Code H, straight configuration only.
Coupling nut supplied unplated.
See Table I in Intro for front-end dimensional details.
CAGE Code 06324
Printed in U.S.A.
G
© 2009 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-32
REV 22 NOVEMBER 2013
with Self-Locking Rotatable Coupling
327-060
Extender Backshell
TABLE II: FINISH
Symbol
XM
Finish Description
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
No Plating - Brown Color (Non-Conductive Finish)
No Plating - Black Color (Non-Conductive Finish)
2000 Hour Corrosion Resistant Cadmium/Olive
Drab over Electroless Nickel
XMT
XO
XB
XW
TABLE III: CONNECTOR SHELL SIZE ORDER NUMBER
Shell Size For
Connector Designator
E
G
H
F
Max
Max
Max
Max
H
A, F
.74 (18.8) 1.00 (25.4) .78 (19.8) .89 (22.6)
09
08
.80 (20.3) 1.06 (26.9) .81 (20.6) .92 (23.4)
11
10
.86 (21.8) 1.12 (28.4) .81 (20.6) .94 (23.9)
13
12
.93 (23.6) 1.19 (30.2) .82 (20.8) .97 (24.6)
15
14
.99 (25.1) 1.25 (31.8) .84 (21.3) .99 (25.1)
17
16
1.05 (26.7) 1.31 (33.3) .85 (21.6) 1.00 (25.4)
19
18
1.12 (28.4) 1.38 (35.1) .88 (22.4) 1.03 (26.2)
21
20
1.18 (30.0) 1.44 (36.6) .92 (23.4) 1.07 (27.2)
23
22
1.24 (31.5) 1.50 (38.1) .97 (24.6) 1.08 (27.4)
25
24
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-33
REV 22 NOVEMBER 2013
