Push-Pull connectors
Introduction
This catalog presents the push-pull connectors ranges for industrial applications.
These products are particularly suitable for high reliability and high quality applications where a simple yet fast method to
connect/disconnect is required. Also suitable for high endurance and ease of operation in very limited spaces. The aesthetics
of the product allows for perfect integration on front panel equipments.
SOURIAU offers 3 main series of metallic circular connectors :
•
JBX series
: basic push-pull series for signal transmission
•
JKX series
: environmental version of the JBX series sealed to IP68
•
JAX series
: complementary range including coaxial contact layouts.
Contents
Where and why push-pull................................................................................................3
Selection guide.................................................................................................................4
JBX series
• Main features - Part number system.................................................................................5
• Shell types and dimensions..........................................................................................6-8
• Keying..............................................................................................................................9
• Contact layouts.........................................................................................................10-12
• Options...........................................................................................................................13
• Technical characteristics................................................................................................14
• Wiring and assembly instructions..............................................................................15-19
JAX series
• Main features - Part number system...............................................................................20
• Shell types and dimensions............................................................................................21
• Contact layouts..............................................................................................................22
• Suffix for cable outside diameter - Options...................................................................23
• Technical characteristics................................................................................................24
• JAX camac series.....................................................................................................25-26
• Wiring and assembly instructions.............................................................................27-30
JKX series
• Main features - Part number system...............................................................................31
• Shell types and dimensions............................................................................................32
• Keying - contact layouts.................................................................................................33
• Options...........................................................................................................................34
• Technical characteristics................................................................................................35
• Wiring and assembly instructions..............................................................................36-39
JBX series-sealed version size 2
• Main features - Part number system...............................................................................40
• Shell types and dimensions............................................................................................41
• Keying - contact layouts.................................................................................................42
• Technical informations....................................................................................................43
Accessories - Piece parts.........................................................................................44-46
Toolings......................................................................................................................47-48
More about our know-how.............................................................................................49
Requirement form...........................................................................................................50
Conversion table.............................................................................................................51
All dimensions are in mm
2

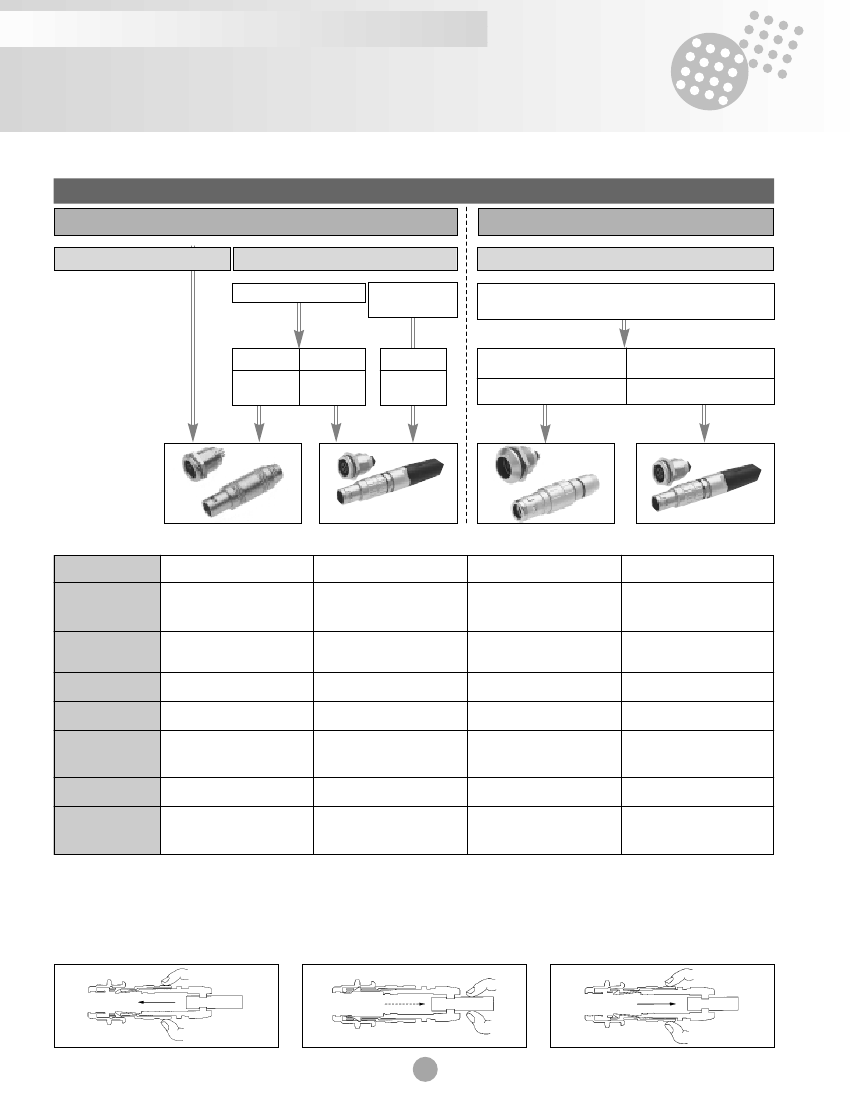

Selection Guide
Push-Pull
Unsealed
Coaxial
Solder
Multipin
Crimp or
PCB contacts
Sealed
Multipin
Solder,
crimp or PCB contacts
Not keyed
1 to 14
contacts
Keyed
2 to 30
contacts
Keyed
2 to 30
contacts
Keyed
2 to 10 contacts
Keyed
until 19 contacts
UL approved
JAX series
JBX series
JKX series
Sealed JBX size 2
Shell material
Insulator material
Brass
Tefzel for coaxial contact
Nylatron for multipin
layout
Shielded
(65 dB up to 100 MHz)
> 1000 cycles
up to 30 A
- 40°C ; + 125°C
(- 40°F ; + 257°F)
IP 40
JAX Camac connectors
(coaxial, size 00) (optional
sealed version : consult us)
Brass
Fortron
Peek for layout with
contacts of 0.5 mm of Ø
Shielded
(55 dB up to 100 MHz)
> 1000 cycles
up to 30 A
- 50°C ; + 125°C
(- 58°F ; + 257°F)
IP 40
Brass
Fortron
Peek for layout with
contacts of 0.5 mm of Ø
Shielded
(55 dB up to 100 MHz)
> 1000 cycles
up to 15 A
- 50°C ; + 125°C
(- 58°F ; + 257°F)
IP 68 when mated
Brass
Fortron
Peek for layout with
contacts of 0.5 mm of Ø
Shielded
(55 dB up to 100 MHz)
> 1000 cycles
up to 30 A
- 40°C ; + 80°C
(- 40°F ; + 176°F)
IP 67
Shielding
Endurance
Current rating
Temperature
range
Protection index
Specific version
Push-pull locking system
The locking of the plug into the receptacle
is achieved by a simple axial push on the
outer shell.
Connection cannot be broken by pulling
the cable or any other parts of the plug
than the outer shell.
To unmate the plug from the receptacle,
just pull axially the outer shell.
4
JBX Series

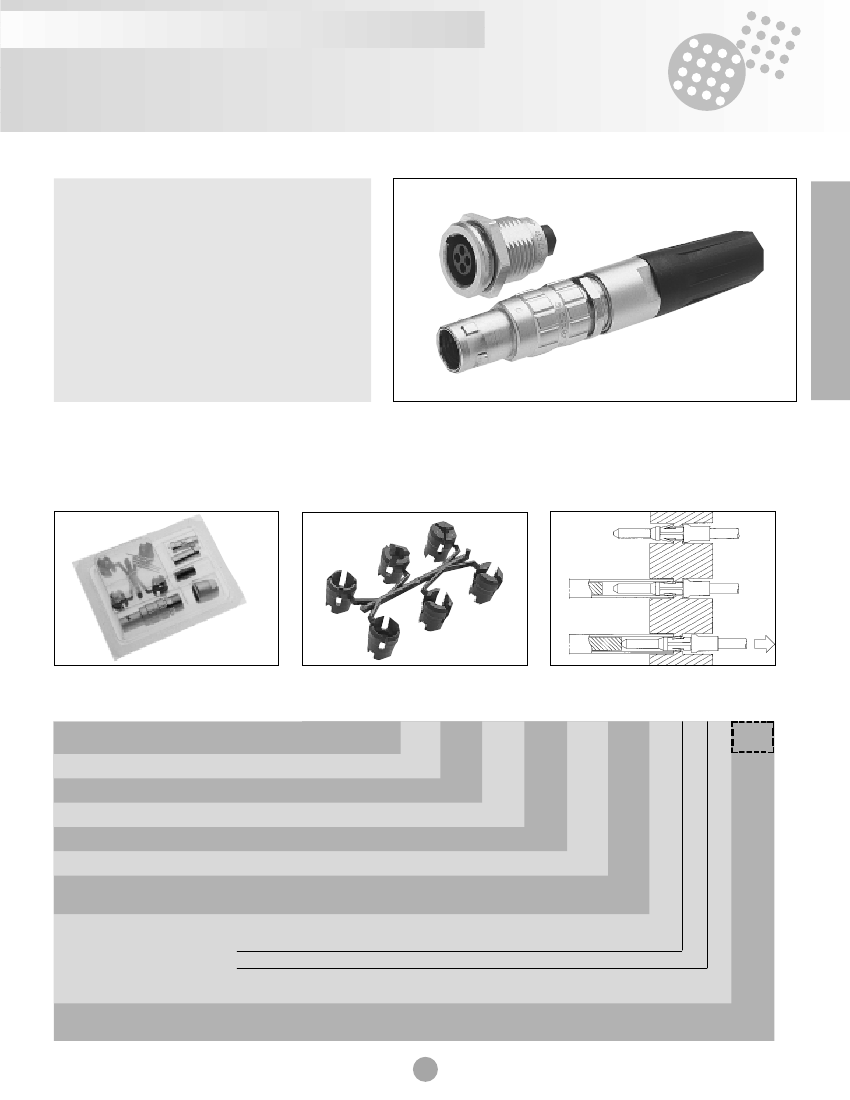

Key features
JBX Series
Removable contacts
Available crimp versions allow easier
wiring and maintenance.
• Mechanically keyed : ensures correct polarisation
and alignment.
• Contact layouts from 2 to 30 contacts.
• Wire gauges range from 30 AWG to 12 AWG.
• High contact density in a small space.
• Contact termination in either crimp, solder or PCB
contacts.
User advantages
Blister packaging
6-collet cluster
Allows a wide range of cable diameter
applications for a single connector.
Reduces inventory variations
Part number system
Basic series
Shell type
Shell size
Keying
Contact layout
Contact type
Contact termination
Material & surface plating
JBX
FD-FC-ER-EA-SR-PC-ED-EP-EZ
00 - 0 - 1 - 2 - 3
FD
1
G
05
M
C
S
D
S
M
G - J - A - B & customs are available
02 ---------- 30
M
: pin
F
: socket
C
: crimp ;
S
: solder ;
P*
: straight PCB tails ;
Q*
: 90° PCB tails ;
W
: 0.7 mm clipped solder
S
: Outer shell in brass alloy with chrome over nickel
N
: Outer shell in brass alloy with black plating
D
: Obligatory suffix
S
: Insulator in PPS
P
: insulator in PEEK
Options
M
: Connector with backnut for protective boot - Protective boot to order separately page 13
R
: Red dot (possible for FD, FC, PC, SR, ER, ED, EZ only)
5
* For receptacles with female contacts only
JBX Series
Shell types

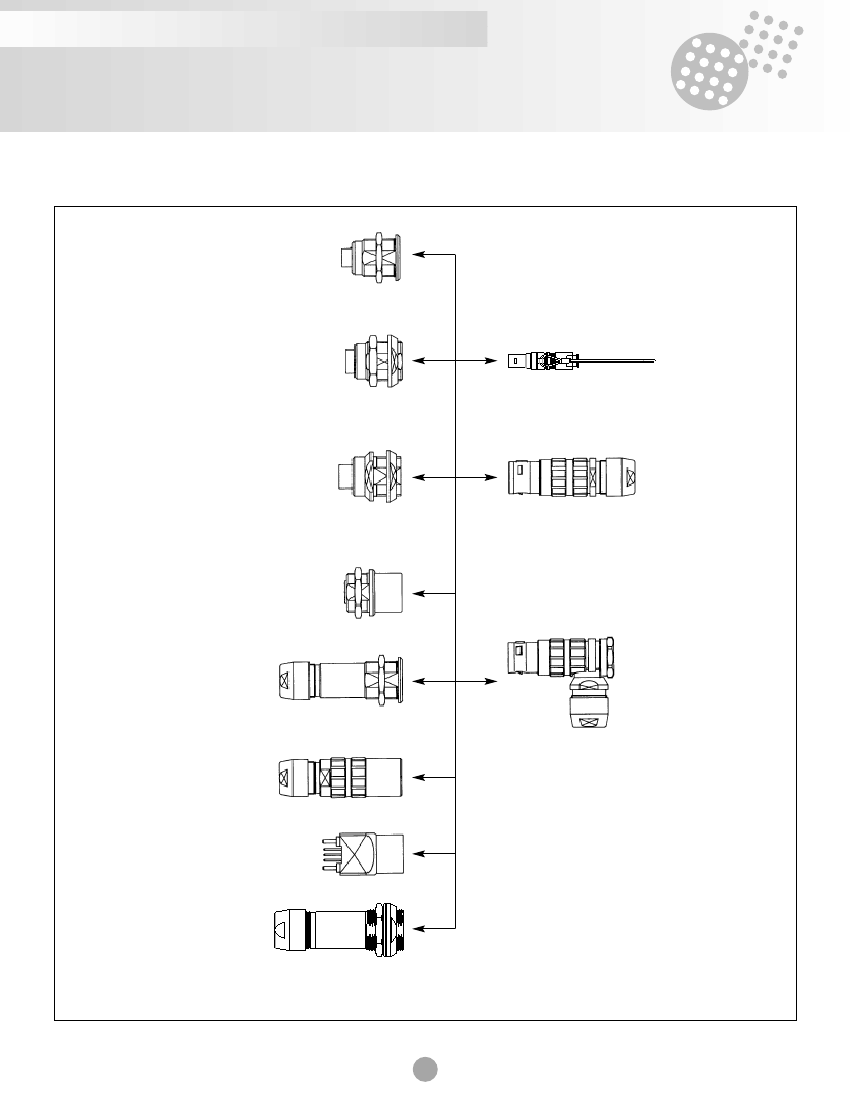

ER :
fixed receptacle,front panel mounting, fixed
front flange
FN :
straight plug with cable clamping & lanyard
EA :
fixed receptacle, back or front panel mounting,
double nuts fixing (appropriate with 90° contacts
for PCB)
EP :
fixed receptacle, back panel mounting, fixed rear
panel flange (appropriate with 90° contacts for
PCB)
FD :
straight plug with cable clamping
ED :
fixed receptacle, protruding shell, fixed front flange
SR :
fixed receptacle with cable clamping, front panel
mounting, fixed front flange
FC :
90° elbow ºplug with cable clamping
PC :
cable mounted receptacle
EZ :
straight receptacle for PCB
SA :
fixed receptacle with cable clamping, front or back
panel mounting
6
