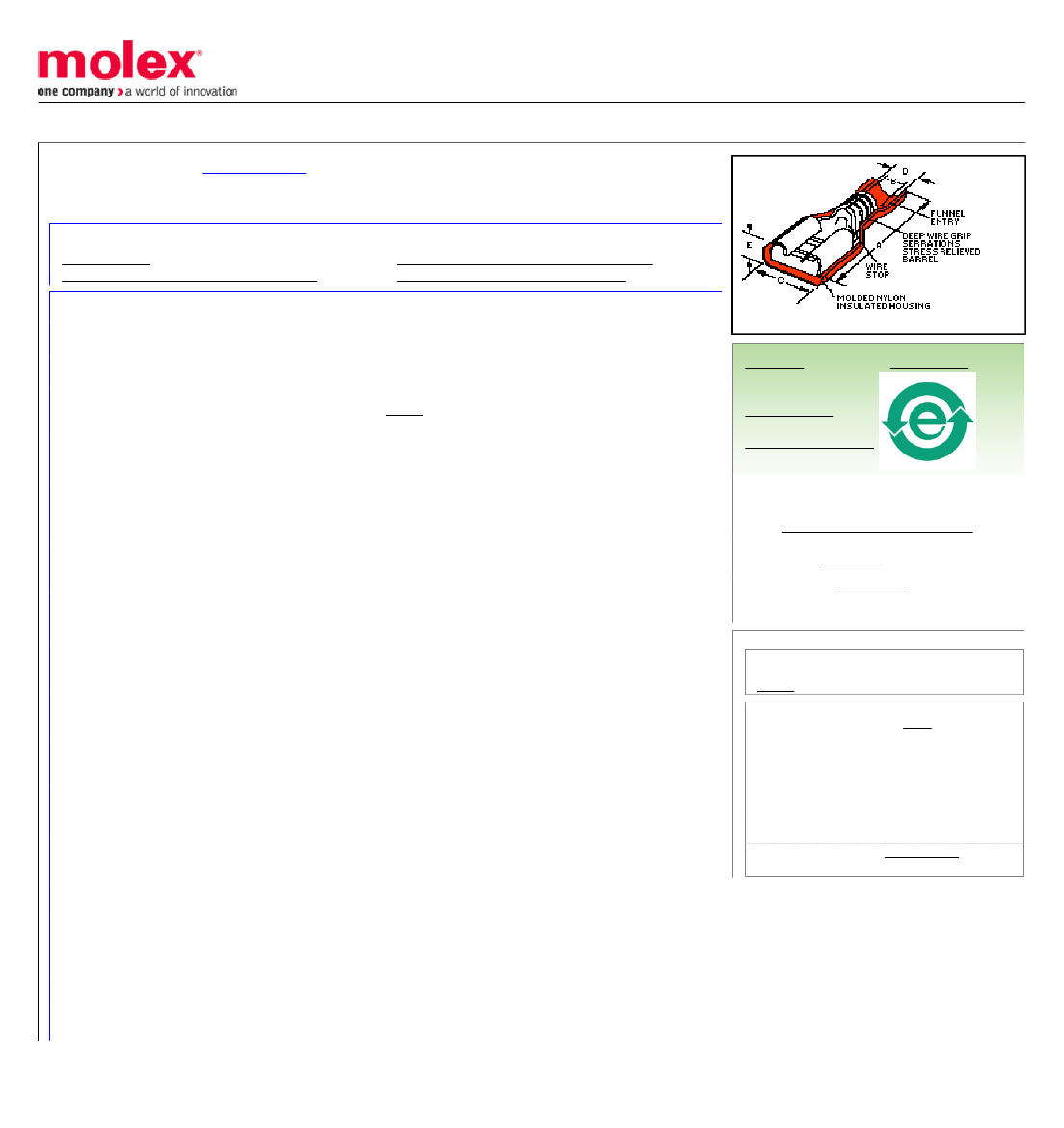

This document was generated on 01/20/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190030034
Active
InsulKrimp™ Female Quick Disconnect, for 18-22 AWG Wire Range
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
Product Specification PS-19902-011 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR18689
E79133
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19003
Funnel Entry
Yes
InsulKrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Packaging Type
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
Female
No
Nylon (PA)
None
Brass
Tin
Tin
Nylon
Straight
Reel
4.064µm
4.064µm
No
0.81mm
2.79mm
-65°C to +105°C
Crimp or Compression
5.84mm max.
18, 20, 22
0.35 - 0.80
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19003Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638837200
Applicator
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
AA-2205XC
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-19902-008, PS-19902-011
SD-19003-006
