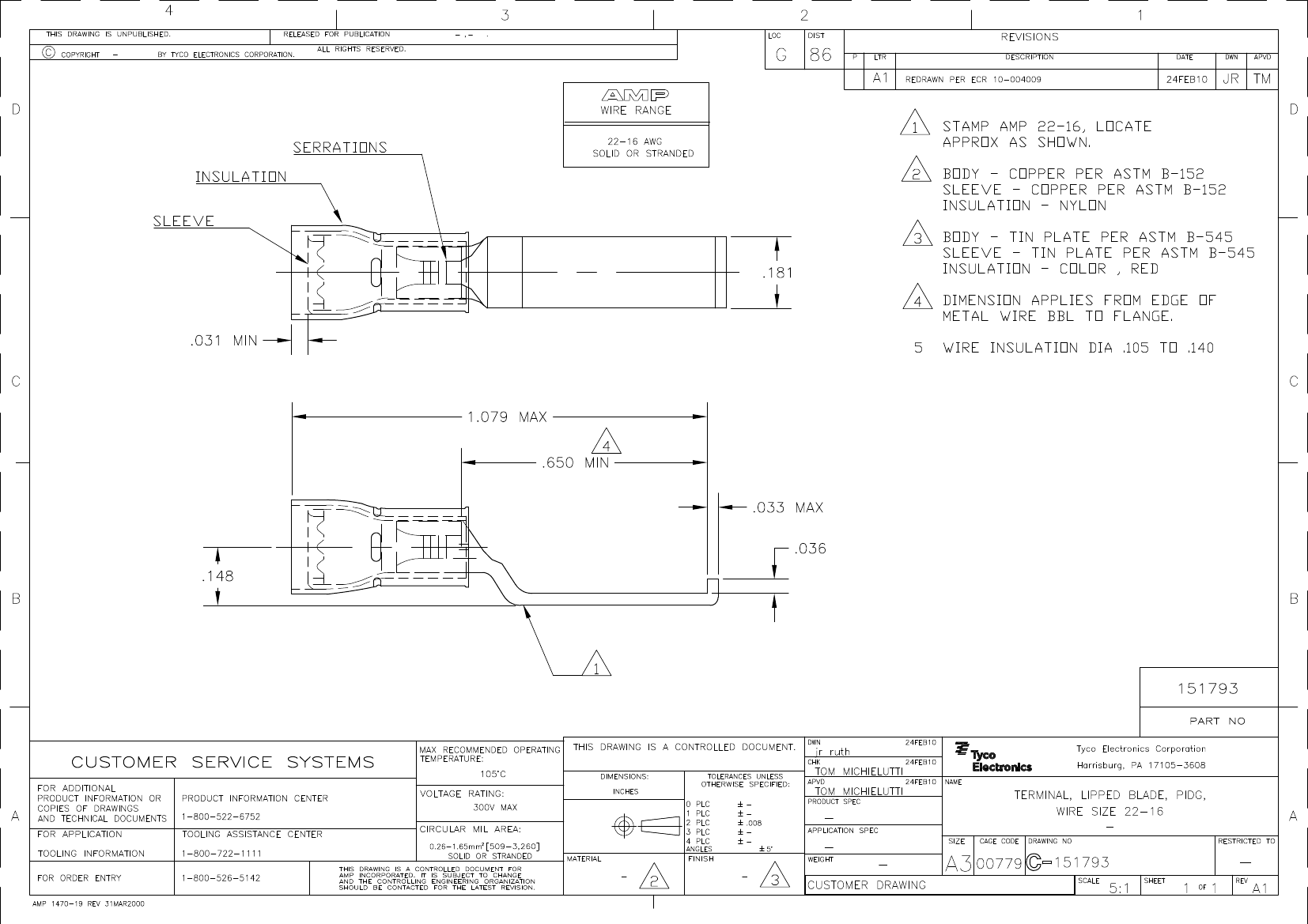

22-16 LIPPED BLADE EXP.1
| Parameter Name | Attribute value |
| Crimp barrel type | Closed crimping barrel |
| Cable type | Conventional wire |
| Sealable | no |
| Insulated | Yes |
| Support types | Insulating support |
| Insulation color | red |
| Plating materials | tin |
| Insulation Materials | nylon |
| Double line | no |
| Casing plating materials | tin |
| Casing material | copper |
| Plating thickness | 2.54 µm [ 99.9998 µin ] |
| Terminal and connector types | Tab |
| Terminal type | blade |
| Thickness of male end | .83 mm [ .033 in ] |
| Terminal direction | Straight |
| Terminal length | 16.51 mm [ .648843 in ] |
| Bullet terminal | Without |
| with conductor insulation | with |
| Width of male end | 4.592 mm [ .181 in ] |
| Wire insulation diameter (maximum) | 3.55 mm [ .139515 in ] |
| Accepts Wire Insulation Diameter Range | 2.66 – 3.55 mm [ .105 – .14 in ] |
| Wire Size (AWG) | 22 – 18 |
| Wire Size (mm²) | .26 – 1.65 |
| Wire size (CMA) | 509 – 3260 |
| Inner diameter of crimping barrel | 3.68 mm [ .144624 in ] |
| Material thickness | .83 mm [ .0326 in ] |
| total length | 27.4 mm [ 1.0787 in ] |
| Working group temperature range | 105 °C [ 221 °F ] |
| Overload | no |
| Encapsulation method | box |
| Package quantity | 1000 |
| Pressing barrel color | red |
