M20-9723446: DescriptionHeaders u0026 Wire Housings 34+34 DIL VERTICAL PIN HEADER TIN; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M20-9723446 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M20-9723446	-	-	View	Buy Now

M20-9723446 Overview

Headers u0026 Wire Housings 34+34 DIL VERTICAL PIN HEADER TIN

M20-9723446 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.1 inch
body length	3.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Base Number Matches	1

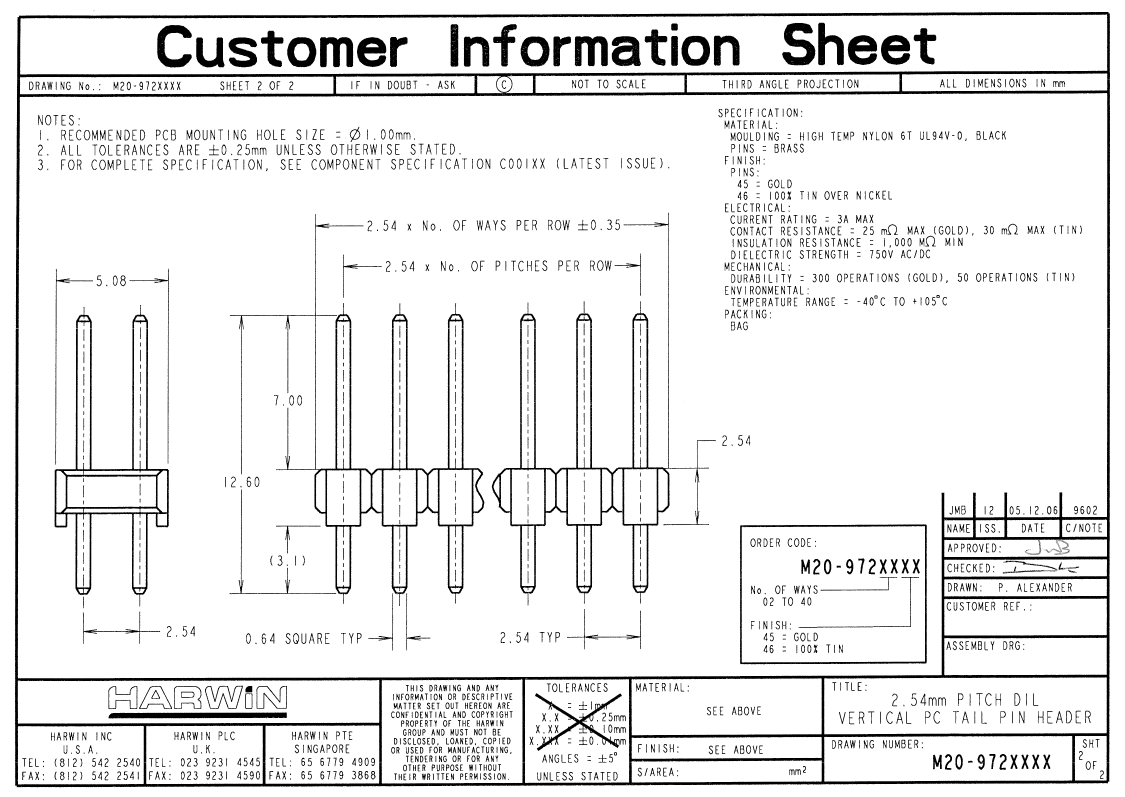

Preview

Download Datasheet

View All

OBSOLETE

No. of Contacts per Row:

21 to 23, 26 to 35, 37 to 39
