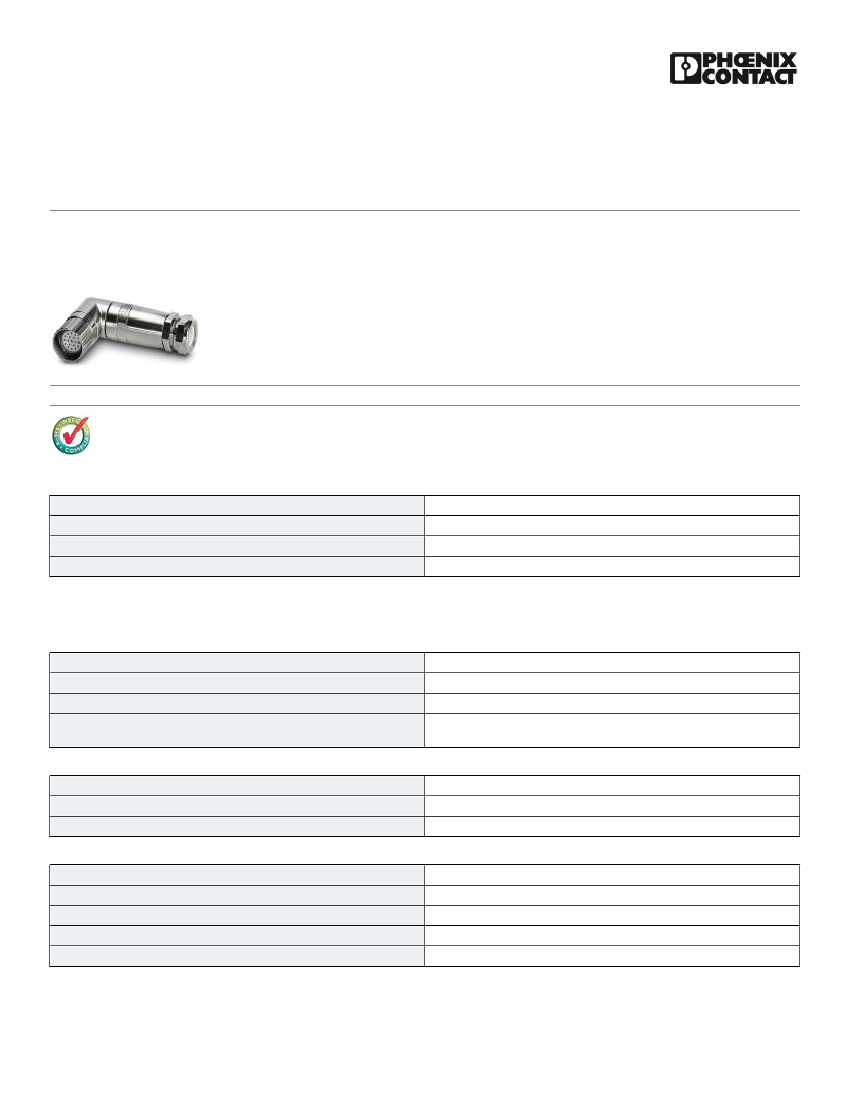

Female connector - RC/TWGM/KVD/LBL 16+3 - 1685518
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Socket M23, 19-pos., angled, shielded, freely configurable, with solder connection, for external cable diameter 9.5
mm ... 14.5 mm
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
215.5 g
85366990
Germany
Technical data
General
Rated voltage
Total rated current
Number of positions
Note
150 V
10 A (with 1 mm² conductor cross section)
19
The connector is designed for use on sensor/actuator boxes with an M23
plug-in connection.
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP65
IP67
-20 °C ... 125 °C
Master cable data/connection data
Connection method
Conductor cross section max. (signal)
Conductor cross section max. (energy)
External cable diameter min.
External cable diameter max.
M23 screw locking
1 mm²
1.5 mm²
9.5 mm
14.5 mm
04/26/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1685518
Female connector - RC/TWGM/KVD/LBL 16+3 - 1685518
Technical data
Insulation material
Housing material
Housing surface material
Contact material
Contact surface material
Contact carrier material
Sealing material
GD-Zn
Nickel-plated
CuZn
Gold-plated
PBT
FPM
Connection assignment
Slot/position = pin = conductor color
1 / 4 (A) = 15 = WH
1 / 2 (B) = 7 = GY/PK
2 / 4 (A) = 5 = GN
2 / 2 (B) = 4 = RD/BU
3 / 4 (A) = 16 = YE
3 / 2 (B) = 8 = WH/GN
4 / 4 (A) = 3 = GY
4 / 2 (B) = 14 = BN/GN
5 / 4 (A) = 17 = PK
5 / 2 (B) = 9 = WH/YE
6 / 4 (A) = 2 = RD
6 / 2 (B) = 13 = YE/BN
7 / 4 (A) = 11 = BK
7 / 2 (B) = 10 = WH/GY
8 / 4 (A) = 1 = VT
8 / 2 (B) = 18 = GY/BN
1-8 / 1 (+ 120 V) = 19 = BN
1-8 / 3 (0 V) = 6 = BU
1-8 / 5 (PE) = 12 = GN/YE
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27261203
27440202
27440202
04/26/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1685518
Female connector - RC/TWGM/KVD/LBL 16+3 - 1685518
Accessories
Pipe spanner - PLUSCON-RCS - 1665062
Special pipe spanner, tool for mounting the M23 connector housing (with assembly), for coupling and sleeve housing
Drawings
Schematic diagram
N
12
1
11
2
18
17
13
10
19
3
16 9
SO
8
4 14
15
5
7
6
Dimensional drawing
Ø26
M23x1
27
27
Pin assignment M23 socket,
19-pos., female side view
72,4
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
59,8
04/26/2016 Page 4 / 4
