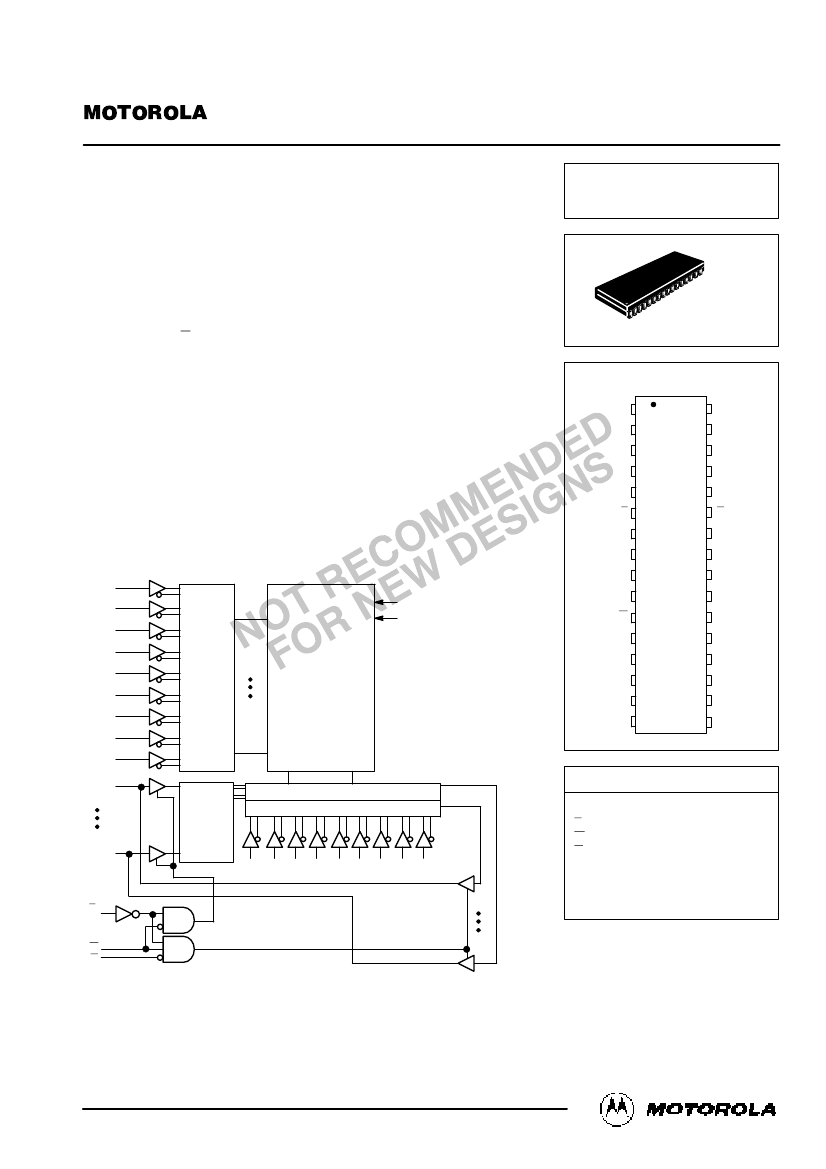

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Order this document

by MCM6729/D

256K x 4 Bit Fast Static Random

Access Memory

The MCM6729 is a 1,048,576 bit static random access memory organized as

262,144 words of 4 bits. This device is fabricated using high performance silicon–

gate BiCMOS technology. Static design eliminates the need for external clocks

or timing strobes.

Output enable (G) is a special control feature that provides increased system

flexibility and eliminates bus contention problems.

This device meets JEDEC standards for functionality and revolutionary pinout,

and is available in a 400 mil plastic small–outline J–leaded package.

•

Single 5 V

10% Power Supply

Fully Static — No Clock or Timing Strobes Necessary

All Inputs and Outputs Are TTL Compatible

Three State Outputs

Fast Access Times: 10, 12 ns

Center Power and I/O Pins for Reduced Noise

MCM6729

WJ PACKAGE

400 MIL SOJ

CASE 857A–02

PIN ASSIGNMENT

DQ0

DQ3

VSS

VCC

DQ2

BLOCK DIAGRAM

DQ0

INPUT

DATA

CONTROL

DQ3

ROW

DECODER

MEMORY

MATRIX

512 ROWS x 512 x 4

COLUMNS

VCC

VSS

VCC

VSS

DQ1

PIN NAMES

COLUMN I/O

COLUMN DECODER

A0 – A17 . . . . . . . . . . . . . . Address Input

E . . . . . . . . . . . . . . . . . . . . . . Chip Enable

W . . . . . . . . . . . . . . . . . . . . Write Enable

G . . . . . . . . . . . . . . . . . . . Output Enable

DQ0 – DQ3 . . . . . . . . Data Input/Output

VCC . . . . . . . . . . . . + 5 V Power Supply

VSS . . . . . . . . . . . . . . . . . . . . . . . Ground

NC . . . . . . . . . . . . . . . . . . No Connection

REV 4

5/95

Motorola, Inc. 1995

MOTOROLA FAST SRAM

MCM6729
