893D
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT
™, Molded Case, Built-In-Fuse Miniature

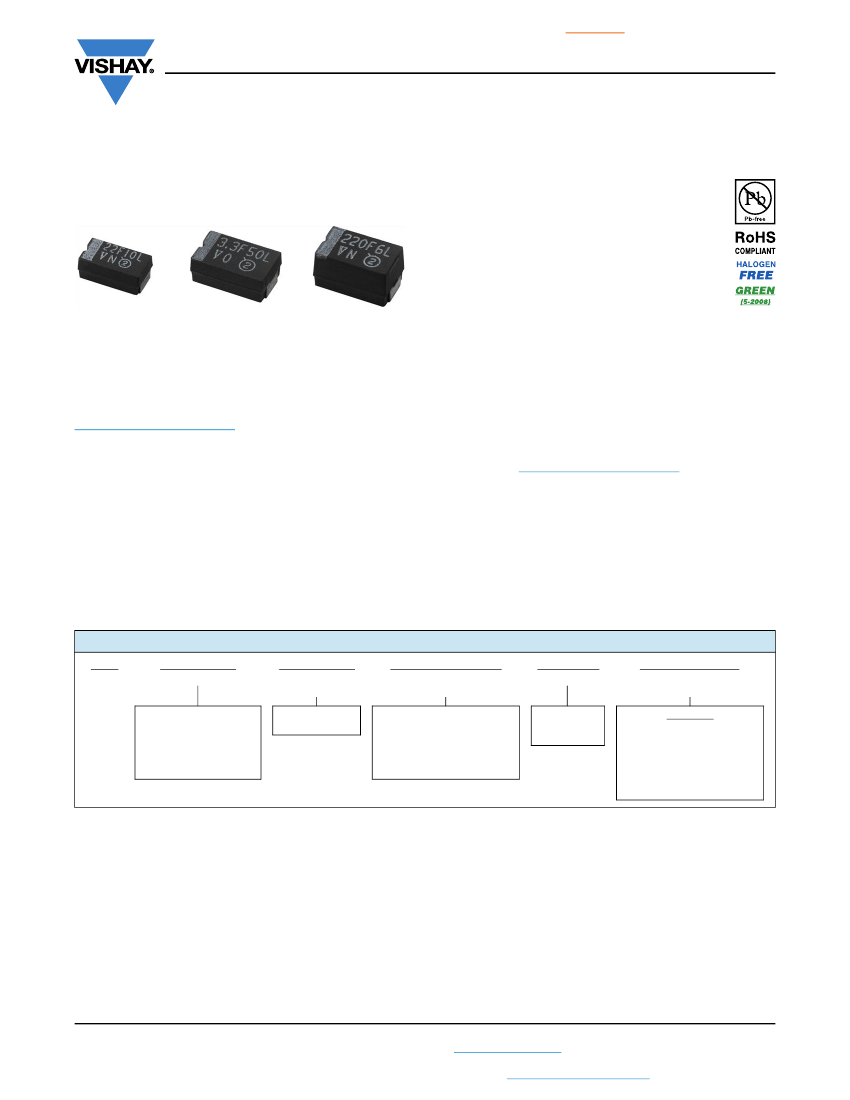

FEATURES
• Electrically activated internal fuse
• Fuse activation at 25 °C: 0.1 s max. with 5 A
min. applied current
• 100 % surge current tested
(D and E case codes)
• Terminations: 100 % matte tin standard
• Molded package available in three case
codes
• Compatible with “high volume” automatic pick and place
• Compliant terminations
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40192
Operating Temperature:
-55 °C to +125 °C
(above 85 °C voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
100 % Surge Current Tested
(D and E case codes)
Voltage Rating:
4 V
DC
to 50 V
DC
• Meets EIA-535-BAAC mechanical and performance
requirements
• Moisture sensitivity level 1
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Industrial
• Telecom infrastructure
• Medical
• Computer
• General purpose
ORDERING INFORMATION
893D
TYPE
106
CAPACITANCE
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the number
of zeros to follow.
X0
CAPACITANCE
TOLERANCE
X9 = ± 10 %
X0 = ± 20 %
010
DC VOLTAGE RATING
AT +85 °C
This is expressed in V.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
B
CASE CODE
See Ratings
and Case
Codes table
2WE3
TERMINATION AND
PACKAGING
Matte tin
2TE3
= 7" (178 mm) reel
2WE3
= 13" (330 mm) reel
2DE3
= 7" (178 mm) reel,
dry pack
2RE3
= 13" (330 mm) reel,
dry pack
Notes
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating
• Dry pack as specified in J-STD-033 for MSL3. Applicable for D and E cases only
Revision: 07-Nov-17
Document Number: 40008
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
893D
www.vishay.com
Vishay Sprague

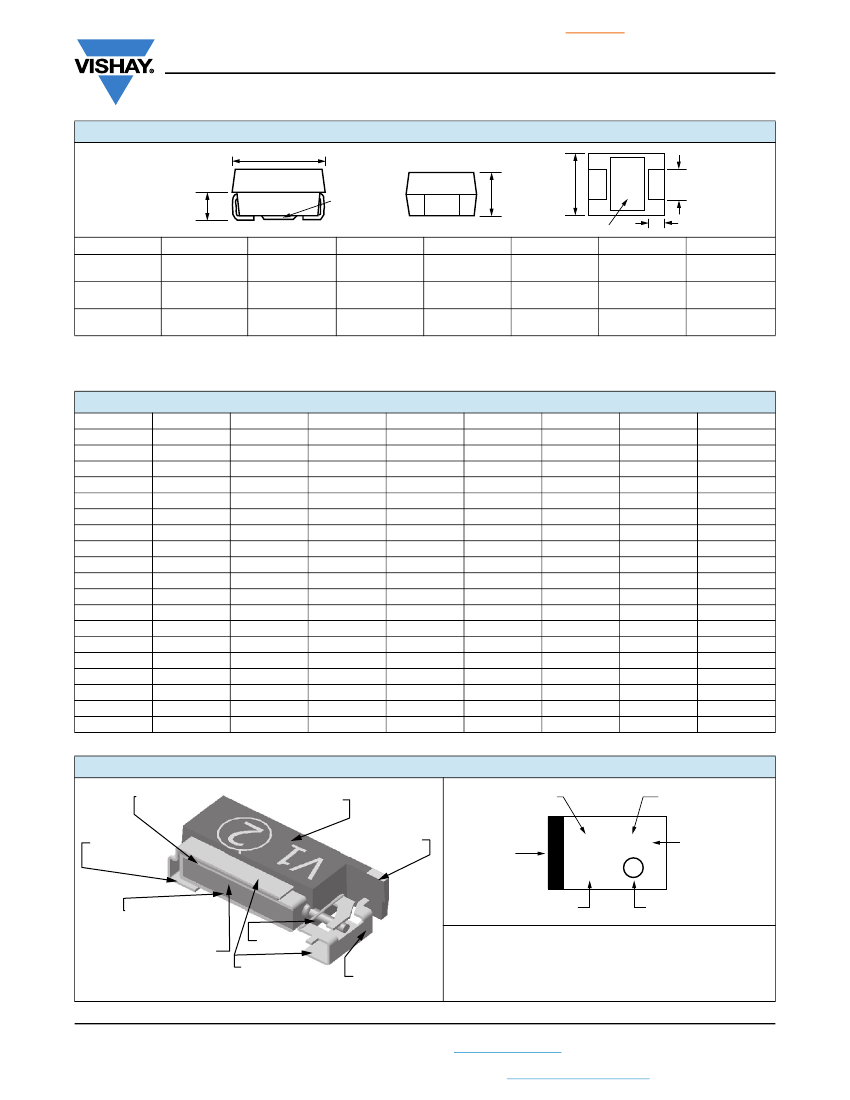

DIMENSIONS
in inches [millimeters]
L
W
T
H
(MIN.)
Glue Pad
H
Glue Pad
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option)
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C
C/D
C/D
D/E
D/E
C
C
D
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
E
E
C
C
C
C/D
D
D/E
E
E
C/D
C
C
C
C/D
D
D/E
E
C
C
C
C/D
D
D/E
D/E
E
CONSTRUCTION AND MARKING
Silver
adhesive
Epoxy encapsulation
Capacitance
Voltage
Solderable
cathode
termination
Anode polarity bar
Polarity
band
22 F 10L
XX
Date code
Indicates
lead (Pb)-free
2
Vishay marking
MnO
2
/ carbon /
silver
coating
Fusible
wire
Lead frame
Solderable
anode
termination
Sintered
tantalum pellet
Marking:
Capacitors shall be marked with an anode polarity band,
capacitance (in microfarads) and the rated DC working voltage
85 °C. The capacitance voltage will be separated by the letter
“F” indicating a fused capacitor. Units rated at 6.3 V shall be
marked as 6 V.
Revision: 07-Nov-17
Document Number: 40008
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
893D
www.vishay.com
Vishay Sprague
FUSE ACTIVATION
TYPICAL CURVE
10
+
1
TIME (s)
0.1
+
+
0.01
+
+
+
+
+
+
+
+
0.001
+
+
+
+
+
2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
CURRENT (A)
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
8
8
8
15
8
16
6
6
6
6
6
6
6
8
8
8
8
8
8
MAX. ESR
AT +25 °C
100 kHz
()
1.4
0.8
0.6
0.6
0.6
0.5
0.5
1.8
1.8
1.4
1.3
0.9
0.8
0.7
0.7
0.7
0.6
0.6
0.5
0.5
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.28
0.37
0.50
0.50
0.50
0.57
0.57
0.25
0.25
0.28
0.29
0.41
0.37
0.46
0.46
0.49
0.50
0.50
0.57
0.57
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
68
100
150
220
330
330
470
15
22
33
47
47
68
68
100
100
150
220
220
330
C
C
D
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
893D686(1)004C(2)
893D107(1)004C(2)
893D157(1)004D(3)
893D227(1)004D(3)
893D337(1)004D(3)
893D337(1)004E(3)
893D477(1)004E(3)
893D156(1)6R3C(2)
893D226(1)6R3C(2)
893D336(1)6R3C(2)
893D476(1)6R3C(2)
893D476(1)6R3D(3)
893D686(1)6R3C(2)
893D686(1)6R3D(3)
893D107(1)6R3D(3)
893D107(1)6R3E(3)
893D157(1)6R3D(3)
893D227(1)6R3D(3)
893D227(1)6R3E(3)
893D337(1)6R3E(3)
2.7
4.0
6.0
8.8
13.2
13.2
18.8
0.9
1.1
1.6
2.3
2.3
3.3
3.3
6.0
6.0
9.0
13.2
13.2
19.8
6.3 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: X0, X9
(2) Terminations and packaging: 2TE3, 2WE3
(3) Terminations and packaging: 2TE3, 2WE3, 2DE3, 2RE3
Revision: 07-Nov-17
Document Number: 40008
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
893D
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6
6
6
6
6
6
6
8
10
6
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
()
1.8
1.8
1.4
1.3
0.9
1.0
0.7
0.7
0.7
0.6
0.6
0.5
0.5
2.0
1.8
1.4
1.3
0.9
1.0
0.7
0.7
0.7
0.6
0.6
0.4
2.0
1.9
1.6
1.4
0.9
0.7
0.7
0.7
0.6
0.6
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.25
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.49
0.50
0.50
0.57
0.57
0.23
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.49
0.50
0.52
0.64
0.22
0.24
0.26
0.28
0.41
0.46
0.46
0.49
0.52
0.52
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
10
15
22
33
33
47
47
68
68
100
150
150
220
6.8
10
15
22
22
33
33
47
47
68
100
150
4.7
6.8
10
15
15
22
33
33
47
68
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
D
C
D
D
E
D
E
E
C
C
C
C
D
D
D
E
E
E
893D106(1)010C(2)
893D156(1)010C(2)
893D226(1)010C(2)
893D336(1)010C(2)
893D336(1)010D(3)
893D476(1)010C(2)
893D476(1)010D(3)
893D686(1)010D(3)
893D686(1)010E(3)
893D107(1)010D(3)
893D157(1)010D(3)
893D157(1)010E(3)
893D227(1)010E(3)
893D685(1)016C(2)
893D106(1)016C(2)
893D156(1)016C(2)
893D226(1)016C(2)
893D226(1)016D(3)
893D336(1)016C(2)
893D336(1)016D(3)
893D476(1)016D(3)
893D476(1)016E(3)
893D686(1)016D(3)
893D107(1)016E(3)
893D157(1)016E(3)
893D475(1)020C(2)
893D685(1)020C(2)
893D106(1)020C(2)
893D156(1)020C(2)
893D156(1)020D(3)
893D226(1)020D(3)
893D336(1)020D(3)
893D336(1)020E(3)
893D476(1)020E(3)
893D686(1)020E(3)
1.0
1.5
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10.0
15.0
15.0
22.0
1.1
1.6
2.4
3.5
3.5
5.3
5.3
7.5
7.5
10.9
16.0
24.0
0.9
1.4
2.0
3.0
3.0
4.4
6.6
6.6
9.4
13.6
16 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: X0, X9
(2) Terminations and packaging: 2TE3, 2WE3
(3) Terminations and packaging: 2TE3, 2WE3, 2DE3, 2RE3
Revision: 07-Nov-17
Document Number: 40008
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
893D
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
4
4
4
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
()
2.8
2.0
2.3
1.9
1.6
1.4
1.0
0.8
0.7
0.7
0.6
3.8
2.9
2.0
1.8
1.2
1.0
0.8
0.8
0.7
0.7
0.6
6.7
5.9
4.4
3.2
2.8
2.1
2.4
1.6
1.1
1.4
0.9
0.9
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.21
0.21
0.22
0.24
0.26
0.28
0.39
0.43
0.46
0.49
0.52
0.17
0.20
0.23
0.25
0.35
0.39
0.43
0.43
0.46
0.49
0.52
0.13
0.14
0.16
0.19
0.20
0.27
0.21
0.31
0.37
0.34
0.41
0.43
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
25 V
DC
AT +85 °C; 17 V
DC
AT +125 °C
2.2
2.2
3.3
4.7
6.8
10
10
15
22
22
33
1.5
2.2
3.3
4.7
4.7
6.8
10
10
15
15
22
0.47
0.68
1.0
1.5
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
C
D
C
C
C
C
D
D
D
E
E
C
C
C
C
D
D
D
E
D
E
E
C
C
C
C
C
D
C
D
D
E
D
E
893D225(1)025C(2)
893D225(1)025D(3)
893D335(1)025C(2)
893D475(1)025C(2)
893D685(1)025C(2)
893D106(1)025C(2)
893D106(1)025D(3)
893D156(1)025D(3)
893D226(1)025D(3)
893D226(1)025E(3)
893D336(1)025E(3)
893D155(1)035C(2)
893D225(1)035C(2)
893D335(1)035C(2)
893D475(1)035C(2)
893D475(1)035D(3)
893D685(1)035D(3)
893D106(1)035D(3)
893D106(1)035E(3)
893D156(1)035D(3)
893D156(1)035E(3)
893D226(1)035E(3)
893D474(1)050C(2)
893D684(1)050C(2)
893D105(1)050C(2)
893D155(1)050C(2)
893D225(1)050C(2)
893D225(1)050D(3)
893D335(1)050C(2)
893D335(1)050D(3)
893D475(1)050D(3)
893D475(1)050E(3)
893D685(1)050D(3)
893D685(1)050E(3)
0.6
0.6
0.8
1.2
1.7
2.5
2.5
3.8
5.5
5.5
8.3
0.5
0.8
1.2
1.6
1.6
2.4
3.5
3.5
5.3
5.3
7.7
0.5
0.5
0.5
0.8
1.1
1.1
1.7
1.7
2.4
2.4
3.4
3.4
35 V
DC
AT +85 °C; 23 V
DC
AT +125 °C
50 V
DC
AT +85 °C; 33 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: X0, X9
(2) Terminations and packaging: 2TE3, 2WE3
(3) Terminations and packaging: 2TE3, 2WE3, 2DE3, 2RE3
Revision: 07-Nov-17
Document Number: 40008
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
