MCM62973AFN18 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MCM62973AFN18

Preview

MCM62973AFN18: Description4K x 12 Bit Synchronous Static RAM; Categorystorage storage; File Size412KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM62973AFN18 Overview

4K x 12 Bit Synchronous Static RAM

MCM62973AFN18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	10 ns
Other features	OUTPUT REGISTER; SELF-TIMED WRITE
I/O type	SEPARATE
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
memory density	49152 bi
Memory IC Type	STANDARD SRAM
memory width	12
Number of functions	1
Number of terminals	44
word count	4096 words
character code	4000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX12
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum standby current	0.03 A
Minimum standby current	4.5 V
Maximum slew rate	0.17 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm

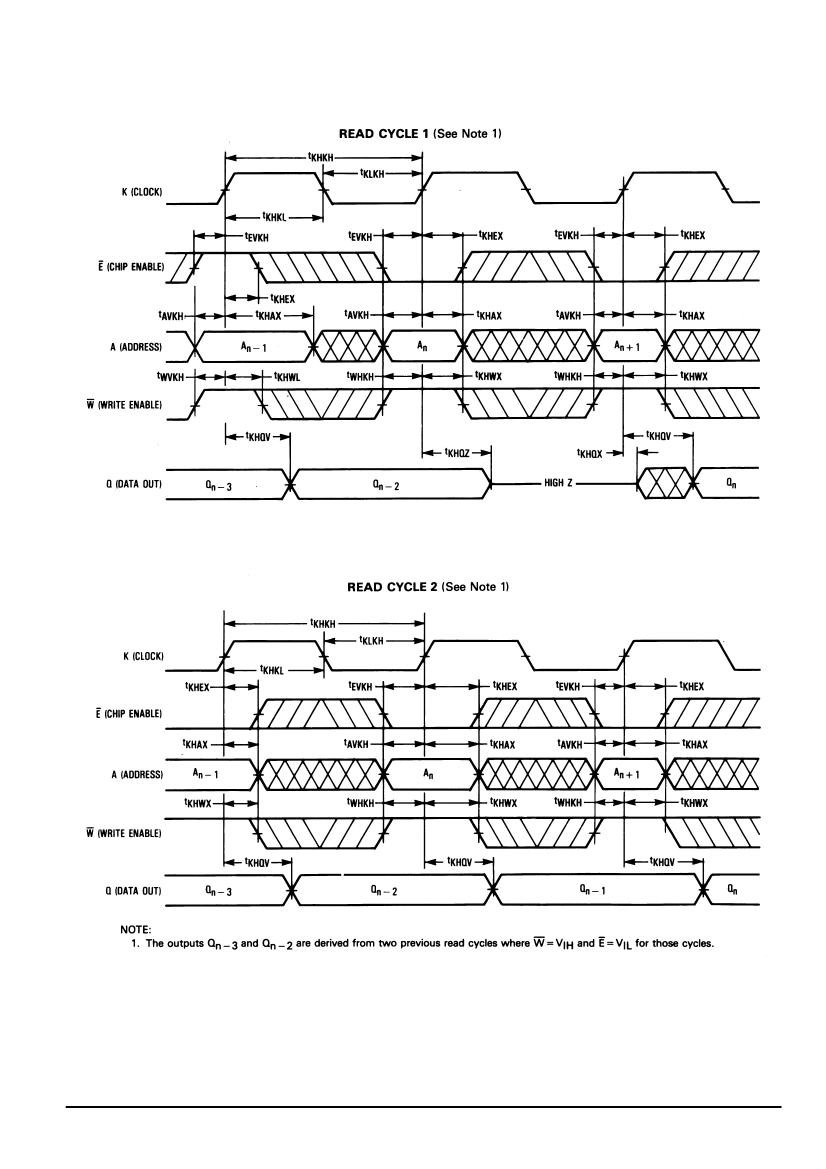

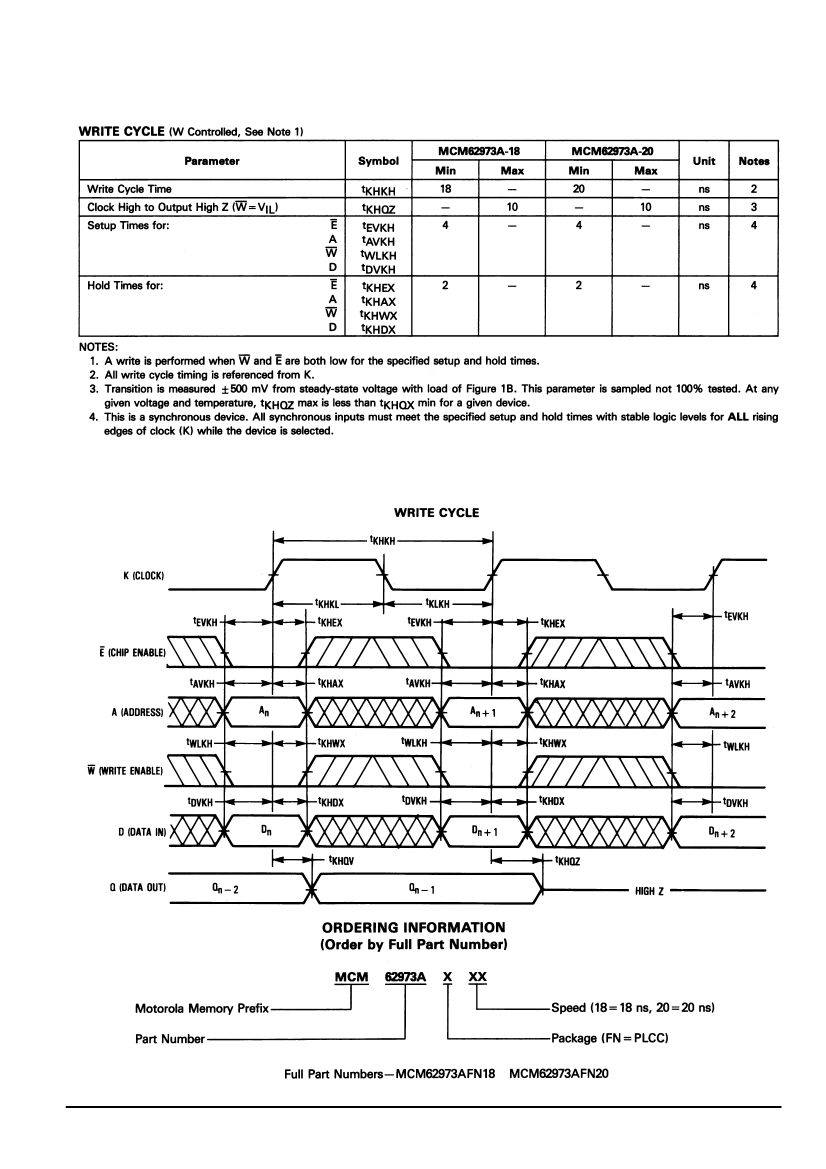

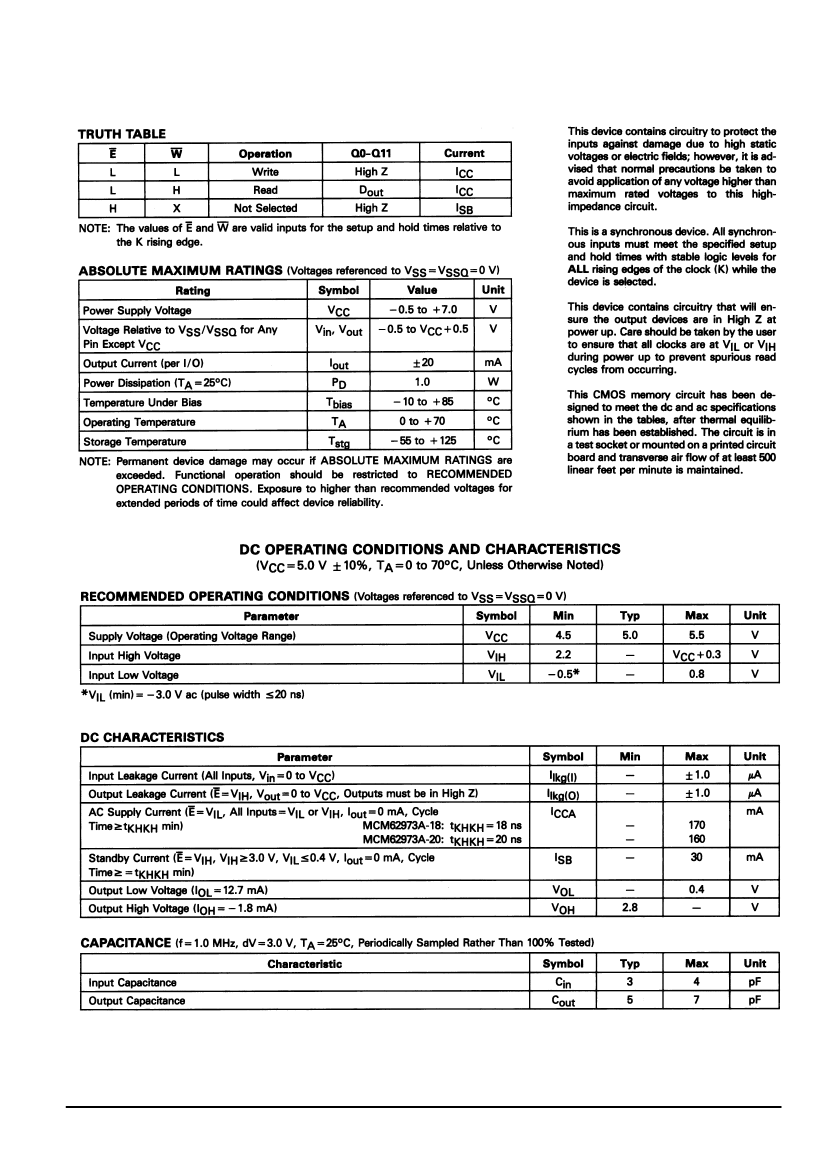

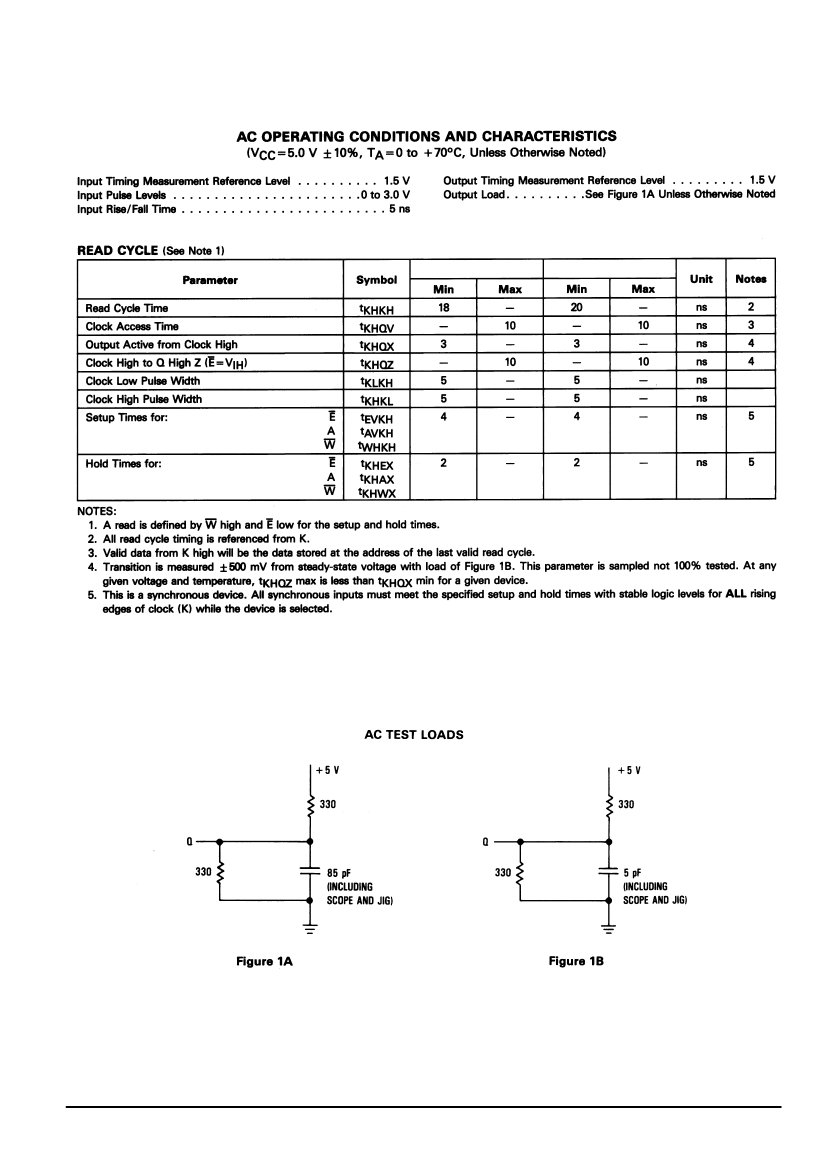

Preview

Download Datasheet

View All

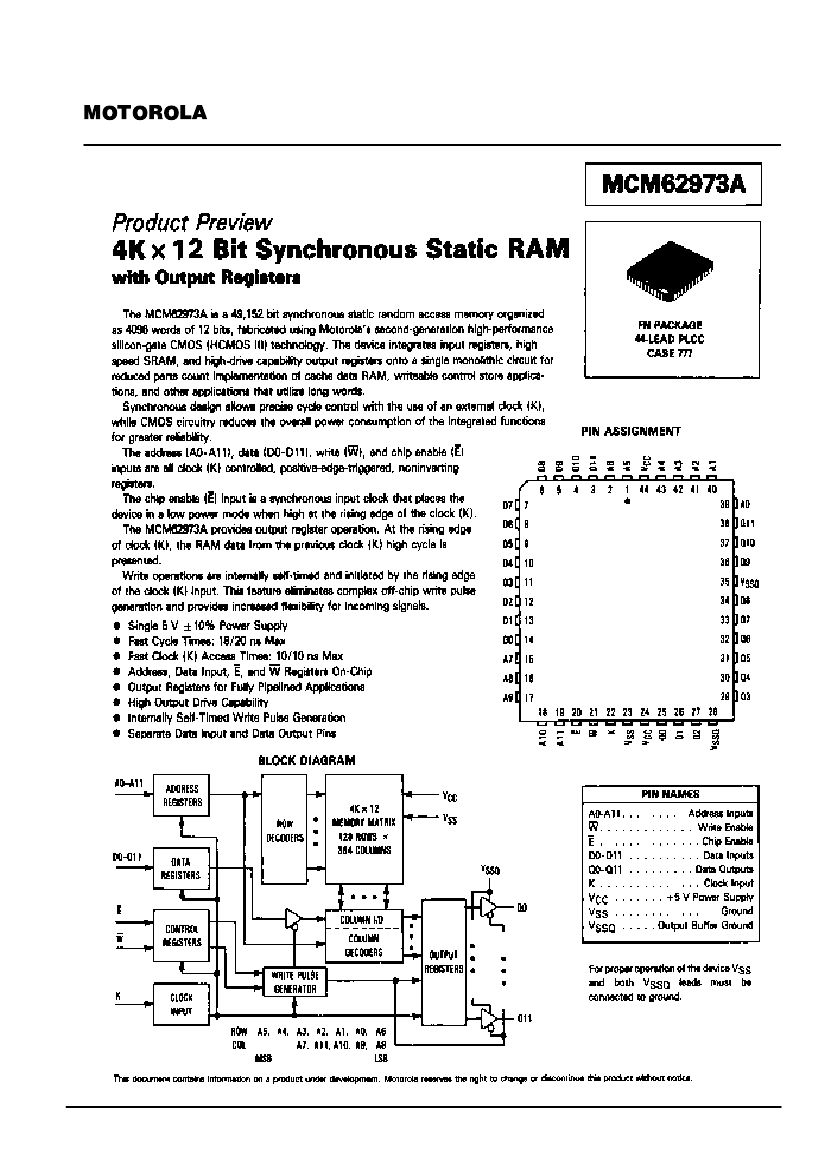

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

MOTOROLA FAST SRAM

MCM62973A

1

MCM62973AFN18 Related Products

	MCM62973AFN18	MCM62973A	MCM62973AFN20
Description	4K x 12 Bit Synchronous Static RAM	4K x 12 Bit Synchronous Static RAM	4K x 12 Bit Synchronous Static RAM
Is it Rohs certified?	incompatible	-	incompatible
Maker	Motorola ( NXP )	-	Motorola ( NXP )
package instruction	QCCJ, LDCC44,.7SQ	-	PLASTIC, LCC-44
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
Maximum access time	10 ns	-	10 ns
Other features	OUTPUT REGISTER; SELF-TIMED WRITE	-	OUTPUT REGISTER; SELF-TIMED WRITE
I/O type	SEPARATE	-	SEPARATE
JESD-30 code	S-PQCC-J44	-	S-PQCC-J44
JESD-609 code	e0	-	e0
length	16.5862 mm	-	16.5862 mm
memory density	49152 bi	-	49152 bi
Memory IC Type	STANDARD SRAM	-	STANDARD SRAM
memory width	12	-	12
Number of functions	1	-	1
Number of terminals	44	-	44
word count	4096 words	-	4096 words
character code	4000	-	4000
Operating mode	SYNCHRONOUS	-	SYNCHRONOUS
Maximum operating temperature	70 °C	-	70 °C
organize	4KX12	-	4KX12
Output characteristics	3-STATE	-	3-STATE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	QCCJ	-	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	-	LDCC44,.7SQ
Package shape	SQUARE	-	SQUARE
Package form	CHIP CARRIER	-	CHIP CARRIER
Parallel/Serial	PARALLEL	-	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	4.57 mm	-	4.57 mm
Maximum standby current	0.03 A	-	0.03 A
Minimum standby current	4.5 V	-	4.5 V
Maximum slew rate	0.17 mA	-	0.16 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	J BEND	-	J BEND
Terminal pitch	1.27 mm	-	1.27 mm
Terminal location	QUAD	-	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	16.5862 mm	-	16.5862 mm
