SP1008R-333H: DescriptionFixed Inductors RoHS, Surface Mount, Shielded Power Inductor, 33 uH , +/- 3%; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

SP1008R-333H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SP1008R-333H	-	-	View	Buy Now

SP1008R-333H Overview

Fixed Inductors RoHS, Surface Mount, Shielded Power Inductor, 33 uH , +/- 3%

SP1008R-333H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1008
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1008
structure	Shielded
core material	Ferrite
DC Resistance	4.9 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.41 mm
Package length	2.92 mm
Package form	SMT
Package width	2.66 mm
method of packing	TR, 7/13 Inch
Maximum rated current	0.152 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	3%
Base Number Matches	1

Preview

Download Datasheet

View All

er

w

Po

SERIES

SP1008R

SP1008

NG

TI )

RA A

T (m

EN UM

RR IM

CU AX

M

CE

AN )

ST S

SI HM

RE M (O

DC MU

XI

MA

H)

(µ

CE kHz

AN 0

CT 10

DU @

IN 0%

±1

s

or

ct

du

In

DA

SH

NU

E

MB

R*

-271K

-331K

-391K

-471K

-561K

-681K

-821K

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

-333K

-393K

-473K

-563K

-683K

-823K

-104K

Actual Size

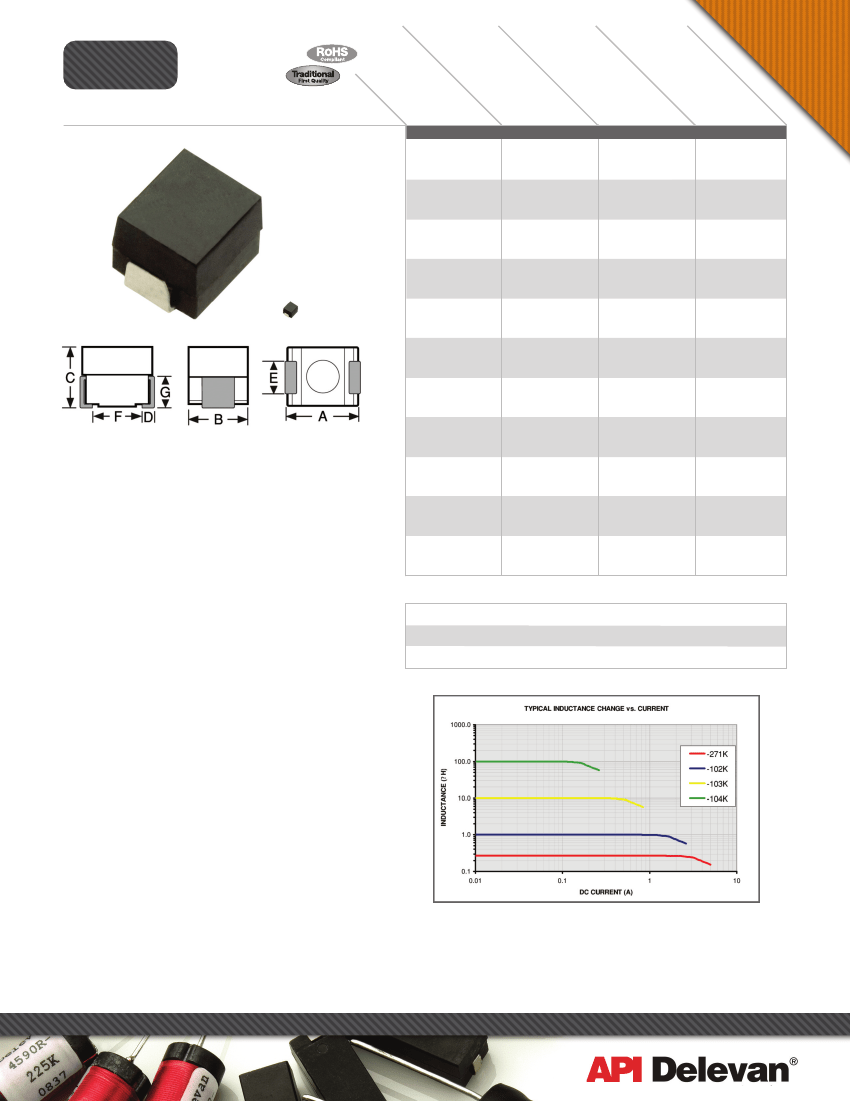

Shielded Surface Mount Power Inductors

Physical Parameters

Inches

Millimeters

A

0.095 to 0.115

2.41 to 2.92

B

0.085 to 0.105

2.16 to 2.66

C

0.0755 to 0.095

1.91 to 2.41

D

0.010 to 0.030

0.26 tp 0.76

E

0.040 to 0.060

1.02 to 1.52

F

0.060 (Ref. only)

1.52 (Ref. only)

G

0.045 (Ref. only)

1.14 (Ref. only)

Dimensions "A" and "C" are over terminals.

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Inductance

Measured at 1V with no DC current

Incremental Current

The current at which the inductance

will be decreased by a maximum of 5% from its initial 0

ADC value.

Marking

SMD; dash number with tolerance letter followed

by a P; date code (YYWWL). Note: An R before the date

code indicates a RoHS component.

Example: SP1008-104K

SMD

104KP

0925A

Packaging

Tape & reel (8mm): 7" reel, 2000 pieces

max.; 13" reel, 7000 pieces max.

Coupling 5% Typical (Ref. M83446, 1mm spacing)

Made In the U.S.A.

SERIES SP1008 FERRITE CORE

0.270

0.099

0.330

0.108

0.390

0.118

0.470

0.128

0.560

0.147

0.680

0.157

0.820

0.167

1.00

0.228

1.20

0.252

1.50

0.288

1.80

0.392

2.20

0.437

2.70

0.482

3.30

0.527

3.90

0.739

4.70

0.817

5.60

0.895

6.80

1.43

8.20

1.54

10.0

1.70

12.0

1.87

15.0

2.10

18.0

2.88

22.0

4.02

27.0

4.50

33.0

4.90

39.0

5.30

47.0

5.90

56.0

6.40

68.0

9.00

82.0

9.90

100

10.9

1070

1030

980

941

878

850

824

705

671

627

538

509

485

465

392

372

356

282

271

258

246

232

198

168

159

152

146

139

133

112

107

102

Optional Tolerances: J = 5% H = 3% G = 2%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
